Seat Cushion Ventilation Heating And Cooling Module - Driver (KB6)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

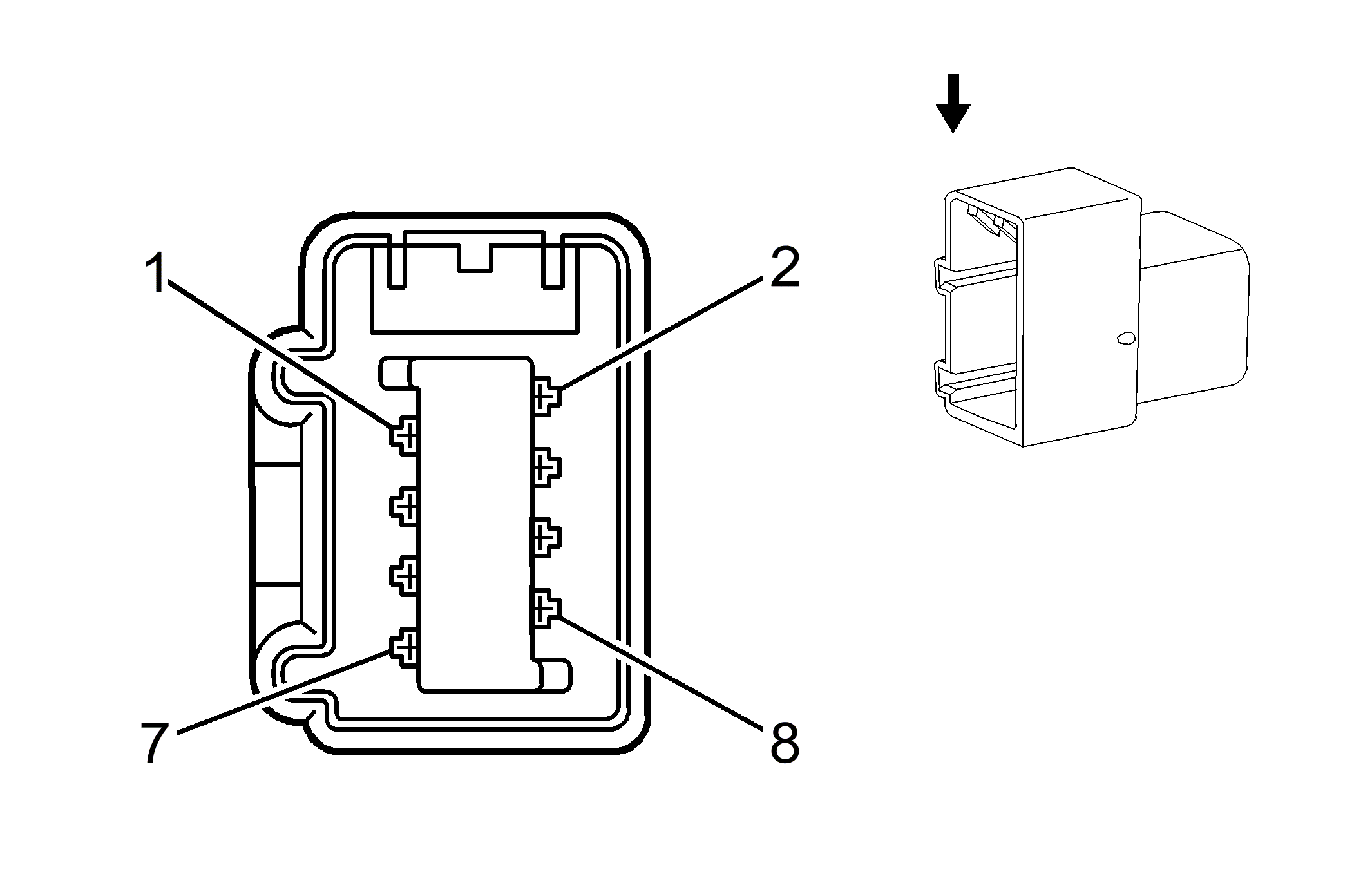

Fig 1: Seat Cushion Ventilation Heating And Cooling Module - Driver (KB6) Connector End View
GM1664607Courtesy of GENERAL MOTORS CORP.
Seat Cushion Ventilation Heating and Cooling Module - Driver (KB6)

Pin Wire Circuit Function
1 1 D-GN 6195 Driver Seat Cushion Heated/Cool Ventilation Module Heat Control
2 0.35 D-GN 5918 Driver Seat Blower Voltage Reference
3 1 PU 6196 Driver Seat Cushion Heated/Cool Ventilation Module Cool Control
4 0.35 GY 5912 Low Reference
5 0.35 YE/BK 2079 Driver Seat Cushion Temperature Sensor Signal
6 - - Not Used
7 0.35 OG 7009 Driver Seat Cushion Blower Speed Control
8 0.35 YE 2080 Low Reference
Connector Part Information
  • Harness Type: Driver Seat
  • OEM Connector: E3578-003
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 8-Way M (BK)
Terminal Part Information
  • Terminated Lead: 13575818
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-3 (GY)
  • Terminal/Tray: Pins: 1, 3 - 7114-4101-08/9
  • Terminal/Tray: Pins: 2, 4, 5, 7, 8 - 7114-4100-08/9
  • Core/Insulation Crimp: Pins: 1, 3 - C/A
  • Core/Insulation Crimp: Pins: 2, 4, 5, 7, 8 - E/C
