Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Transfer washer pumps and level indicator to the new washer solvent container (2).

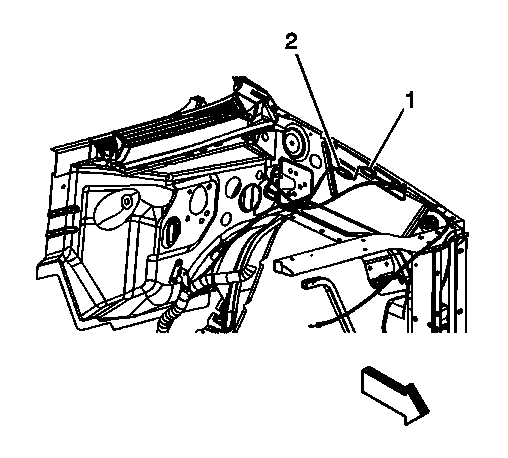

- Install the windshield washer container assembly (2).
- Install the upper windshield washer container bolt to the auxiliary battery tray, if equipped.

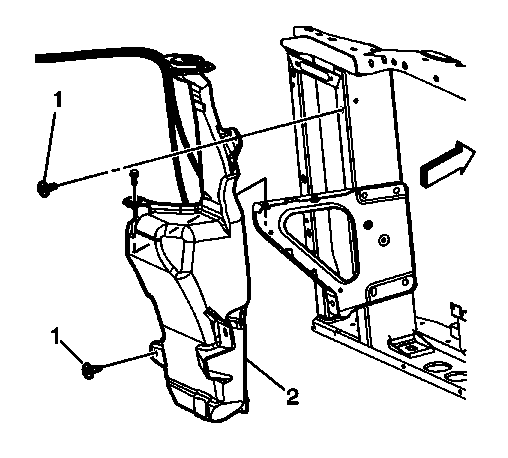

- Install the upper windshield washer solvent container bolts and tighten to 9 N.m (80 lb in).
- Install the auxiliary battery tray, if equipped. Refer to Auxiliary Battery Tray Replacement .
- Install the battery tray, if working on a HYBRID (HP2). Refer to Battery Tray Replacement .
- Install the windshield washer solvent cap.
- Connect the electrical connectors.
- Connect the washer pump hoses (1, 2). Refer to Windshield Washer Hose Replacement .

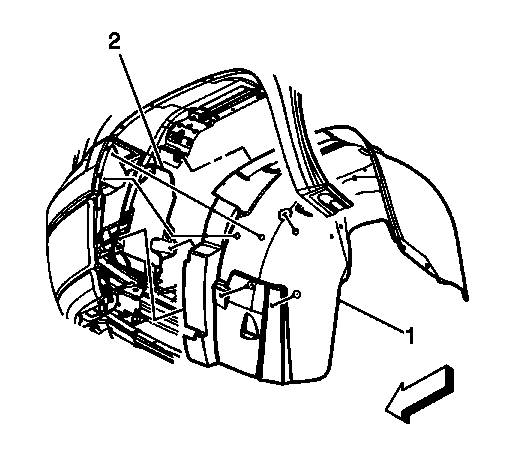

- Install the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Left Side .
- Install the left front wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Fill the washer solvent container with windshield solvent. Refer to Fluid and Lubricant Recommendations .
CAUTION:
Refer to Fastener Caution .
