Digital Radio Antenna Cable Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

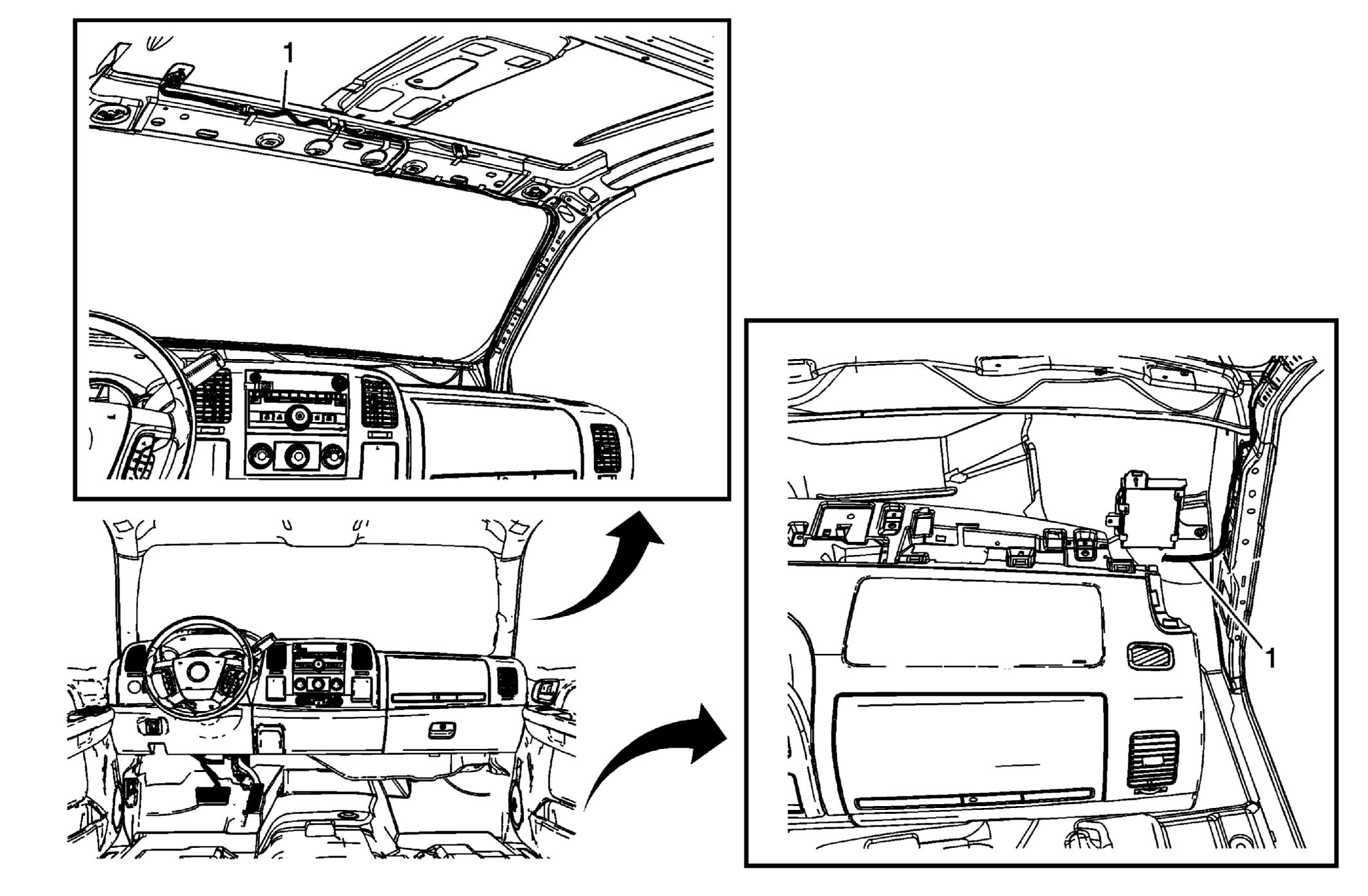

Fig 1: View Of Digital Radio Coaxial Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the front of the headliner. Refer to Headlining Trim Panel Replacement (LWB w/U42 w/o CF5) , Headlining Trim Panel Replacement (LWB w/CJ2) , Headlining Trim Panel Replacement (SWB w/o CF5 and U42) , Headlining Trim Panel Replacement (LWB w/CJ3) , Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CF5 w/o U42) , Headlining Trim Panel Replacement (SWB w/CF5 w/o U42) , Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/U24 w/o CF5) , Headlining Trim Panel Replacement (LWB w/CF5 and U42) , Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CF5 and U42) , Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CJ3) , Headlining Trim Panel Replacement (SWB w/CF5 and U42) , Headlining Trim Panel Replacement (SWB w/U42 w/o CF5) , Headlining Trim Panel Replacement (LWB w/CF5 w/o U42) , Headlining Trim Panel Replacement (SWB w/CJ3) , Headlining Trim Panel Replacement (Avalanche w/CJ2 w/o CF5 and U42) . Remove the upper instrument panel (I/P) defroster grille. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Cadillac) , Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Except Cadillac) . Remove the right I/P side cover. Refer to cell Instrument Panel Outer Trim Cover Replacement (Except Cadillac) , Instrument Panel Outer Trim Cover Replacement (Cadillac) . Lower the I/P compartment door. Refer to Instrument Panel Compartment Door Replacement (Except Cadillac) , Instrument Panel Compartment Door Replacement (Cadillac) .
1	Digital Radio Coaxial Cable If the digital antenna cable is taped in the roof wiring harness then just cut the ends off at the digital receiver and the antenna connection and route the new harness next to the old and use tie straps as needed to secure routing. If needed use a piece of mechanics wire or suitable equivalent to route new cable through windshield pillar and I/P area.

Callout

Component Name

Preliminary Procedure

Lower the front of the headliner. Refer to Headlining Trim Panel Replacement (LWB w/U42 w/o CF5) , Headlining Trim Panel Replacement (LWB w/CJ2) , Headlining Trim Panel Replacement (SWB w/o CF5 and U42) , Headlining Trim Panel Replacement (LWB w/CJ3) , Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CF5 w/o U42) , Headlining Trim Panel Replacement (SWB w/CF5 w/o U42) , Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/U24 w/o CF5) , Headlining Trim Panel Replacement (LWB w/CF5 and U42) , Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CF5 and U42) , Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CJ3) , Headlining Trim Panel Replacement (SWB w/CF5 and U42) , Headlining Trim Panel Replacement (SWB w/U42 w/o CF5) , Headlining Trim Panel Replacement (LWB w/CF5 w/o U42) , Headlining Trim Panel Replacement (SWB w/CJ3) , Headlining Trim Panel Replacement (Avalanche w/CJ2 w/o CF5 and U42) .
Remove the upper instrument panel (I/P) defroster grille. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Cadillac) , Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Except Cadillac) .
Remove the right I/P side cover. Refer to cell Instrument Panel Outer Trim Cover Replacement (Except Cadillac) , Instrument Panel Outer Trim Cover Replacement (Cadillac) .
Lower the I/P compartment door. Refer to Instrument Panel Compartment Door Replacement (Except Cadillac) , Instrument Panel Compartment Door Replacement (Cadillac) .

Digital Radio Coaxial Cable

If the digital antenna cable is taped in the roof wiring harness then just cut the ends off at the digital receiver and the antenna connection and route the new harness next to the old and use tie straps as needed to secure routing.
If needed use a piece of mechanics wire or suitable equivalent to route new cable through windshield pillar and I/P area.
