USB Receptacle Replacement (Without SLT)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

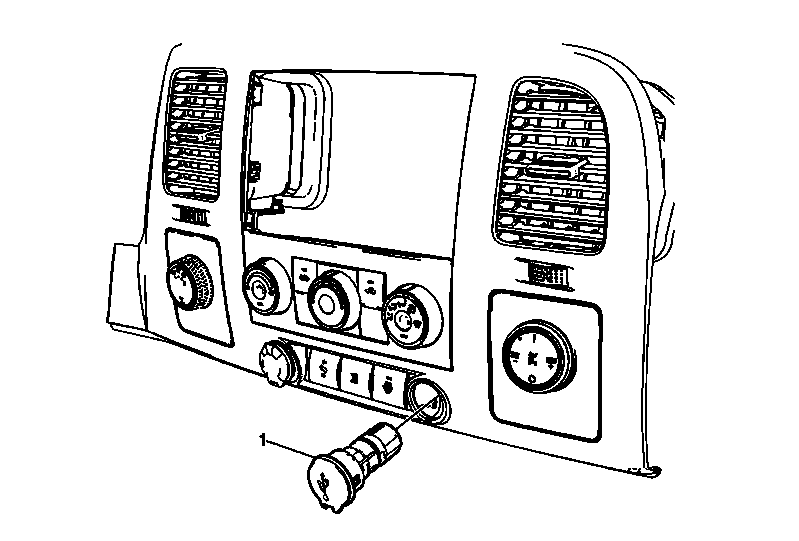

Fig 1: USB Receptacle (Without SLT)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) , Instrument Panel Accessory Trim Plate Replacement (Cadillac)
1	USB Receptacle Procedure Disconnect the electrical connector. Release the tabs and gently remove the receptacle by pushing forward from the trim plate.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) , Instrument Panel Accessory Trim Plate Replacement (Cadillac)

USB Receptacle

Procedure

Disconnect the electrical connector.
Release the tabs and gently remove the receptacle by pushing forward from the trim plate.
