Liftgate Close Actuator Motor Control Module Replacement (Except Avalanche and Escalade EXT)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

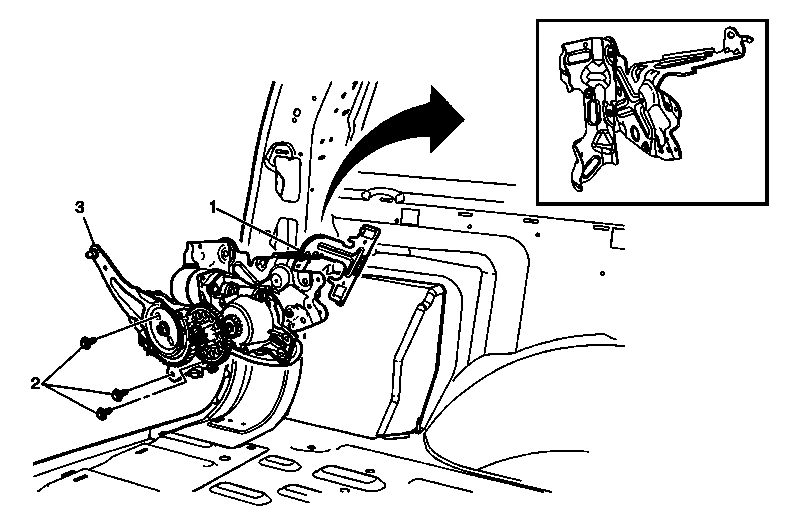

Fig 1: View Of Liftgate Actuator Drive Unit Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the bodyside trim panel. Refer to Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/o E61) , Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/o E61) . Disconnect the power liftgate actuator rod. Refer to Liftgate Actuator Rod Replacement (Except Avalanche and EXT Escalade) .
1	Liftgate Close Actuator Motor Control Module Procedure Disconnect the electrical connector. Cut the tie strap, if equipped.
2	Liftgate Close Actuator Motor Control Module Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Liftgate Close Actuator Motor Control Module Procedure If a replacement control module is installed, program the module. Refer to Control Module References .
