Remote Control Door Lock Receiver Antenna Replacement (Escalade)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

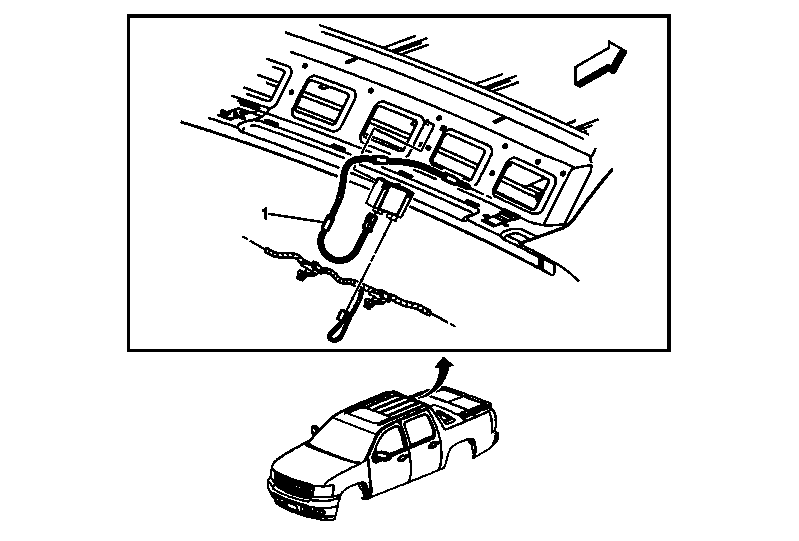

Fig 1: Remote Control Door Lock Receiver Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable roof rail SIR system. Refer to SIR Disabling and Enabling . Remove body side lock pillar garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement (Standard Wheelbase) , Body Lock Pillar Garnish Molding Replacement (Avalanche/Escalade EXT) , Body Lock Pillar Garnish Molding Replacement (Extended Wheelbase) . Remove rear upper garnish molding. Refer to Rear Upper Garnish Molding Replacement (Avalanche/Escalade EXT) .
1	Remote Control Door Lock Receiver Antenna Procedure Disconnect the antenna from the remote control door lock receiver. Note the routing of the antenna.

Callout

Component Name

Preliminary Procedures

Disable roof rail SIR system. Refer to SIR Disabling and Enabling .
Remove body side lock pillar garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement (Standard Wheelbase) , Body Lock Pillar Garnish Molding Replacement (Avalanche/Escalade EXT) , Body Lock Pillar Garnish Molding Replacement (Extended Wheelbase) .
Remove rear upper garnish molding. Refer to Rear Upper Garnish Molding Replacement (Avalanche/Escalade EXT) .

Remote Control Door Lock Receiver Antenna

Procedure

Disconnect the antenna from the remote control door lock receiver.
Note the routing of the antenna.
