Remote Control Door Lock Receiver Replacement (Except Avalanche/Escalade EXT)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 GMC Yukon XL, 2012 GMC Yukon, 2012 Chevrolet Tahoe, 2012 Chevrolet Suburban, and 2012 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

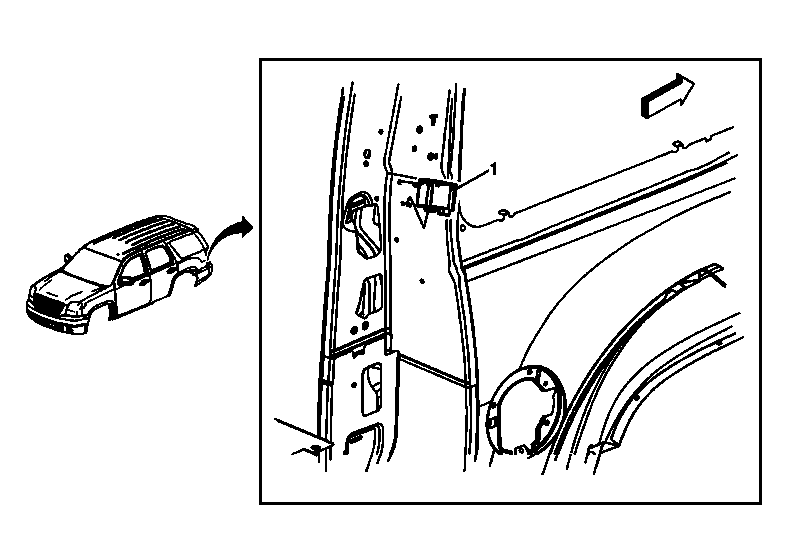

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the back rear corner upper garnish molding. Refer to Body Rear Corner Garnish Molding Replacement - Left Side (With E61) , Body Rear Corner Garnish Molding Replacement - Left Side (Without E61) .
1	Remote Control Door Lock Receiver Procedure The module slides and snaps into the body structure. Disconnect the antenna and electrical connector. If a replacement module is installed, program the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the back rear corner upper garnish molding. Refer to Body Rear Corner Garnish Molding Replacement - Left Side (With E61) , Body Rear Corner Garnish Molding Replacement - Left Side (Without E61) .

Remote Control Door Lock Receiver

Procedure

The module slides and snaps into the body structure.
Disconnect the antenna and electrical connector.
If a replacement module is installed, program the module. Refer to Control Module References .
