Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

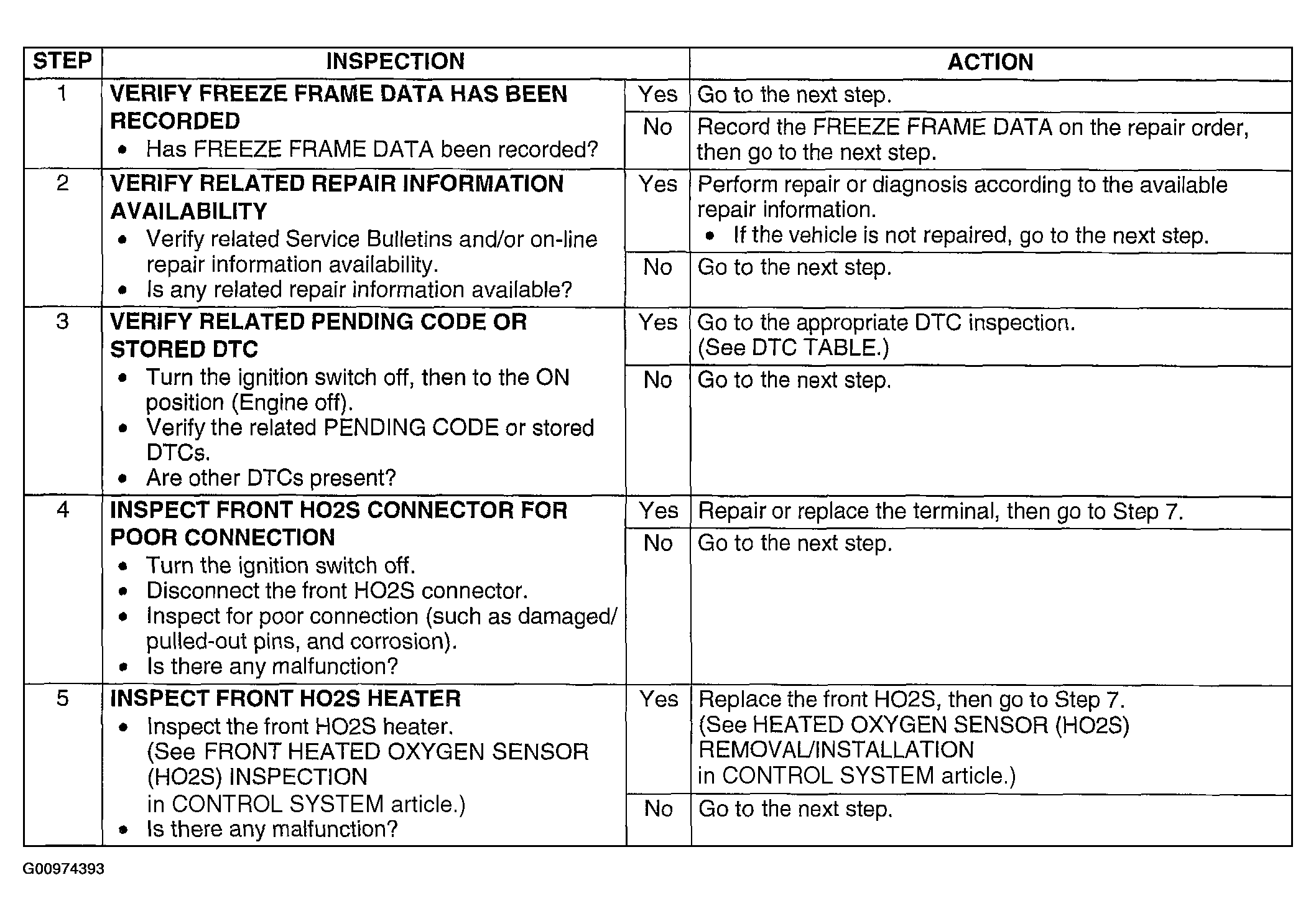

Fig 1: DTC P0030: Diagnostic Procedure Chart (Steps 1-5)
G00974393Courtesy of MAZDA MOTORS CORP.

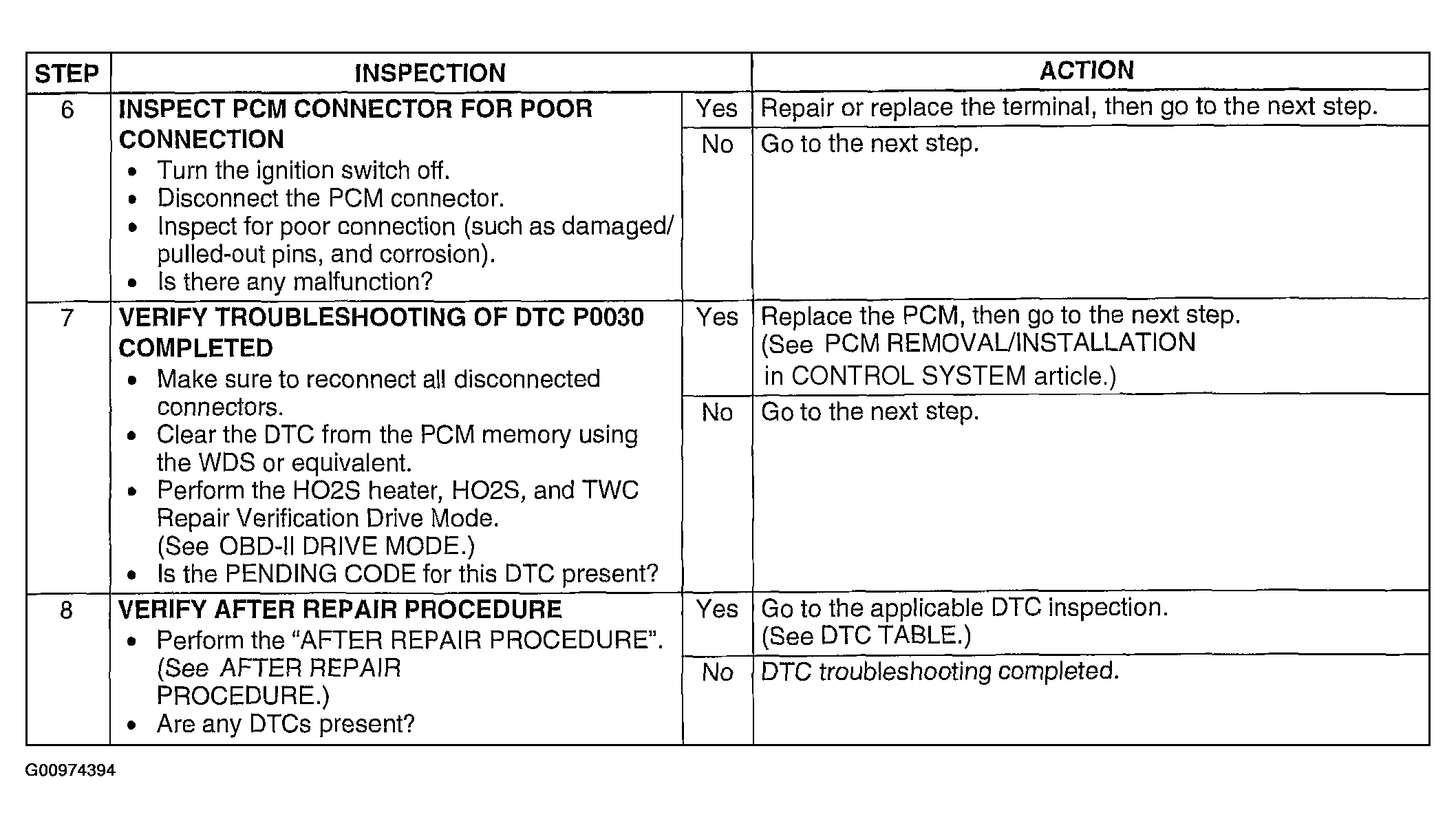

Fig 2: DTC P0030: Diagnostic Procedure Chart (Steps 6-8)
G00974394Courtesy of MAZDA MOTORS CORP.
