Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

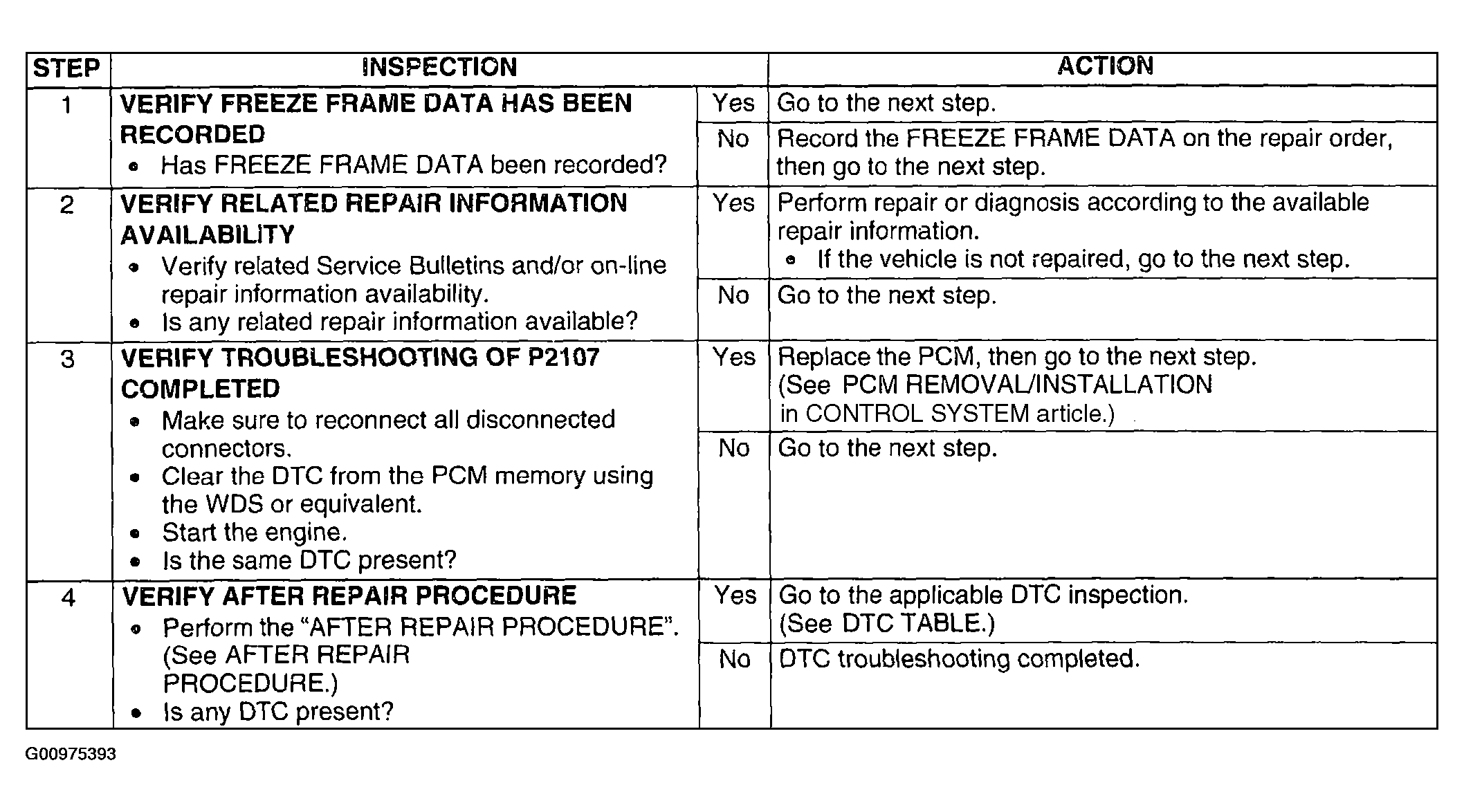

Fig 1: DTC P2107: Diagnostic Procedure Chart (Steps 1-4)
G00975393Courtesy of MAZDA MOTORS CORP.
