For California Emission Regulation Applicable Model

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Follow "BEFORE SERVICE PRECAUTION" before performing any work operations to prevent fuel from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION .)
  2. Disconnect the negative battery cable.
  3. Remove the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

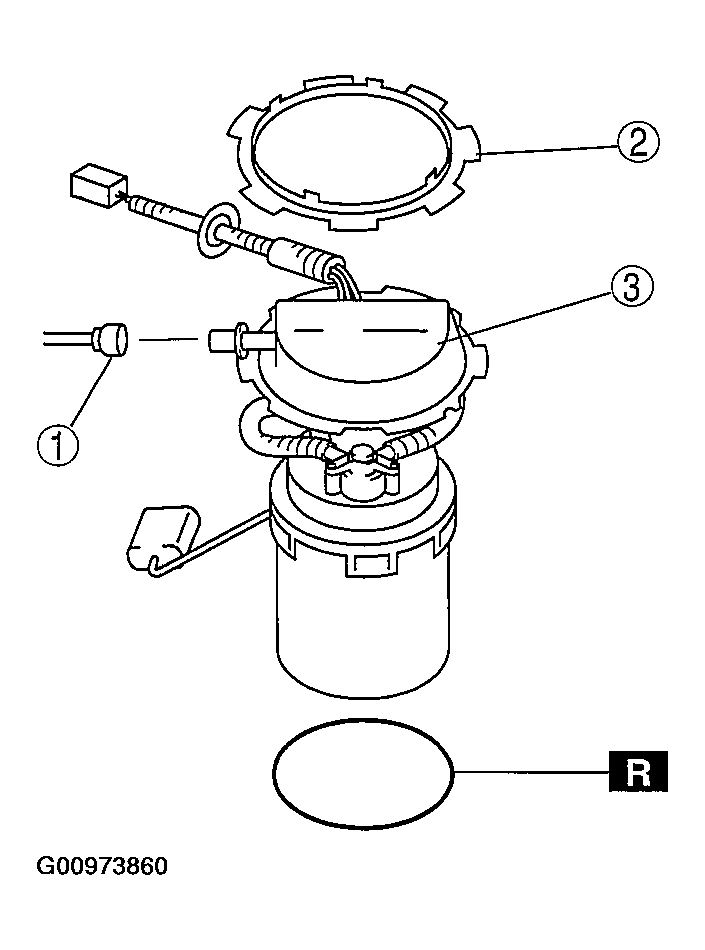

    Fig 1: Removing/Installing Fuel Pump Unit - For California Emission Regulation Applicable Model
    G00973860Courtesy of MAZDA MOTORS CORP.

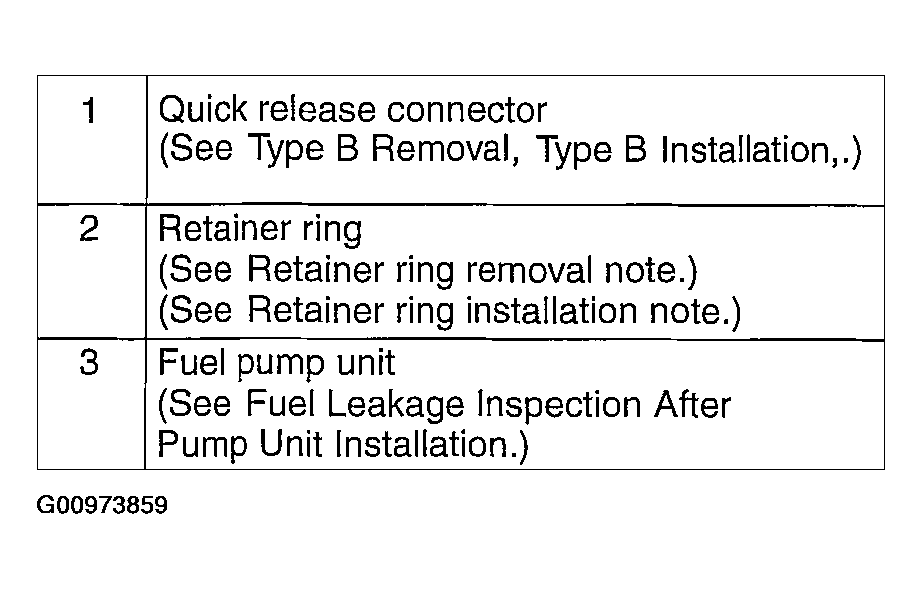

    Fig 2: Removal Order Of Fuel Pump Unit - For California Emission Regulation Applicable Model
    G00973859Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Inspect all related parts by performing "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
