Retainer ring installation note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Tap a retainer ring projection using a flathead screwdriver as shown in the figure and tighten the retainer until it is fixed in place.

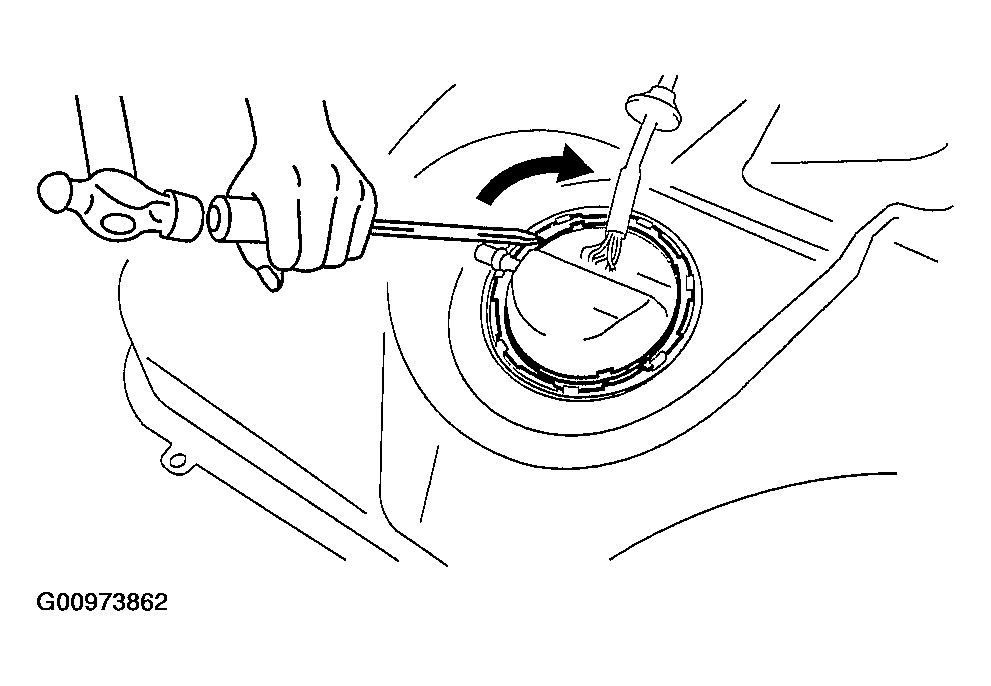

Fig 1: Installing Retainer Ring
Courtesy of MAZDA MOTORS CORP.
