Pinion Shaft and Valve Housing Component Assembly Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

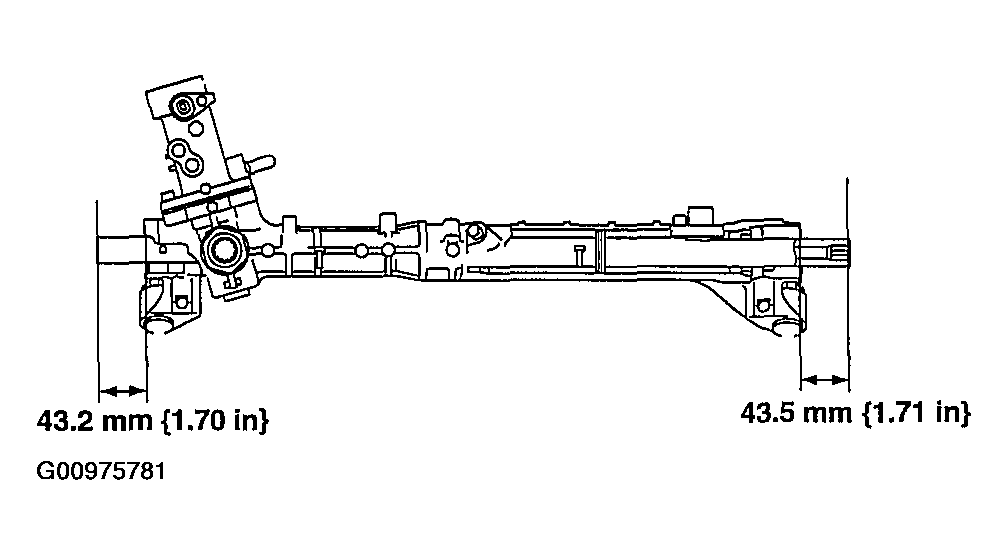

Set the rack in the center with the measurement between rack housing end and rack end as shown in the figure.

Fig 1: Centering Rack In Housing
Courtesy of MAZDA MOTORS CORP.

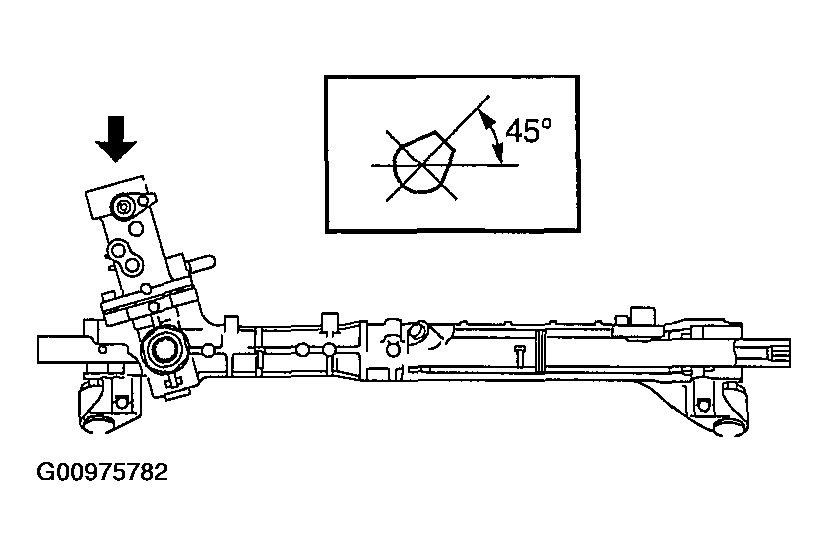

When the pinion shaft position is as shown in the figure with the rack in the center, insert the pinion shaft and valve housing component.

Fig 2: Locating Pinion Shaft Position For Inserting Pinion Shaft & Valve Housing Component
Courtesy of MAZDA MOTORS CORP.
