Front Fog Light Bulb Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Slightly bend back the mudguard.

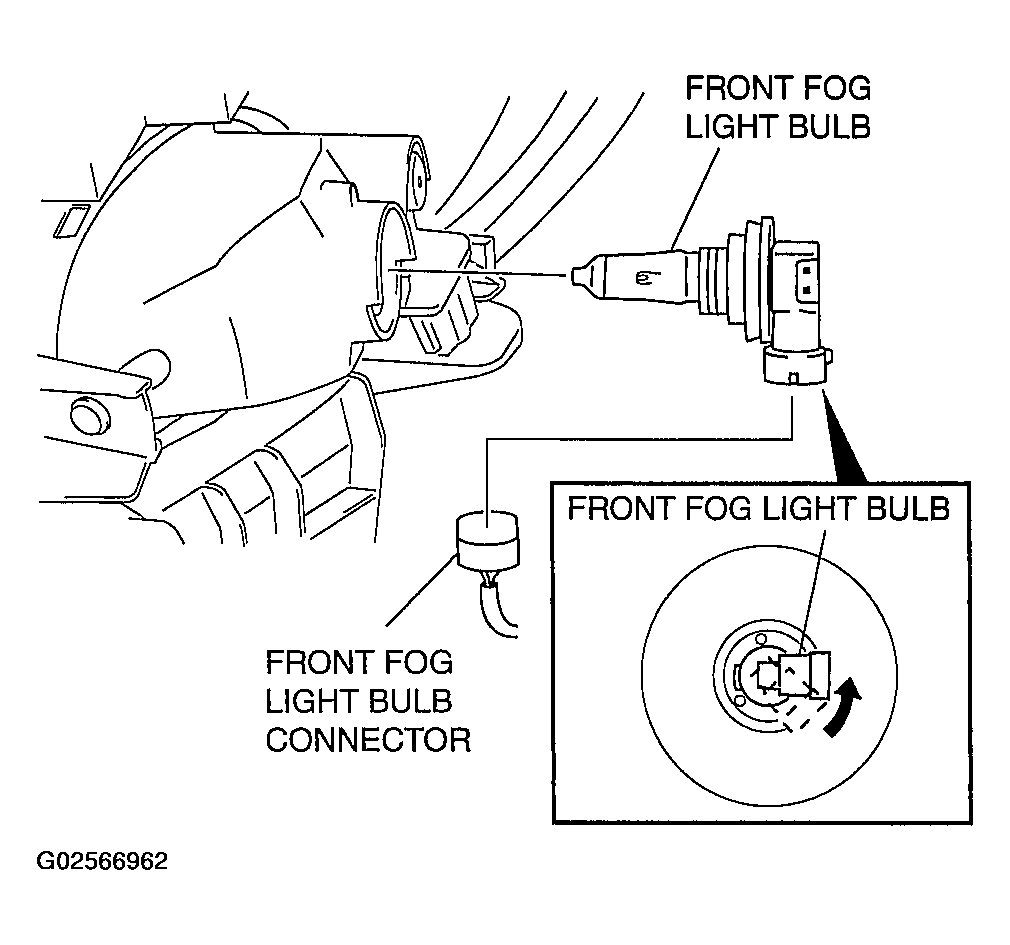

- Disconnect the front fog light bulb connector and remove the front fog light bulb by turning it in the direction of the arrow.CAUTION:
- A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When handling the bulb, hold the flange, not the glass.
- Install in the reverse order of removal.
