License Plate Light Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the lens, then remove the license plate light bulb.
  3. Remove the license plate light from the rear bumper.
  4. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  5. Remove the fasteners and slightly bend back the trunk side trim (RH).
  6. Remove the fasteners and slightly bend back the trunk side trim (LH). (4 door)
  7. Remove the service hole cover (LH). (5 door)
  8. Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
  9. Disconnect the license plate light connector.
  10. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION .)

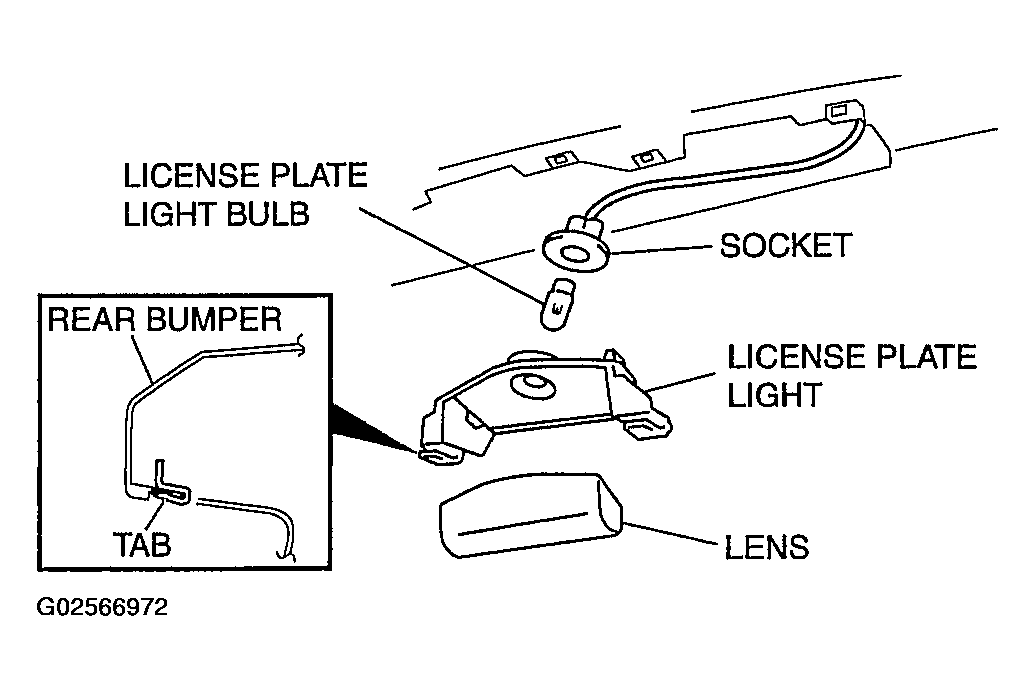

    Fig 1: Removing License Plate Light Bulb
    G02566972Courtesy of MAZDA MOTORS CORP.

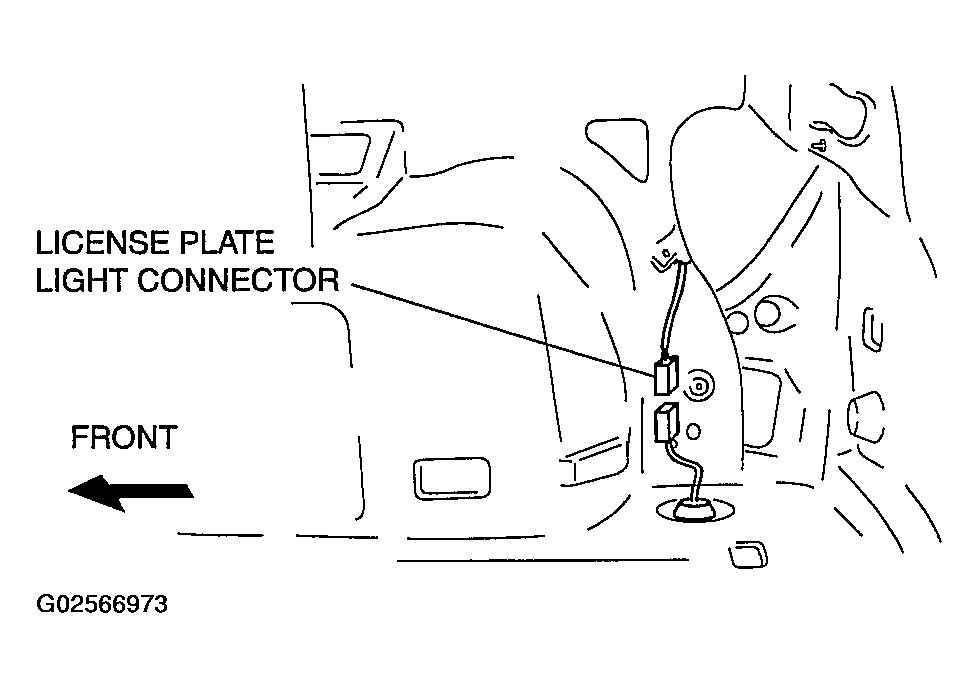

    Fig 2: Disconnecting License Plate Light Connector
    G02566973Courtesy of MAZDA MOTORS CORP.
  11. Detach the clips from the rear bumper.
  12. Remove the license plate light harness and tape.
  13. Install in the reverse order of removal.

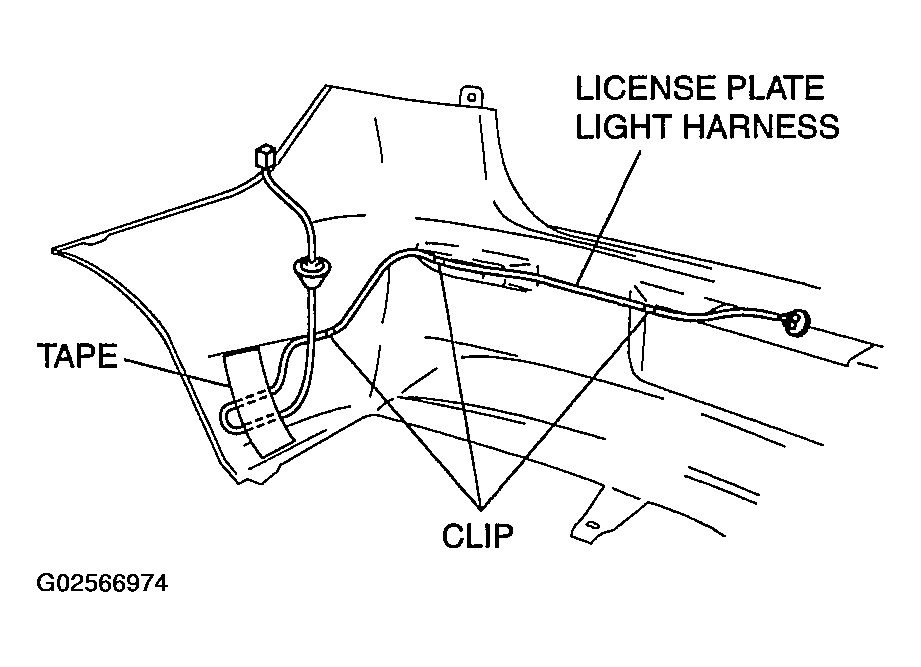

    Fig 3: Locating License Plate Harness & Clip
    G02566974Courtesy of MAZDA MOTORS CORP.
