Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the antenna assembly on the roof opening.
  2. Tighten the retaining nut.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    1. Tighten the nut to 6 N.m (53 lb in).

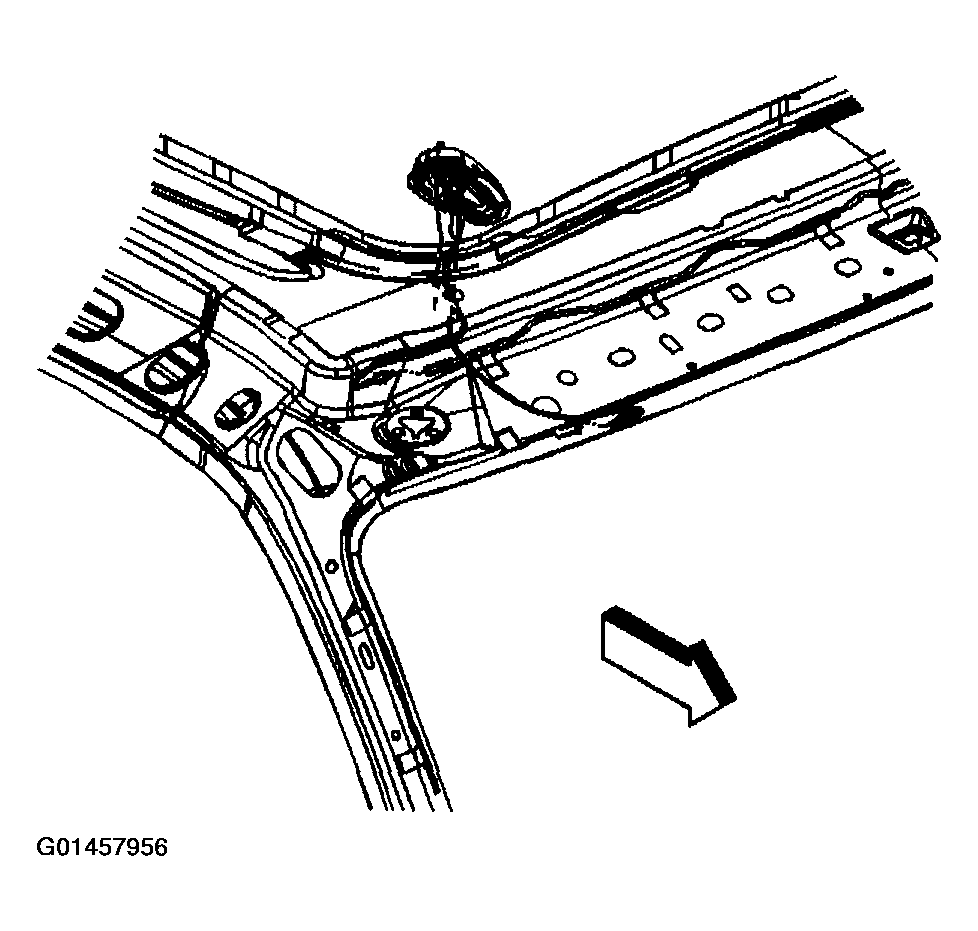

    3. Fig 1: Installing Cellular And Navigation Antenna Assembly
    G01457956Courtesy of GENERAL MOTORS CORP.
  3. Connect the antenna cables.
  4. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
