Body Control System Schematics (Power, Ground and Serial Data - 1 of 2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

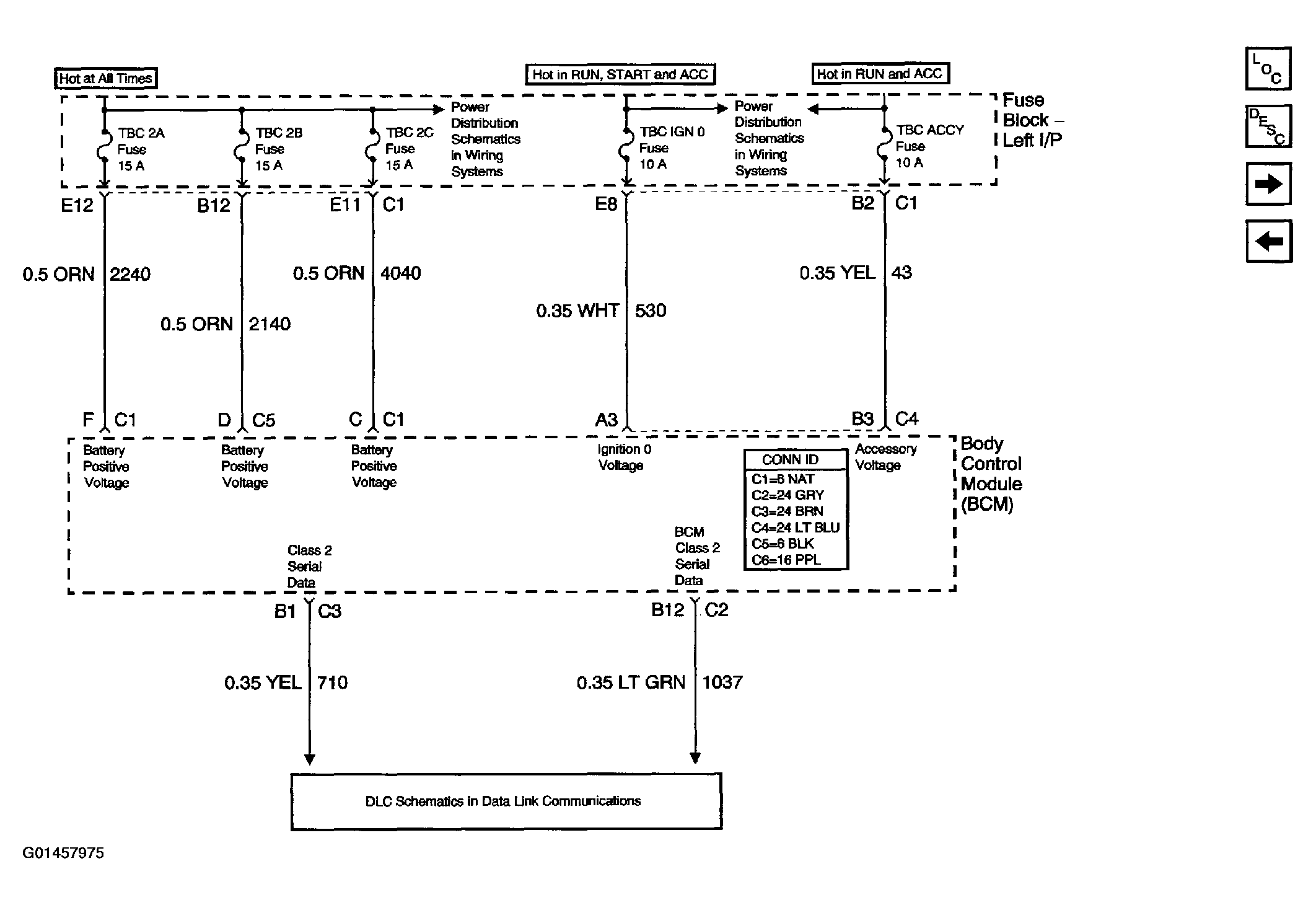

Fig 1: Body Control System Schematics Diagram (Power, Ground And Serial Data - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

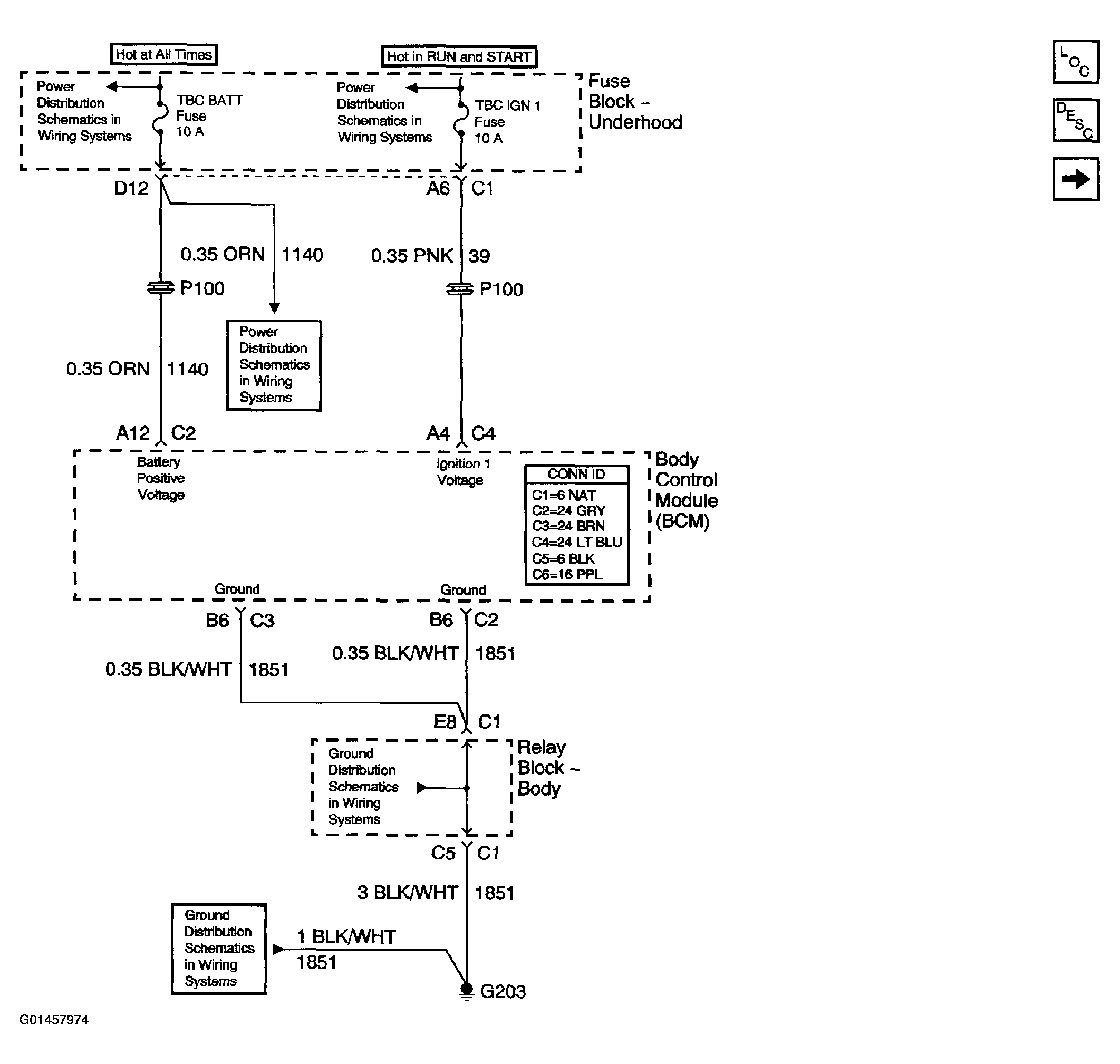

Fig 2: Body Control System Schematics Diagram (Power, Ground And Serial Data - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

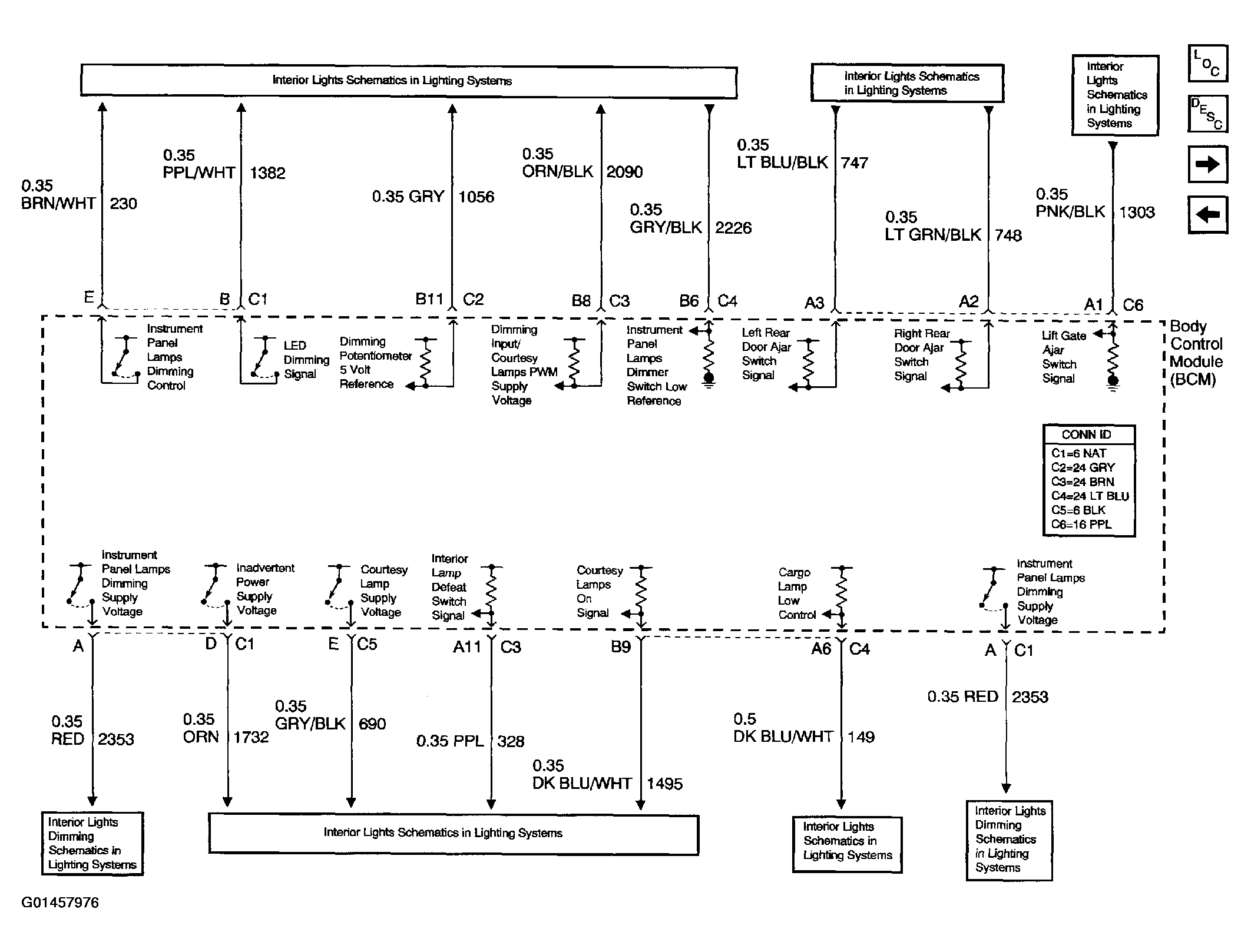

Fig 3: Body Control System Schematics Diagram (Interior Lights Systems References)

Courtesy of GENERAL MOTORS CORP.

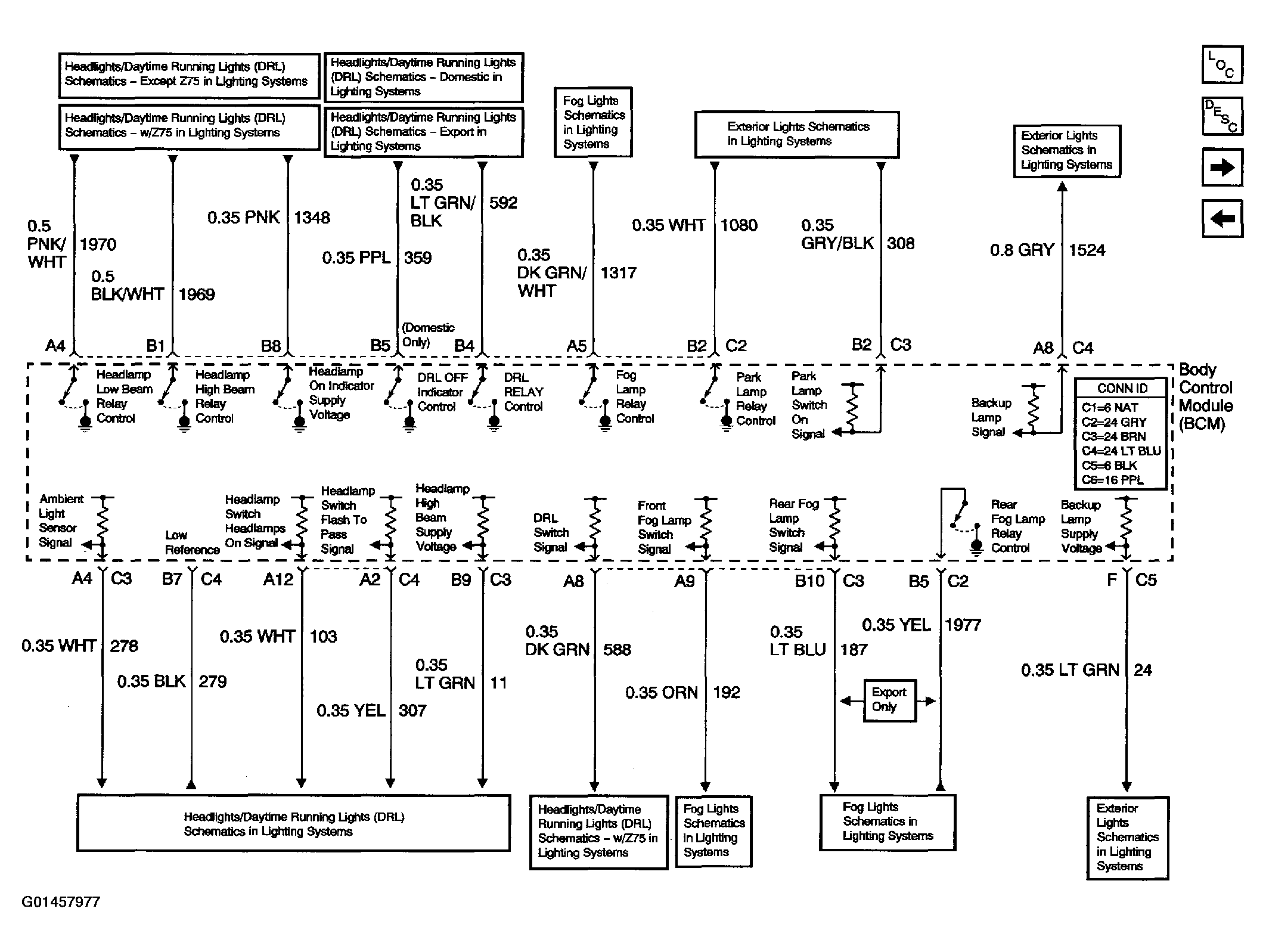

Fig 4: Body Control System Schematics Diagram (Exterior Lighting Systems References)

Courtesy of GENERAL MOTORS CORP.

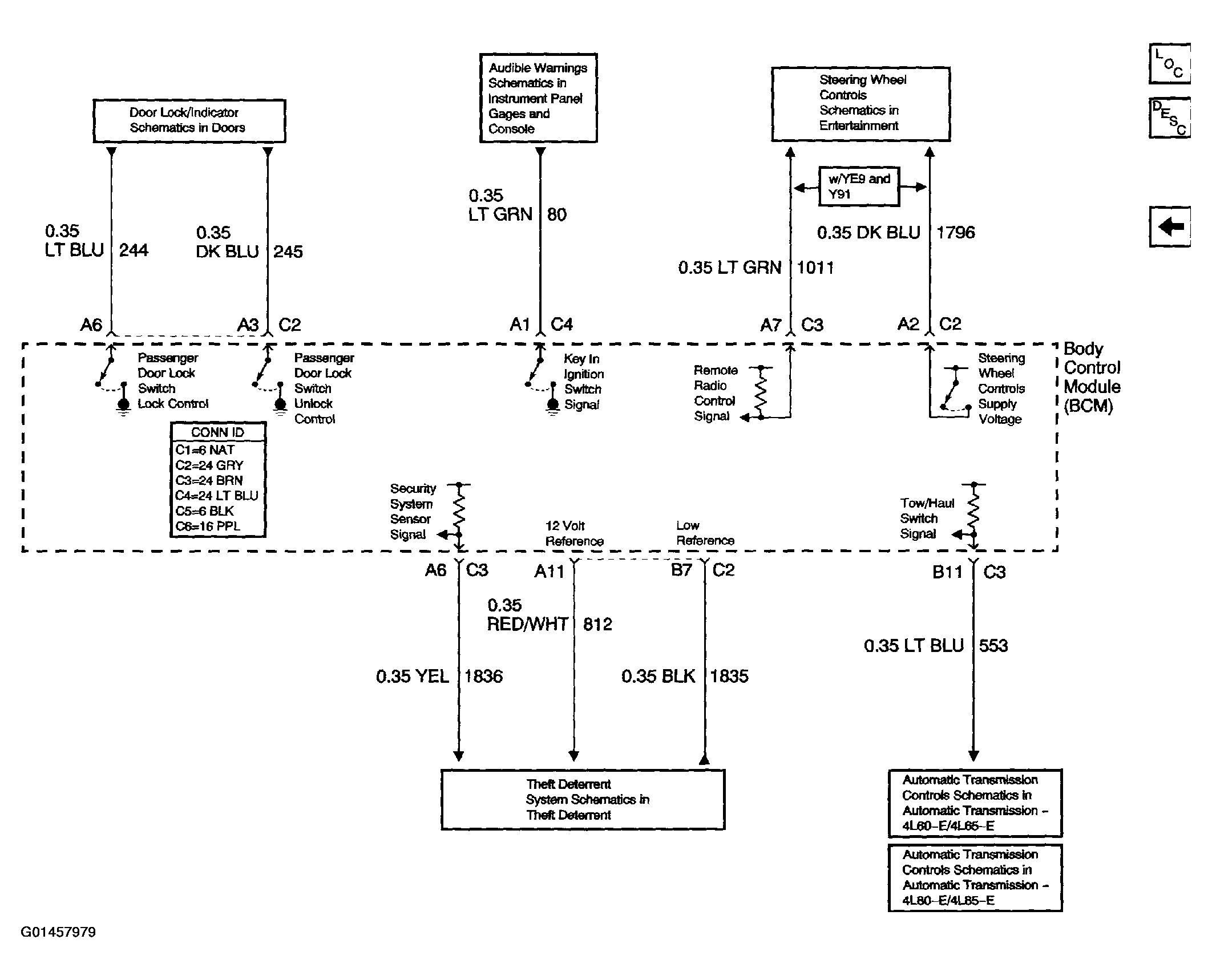

Fig 5: Body Control System Schematics Diagram (Controlled/Monitored Subsystem References - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

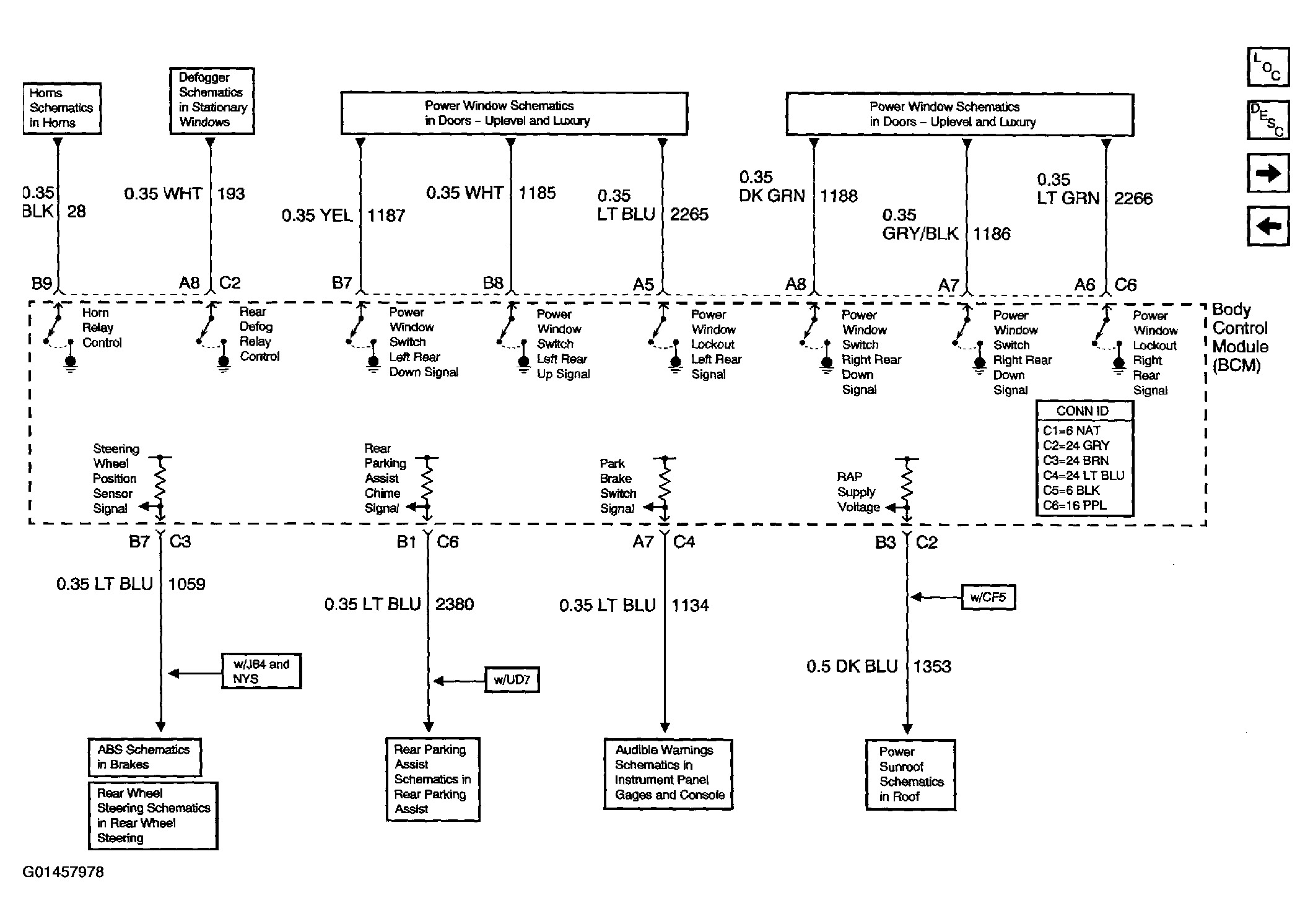

Fig 6: Body Control System Schematics Diagram (Controlled/Monitored Subsystem References - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.
