Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ambient light sensor to the underside of the IP top cover, turning it 1/4 turn to secure it in place.

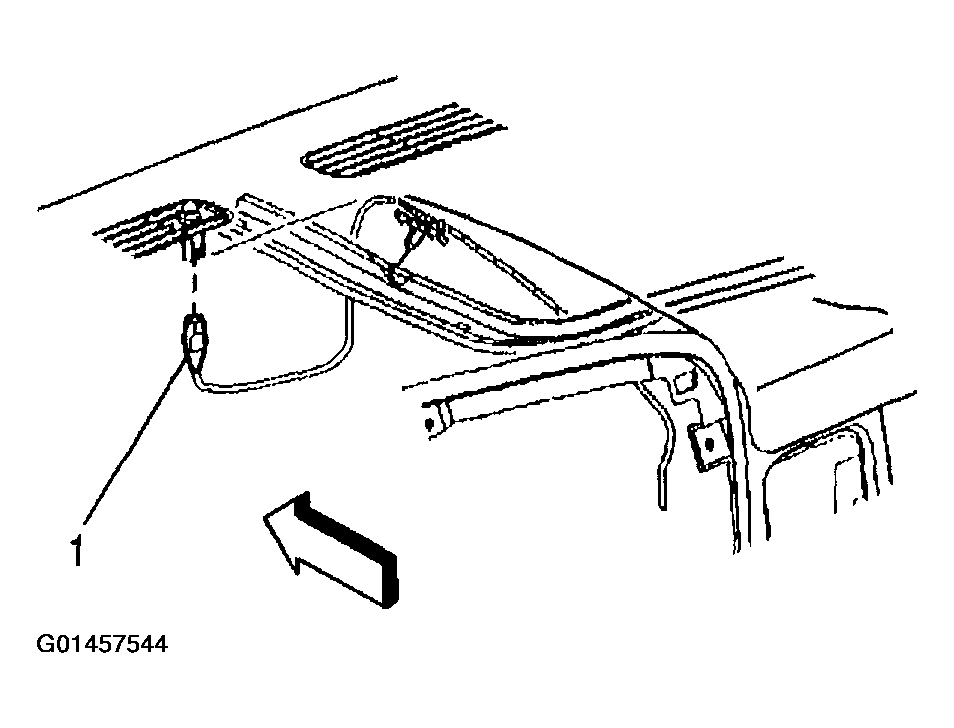

    2. Fig 1: Installing Electrical Connector To Ambient Light Sensor On Underside Of IP Top Cover
    G01457544Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector (1) to the ambient light sensor on the underside of the IP top cover.
  3. Install the instrument panel top cover. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in INSTRUMENT PANEL, GAGES, AND CONSOLE .
