Power Door Systems Component Views

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

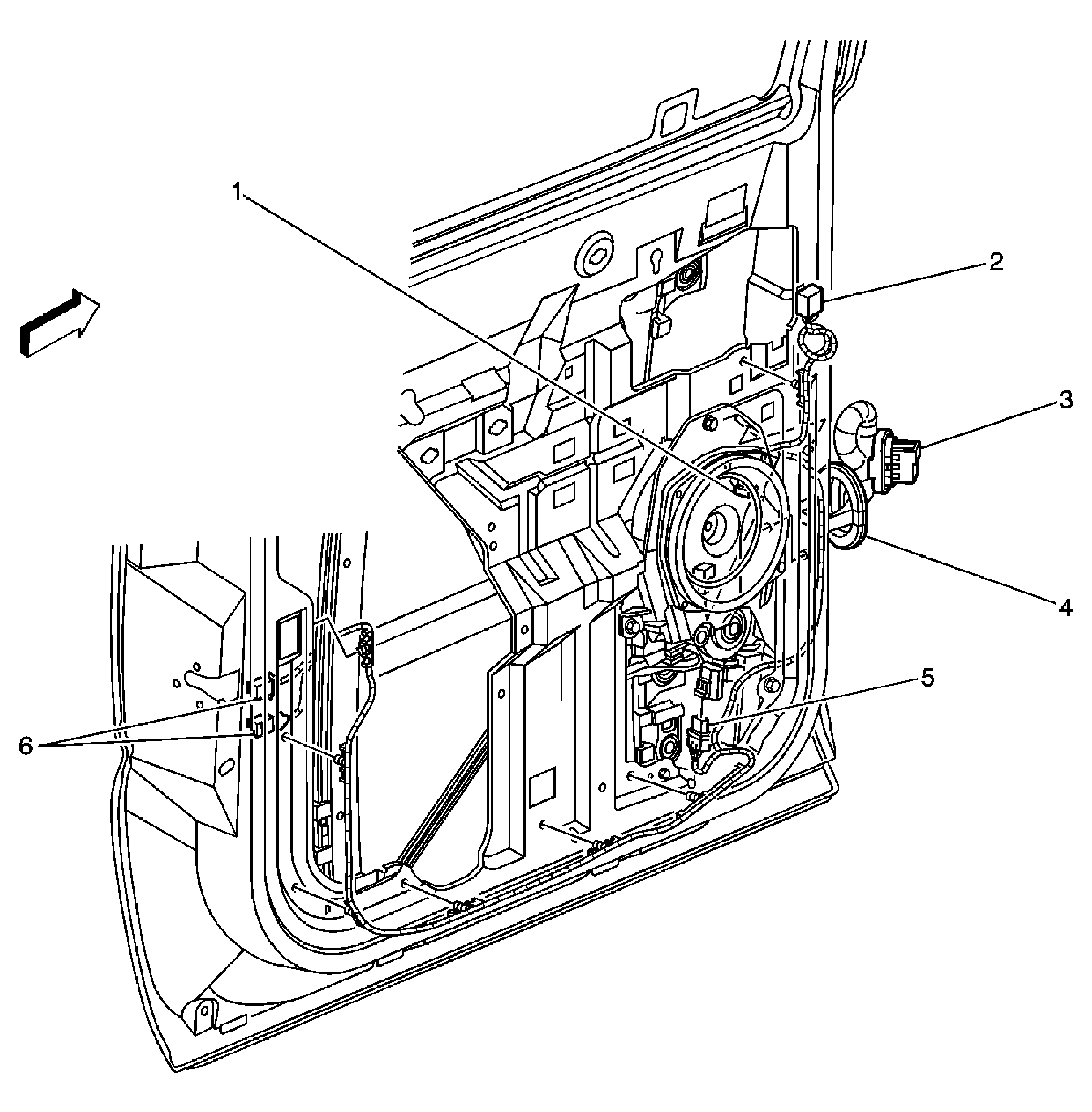

Fig 1: Component Views - Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door
2	Driver Door Module (DDM)
3	Outside Rearview Mirror - Driver
4	Window Motor - Driver
5	Memory/Heated Seat Switch Connector
6	Door Courtesy Lamp - Left Front
7	Driver Door Panel
8	Memory/Heated Seat Switch
9	Door Latch Assembly - Driver

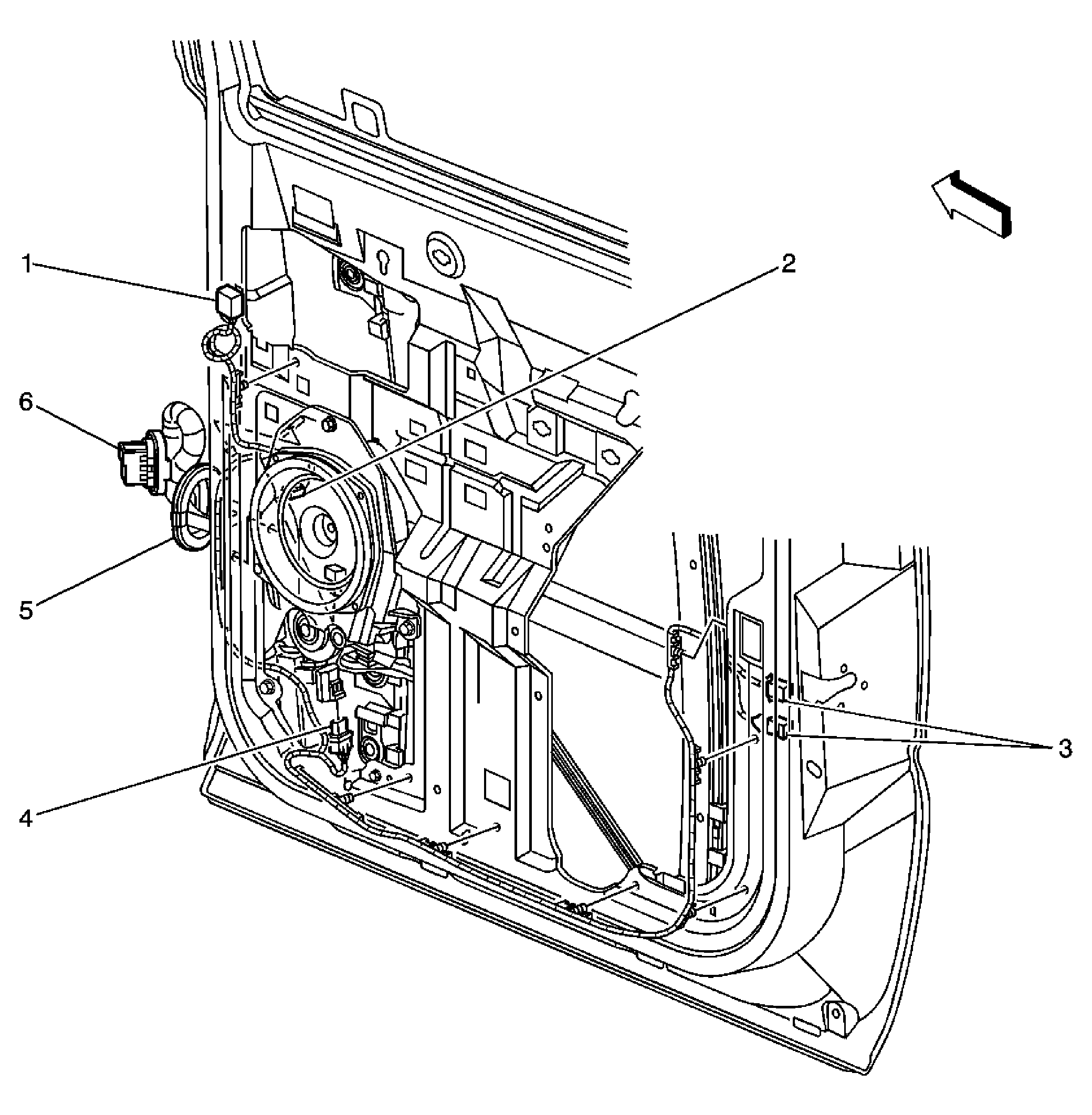

Fig 2: Component Views - Front Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Door Module (PDM)
2	Front Passenger Door
3	Door Latch Assembly - Passenger
4	Heated Seat Switch - Passenger
5	Heated Seat Switch Connector
6	Window Motor - Passenger
7	Outside Rearview Mirror - Passenger

Fig 3: Component Views - Left Rear Side Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR Door
2	Window Switch Connector - LR
3	C310
4	P700
5	Window Motor - LR
6	Door Latch Assembly Connectors - LR

Fig 4: Component Views - Right Rear Side Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch Connector - RR
2	Speaker - RR Door
3	Door Latch Assembly Connectors - RR
4	Window Motor - RR
5	P800
6	C396
