Fuel Meter Body Assembly
WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

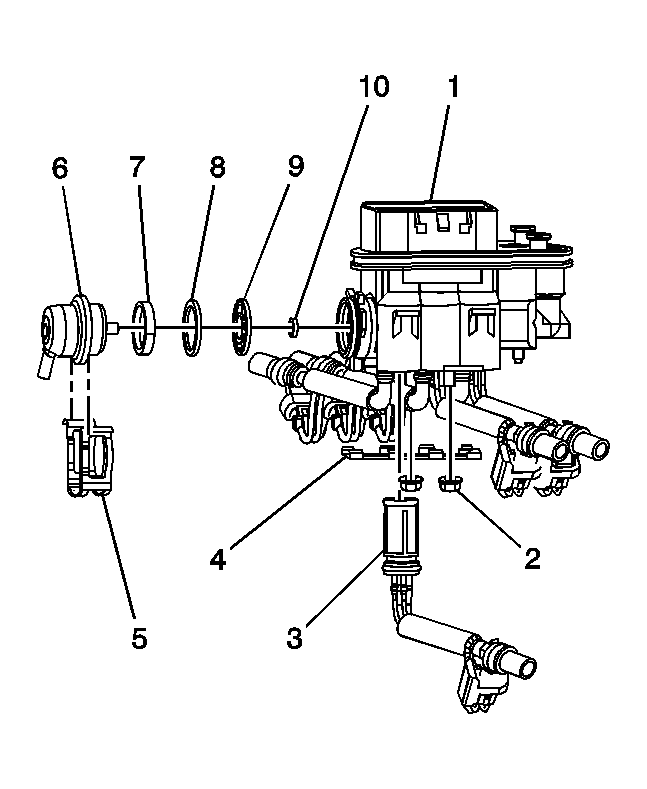

The fuel meter body assembly (1) attaches to the lower intake manifold. The fuel meter body assembly performs the following functions:
- Distributes fuel evenly to the injectors (3)
- Integrates the fuel pressure regulator (6) into the fuel metering system
