Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel sender. Refer to Fuel Sender Assembly Replacement .
  2. Disconnect the fuel pump electrical connector.
    3. Fig 1: View Of Fuel Pump Electrical Connector
    GM871933Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel level sensor electrical connector retaining clip.
    4. Fig 2: View Of Fuel Level Sensor Electrical Connector Retaining Clip
    GM871934Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the fuel level sensor electrical connector.
    5. Fig 3: View Of Fuel Level Sensor Electrical Connector
    GM871936Courtesy of GENERAL MOTORS CORP.
  5. Remove the fuel level sensor retaining clip.

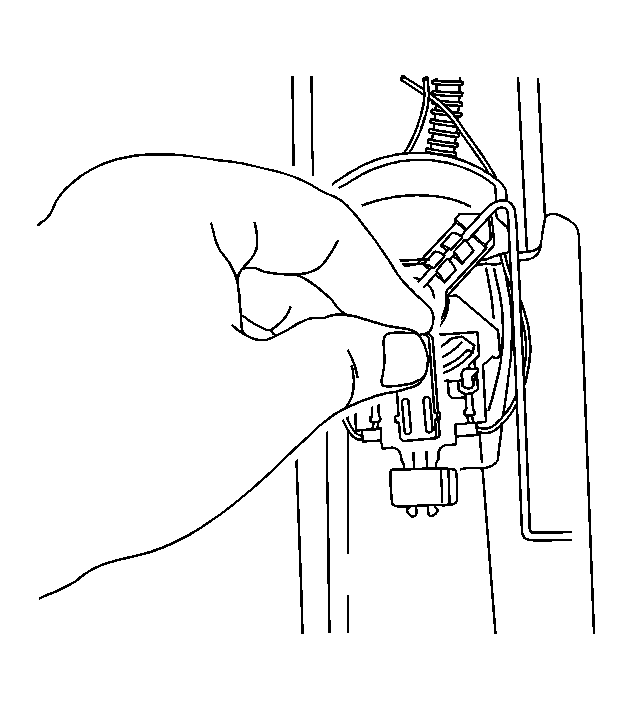

    6. Fig 4: Removing Fuel Level Sensor Retaining Clip
    GM871938Courtesy of GENERAL MOTORS CORP.
  6. Remove the fuel level sensor.

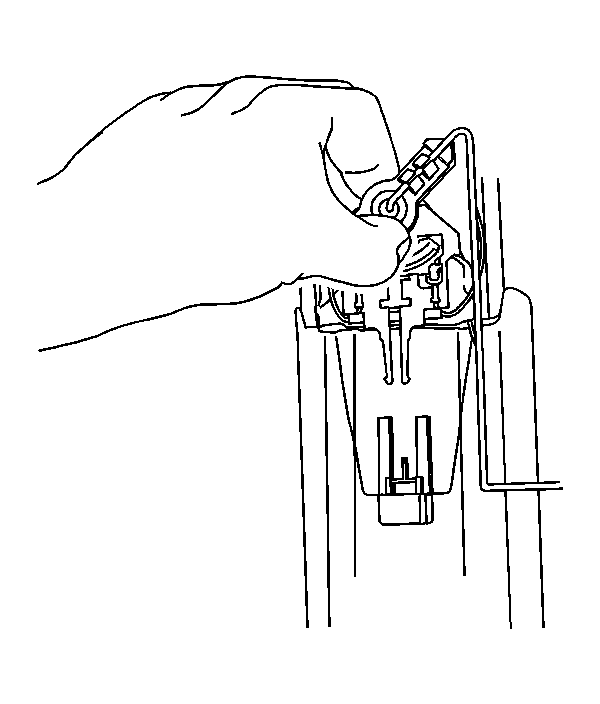

    7. Fig 5: Removing Fuel Level Sensor
    GM871942Courtesy of GENERAL MOTORS CORP.
