Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the PTO switch to the housing
  2. Connect the wire connector to the switch.
  3. Install the switch housing to the I/P till it clicks into place.

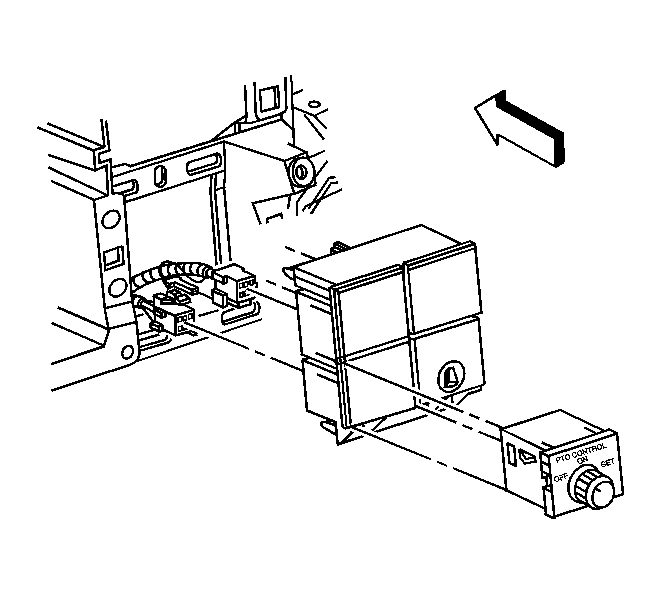

    4. Fig 1: I/P Switch Housing
    GM884837Courtesy of GENERAL MOTORS CORP.
  4. Install the I/P cluster bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages, and Console.
