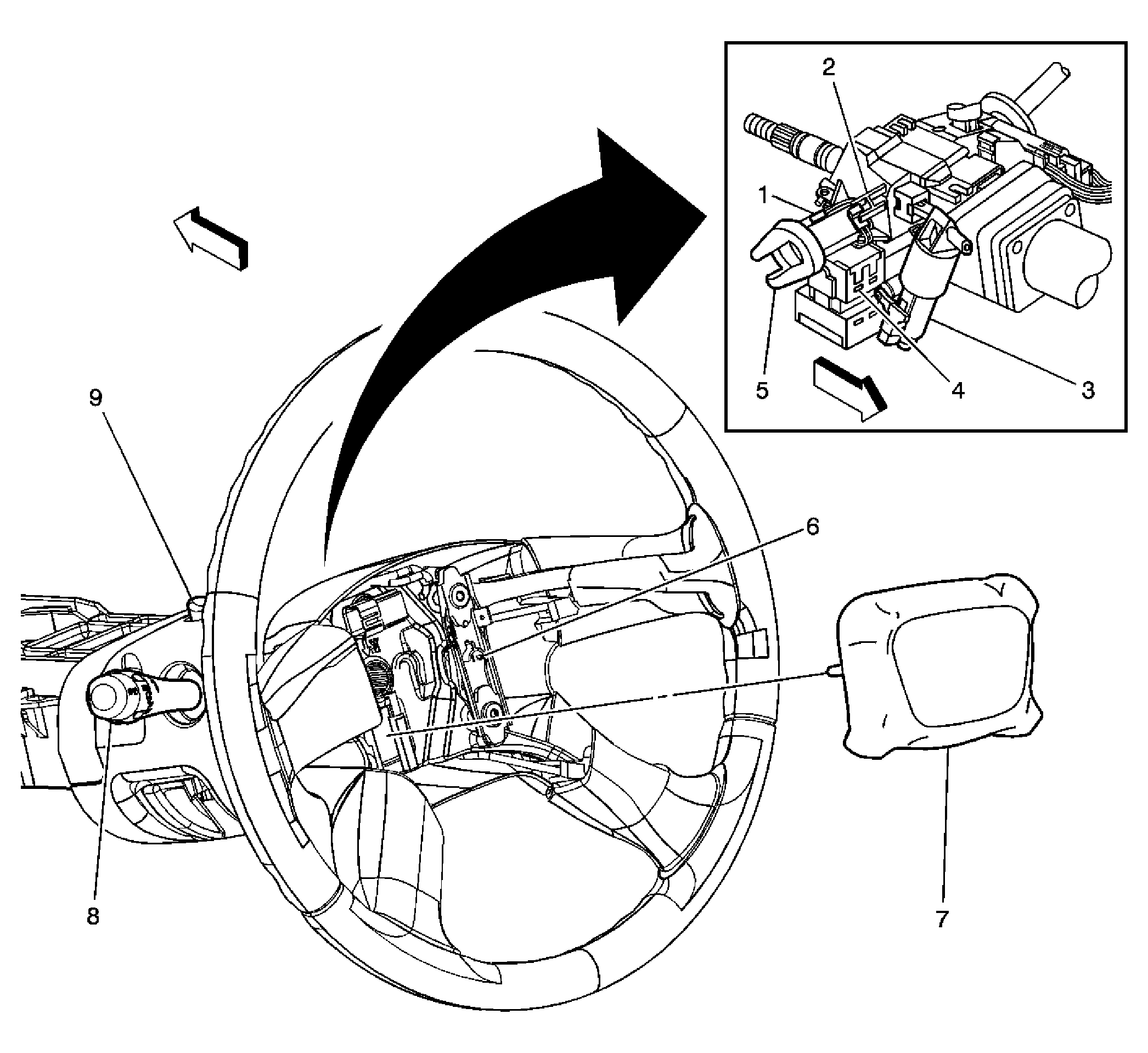

Theft Deterrent System Component Views
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Passlock Sensor |
| 2 |
Ignition Key Alarm Switch |
| 3 |
Ignition Lock Cylinder Control Actuator |
| 4 |
Ignition Switch |
| 5 |
Ignition Key Cylinder |
| 6 |
Horn Switch |
| 7 |
Inflatable Restraint Steering Wheel Module |
| 8 |
Turn Signal/Multifunction Switch |
| 9 |
Hazard Switch |
