Transfer Case Control Component Views

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Transfer Case Shift Control Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness
2	Transfer Case Shift Control Module Connectors
3	Transfer Case Shift Control Module
4	Instrument Panel

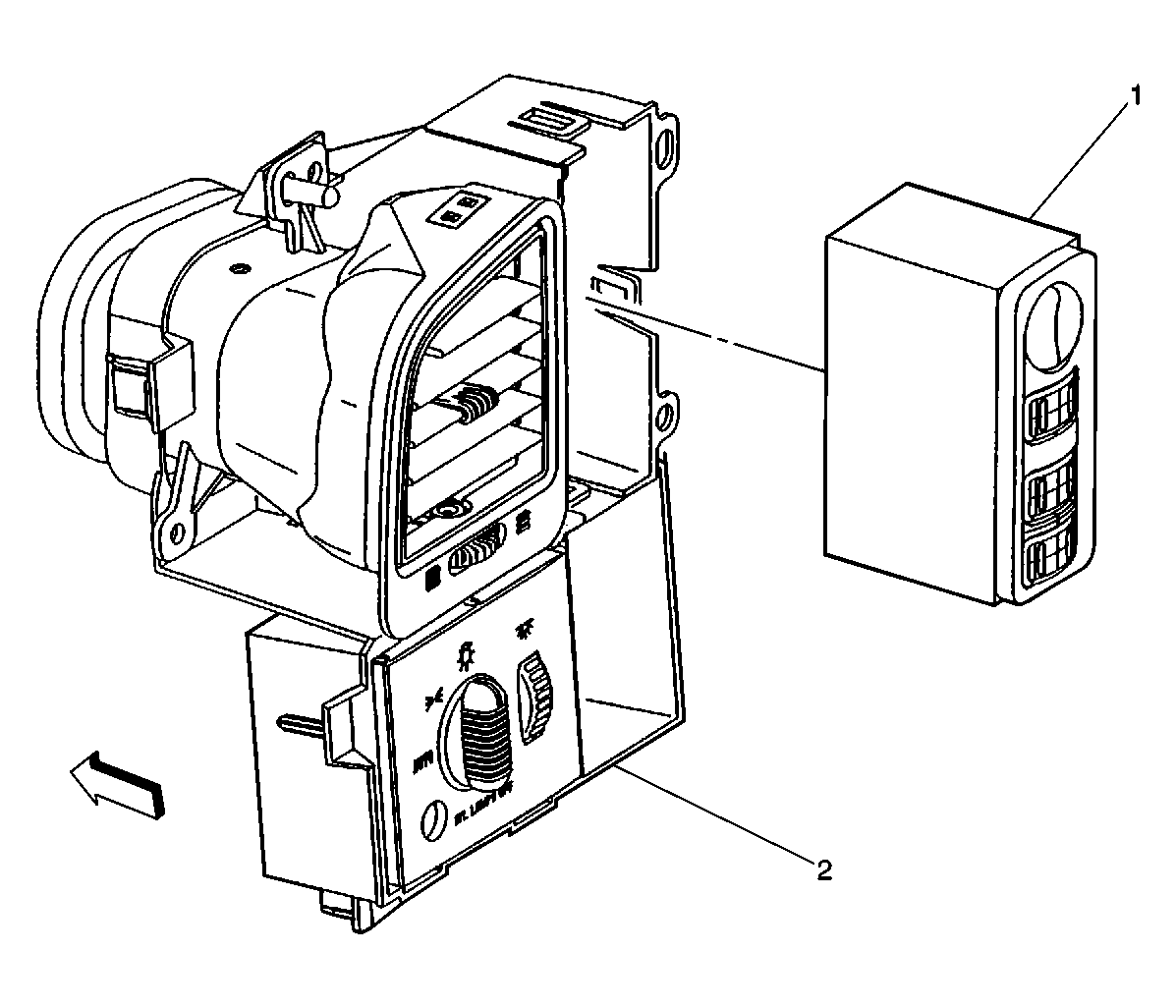

Fig 2: Transfer Case Shift Control Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Switch
2	Instrument Panel Switch and Deflector Housing

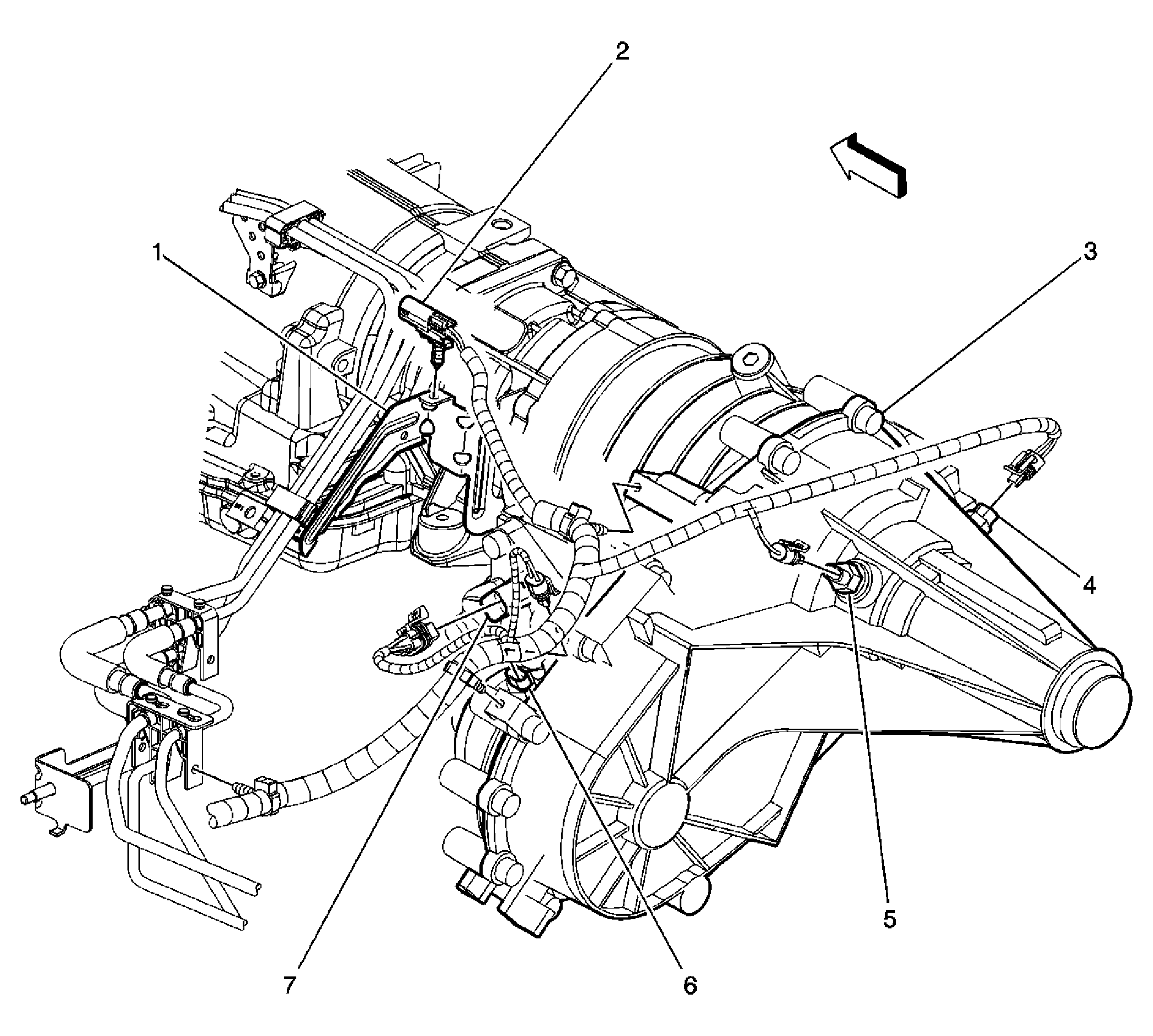

Fig 3: Transfer Case Harness Routing View Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Lines
2	C350
3	Transfer Case
4	Propshaft Speed Sensor - Rear
5	Vehicle Speed Sensor (VSS)
6	Propshaft Speed Sensor - Front
7	Transfer Case Encoder Motor

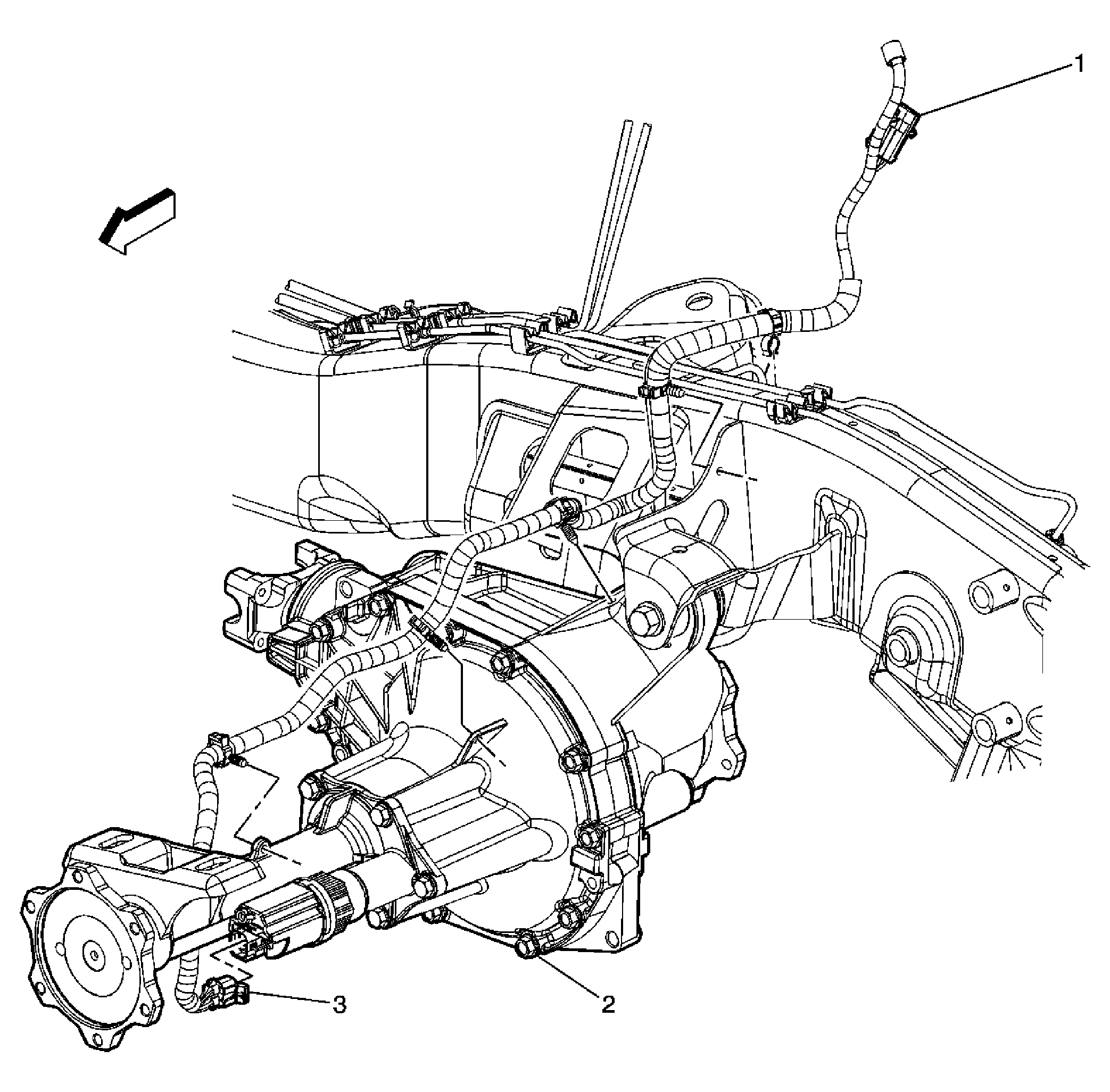

Fig 4: Front Drive Axle Harness Routing Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C150
2	Front Differential
3	Front Axle Actuator Connector
