Transfer Case Control Component Views

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

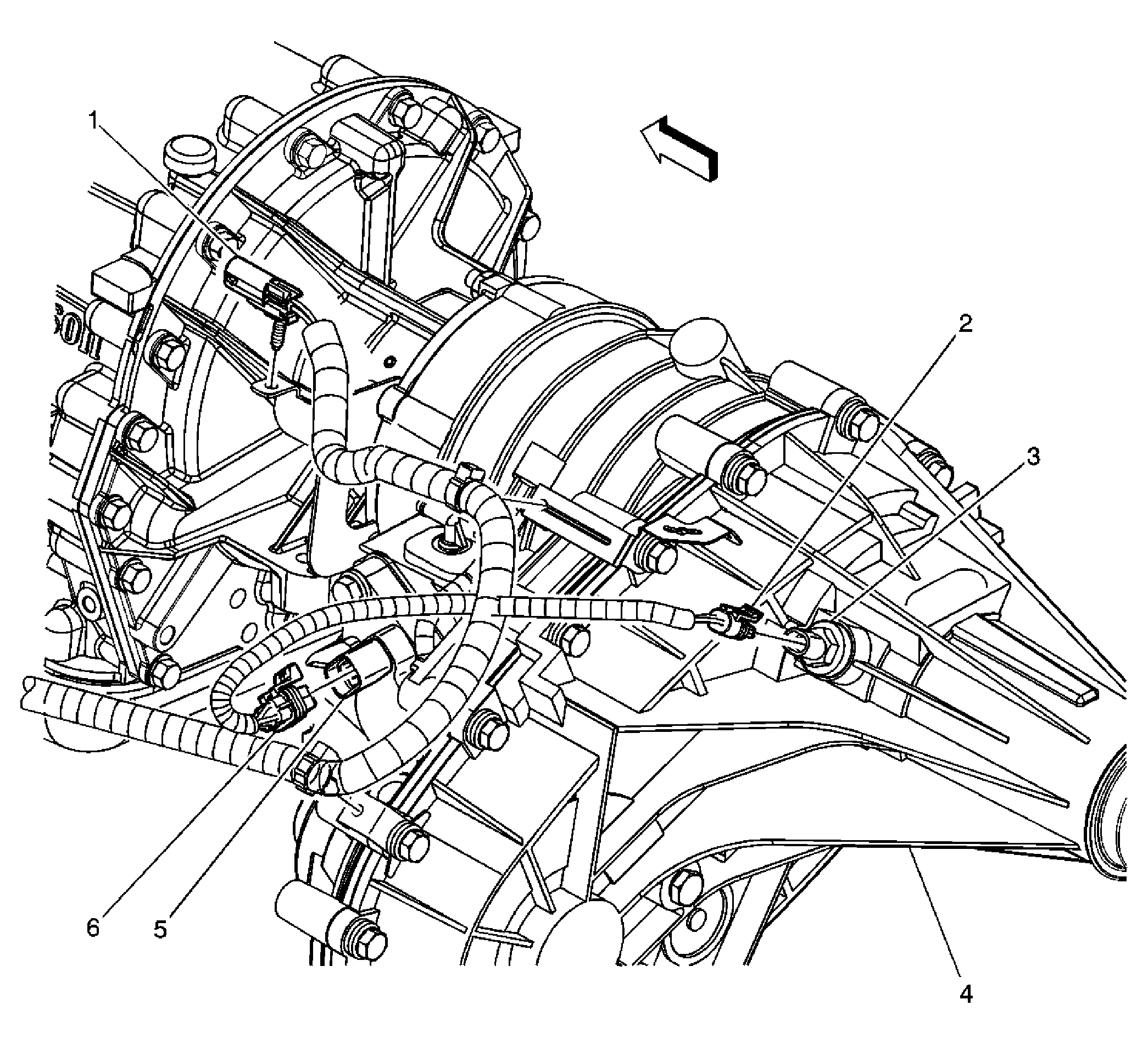

Fig 1: Transfer Case Harness Routing Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C350
2	Vehicle Speed Sensor (VSS) Connector
3	Vehicle Speed Sensor (VSS)
4	Transfer Case
5	Transfer Case Encoder Motor
6	Transfer Case Encoder Motor Connector

Fig 2: Transfer Case Shift Control Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness
2	Transfer Case Shift Control Module Connectors
3	Transfer Case Shift Control Module
4	Instrument Panel

Fig 3: Transfer Case Shift Control Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Switch
2	Instrument Panel Switch and Deflector Housing

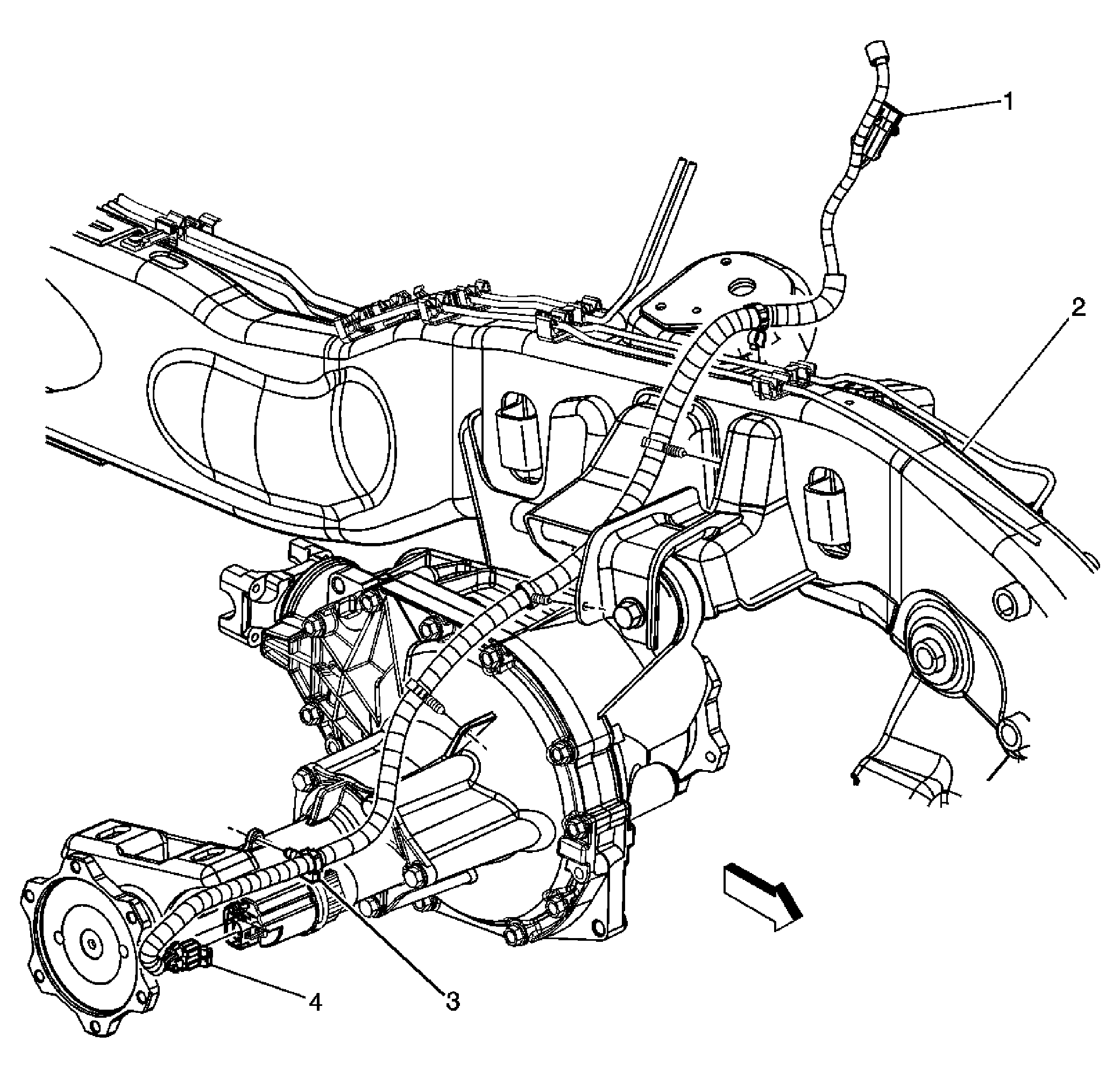

Fig 4: Front Drive Axle Harness Routing Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C150
2	Frame
3	Front Axle Actuator
4	Front Axle Actuator Connector
