Transfer Case Control Component Views

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

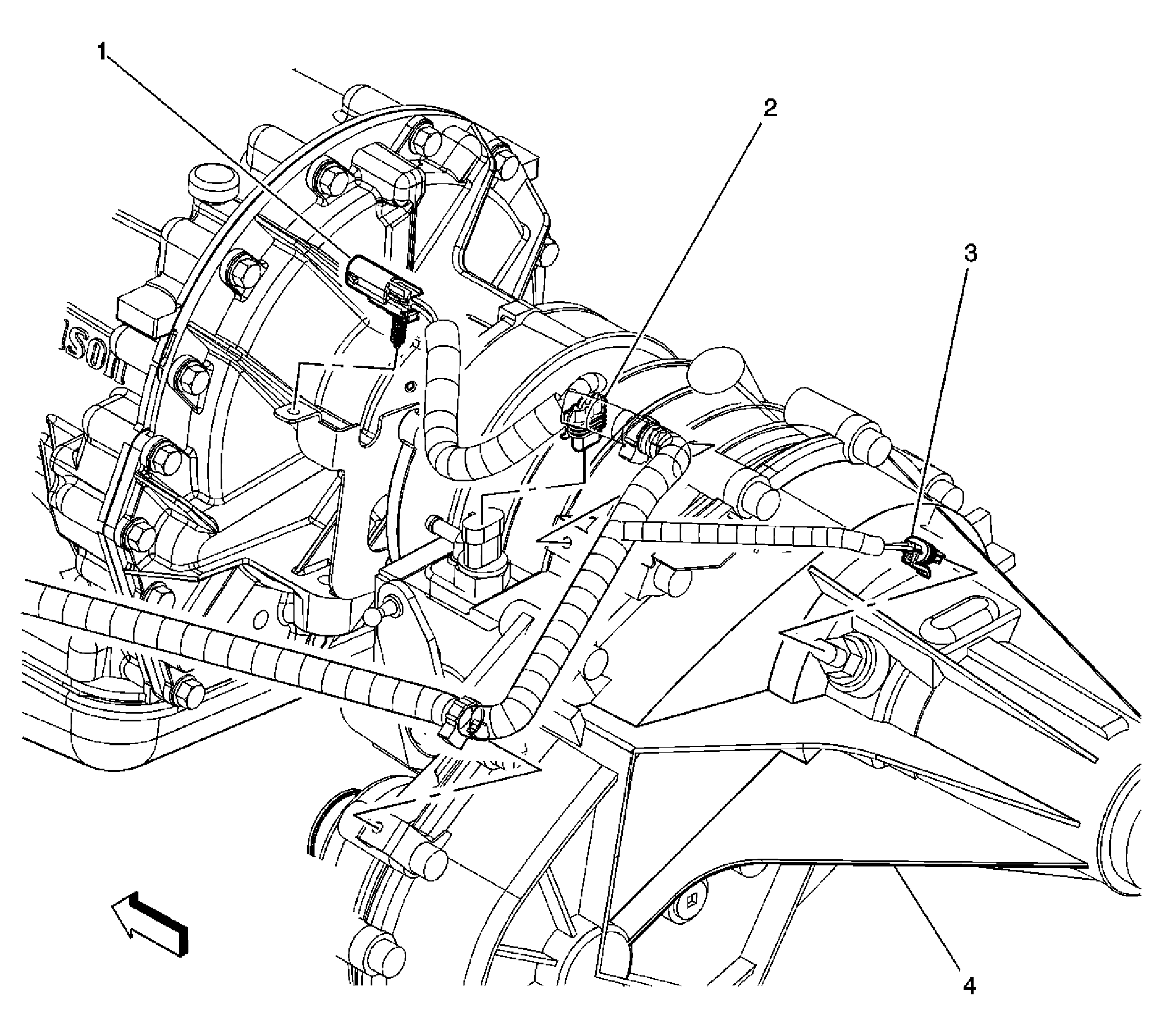

Fig 1: Transfer Case Component View - NVG 261 - NP2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C350
2	Transfer Case Shift Control Switch Connector
3	Vehicle Speed Sensor (VSS)
4	Transfer Case - NVG 261 - NP2

Fig 2: Front Drive Axle Harness Routing Component View (K25 Series)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ground 110 (G110)
2	Vent Tube
3	Vent Tube Connection
4	Front Axle Actuator
5	Front Axle Actuator Connector
6	Left Inner Fender

Fig 3: Front Drive Axle Harness Routing Component View (K15 Series)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vent Tube
2	Vent Tube Connection
3	Front Axle Actuator
4	Front Axle Actuator Connector
5	Front Drive Axle Assembly (Mount)
6	Ground 110 (G110)
7	Left Inner Fender
