Automatic Transmission Electronic Component Views (M30/M32)

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Electronic Components Component Views (M30/M32)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
36	Vehicle Speed Sensor (VSS)
66	Torque Converter Clutch (TCC) Solenoid Valve
69	Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
367a	1-2 Shift Solenoid (SS) Valve
367b	2-3 Shift Solenoid (SS) Valve
377	Pressure Control (PC) Solenoid Valve
394	3-2 Shift Solenoid (SS) Valve Assembly
396	Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve

Fig 2: Park Neutral Position (PNP) Switch Component Views (M30/M32)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission 4L60-E/4L65-E
2	Park/Neutral Position (PNP) Switch

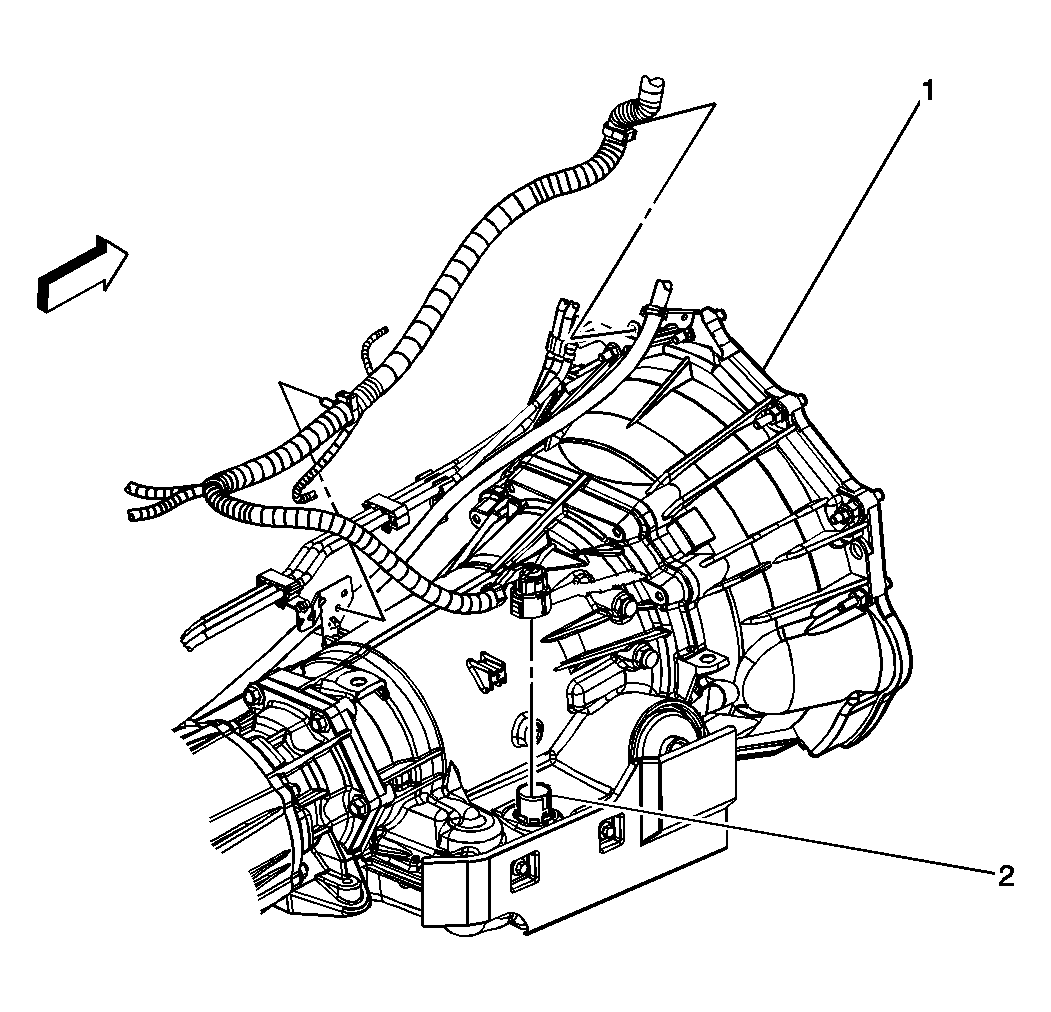

Fig 3: C175 Component Views (M30/M32)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission
2	C175

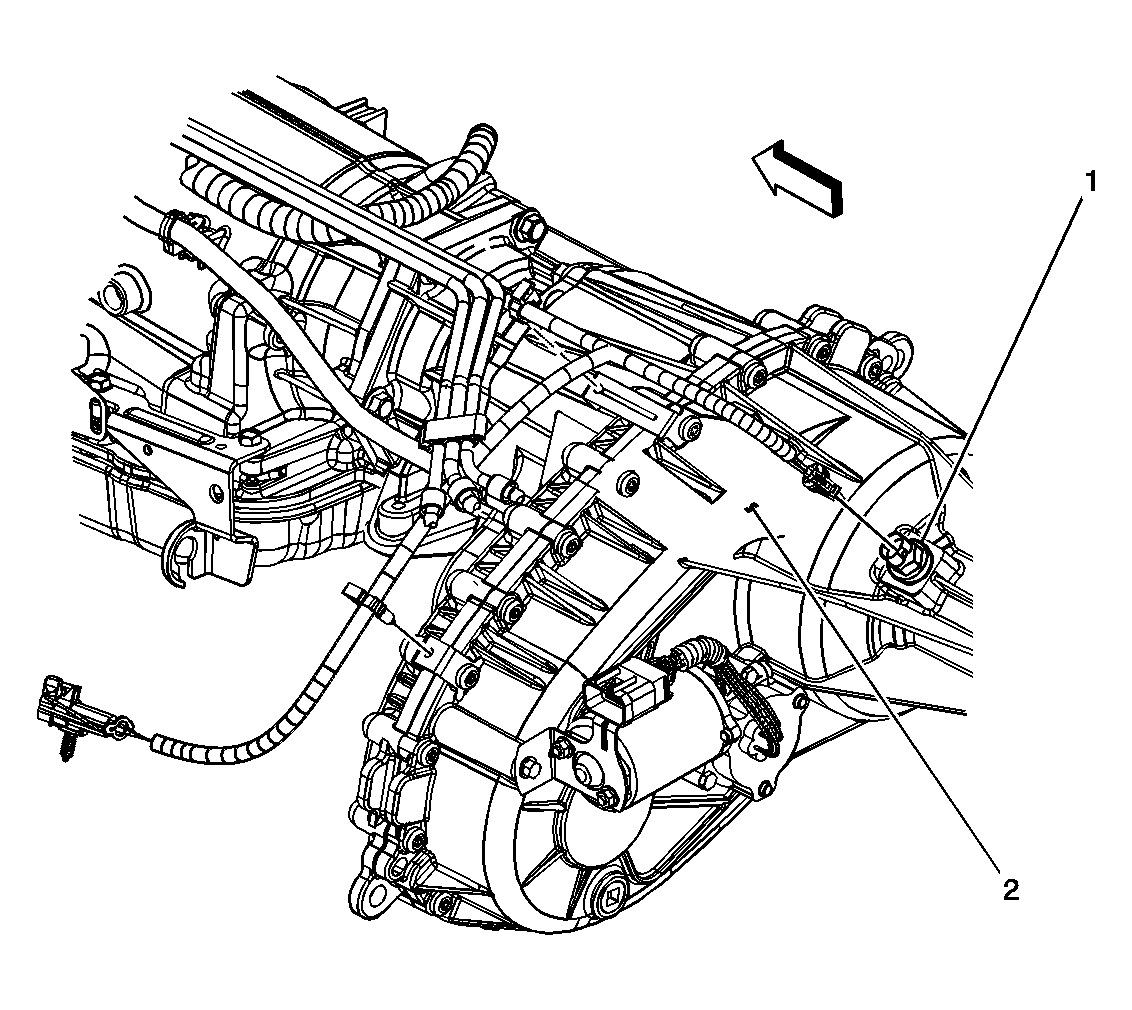

Fig 4: Vehicle Speed Sensor (VSS) Component Views (M30/M32)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	VSS Sensor
2	Transfer Case

Fig 5: Tow/Haul Switch Location Component Views (M30/M32)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tow/Haul Switch
