Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the splash shield (25/35 series).

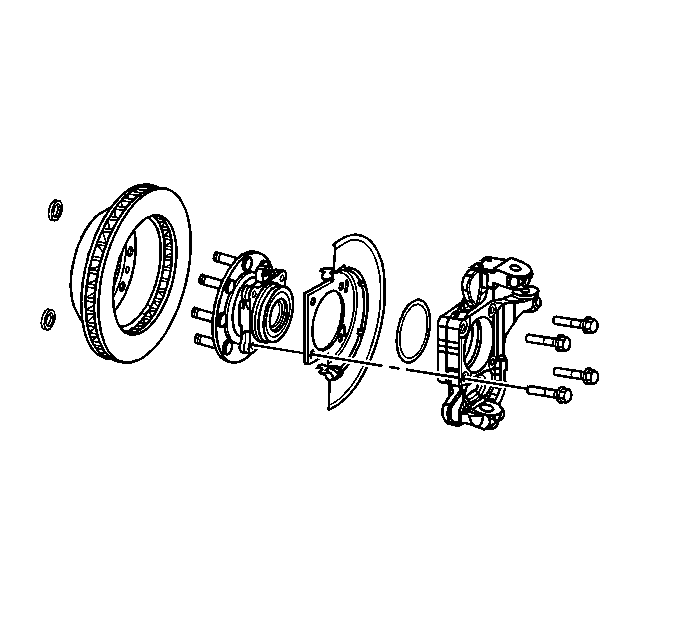

    2. Fig 1: Splash Shield (25/35 Series)
    GM371077Courtesy of GENERAL MOTORS CORP.
  2. Install the splash shield (15 series).

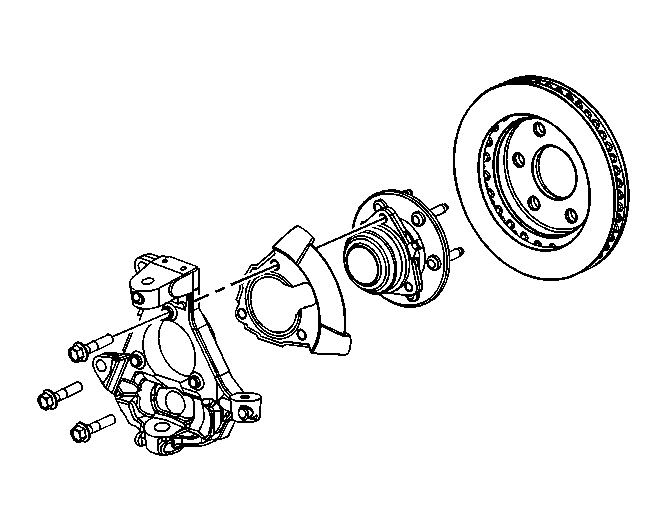

    3. Fig 2: Splash Shield (15 Series)
    GM371033Courtesy of GENERAL MOTORS CORP.
  3. Install the hub and bearing assembly. Refer to Wheel Hub, Bearing, and Seal Replacement (RWD) or Wheel Hub, Bearing, and Seal Replacement (4WD) in Front Suspension.
  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  5. Remove the safety stands.
  6. Lower the vehicle.
