Component Locations
WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For component locations refer to COMPONENT LOCATIONS table or illustrations. See Fig 1-Fig 6
.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| A/C Compressor Clutch Relay | In Underhood Fuse/Relay Block |
| A/C High Pressure Cut-Off Switch | On Rear Of A/C Compressor |
| A/C Low Pressure Cut-Out Switch | In Low Pressure Refrigerant Line |
| Camshaft Position Sensor | Part Of Distributor, Top Rear Of Engine |
| Crankshaft Position Sensor | Behind Crankshaft Pulley |
| Cruise Control Module | Front Of Engine Compartment, Near Left Wheelwell |
| Data Link Connector | Under Left Side Of Instrument Panel |
| EGR Valve | Top Front Of Engine |
| Engine Coolant Temperature Sensor | Left Side Of Engine |
| Engine Oil Pressure Gauge Sensor | Top Rear Of Engine |
| EVAP Canister Purge Solenoid | Right Side Of Engine |

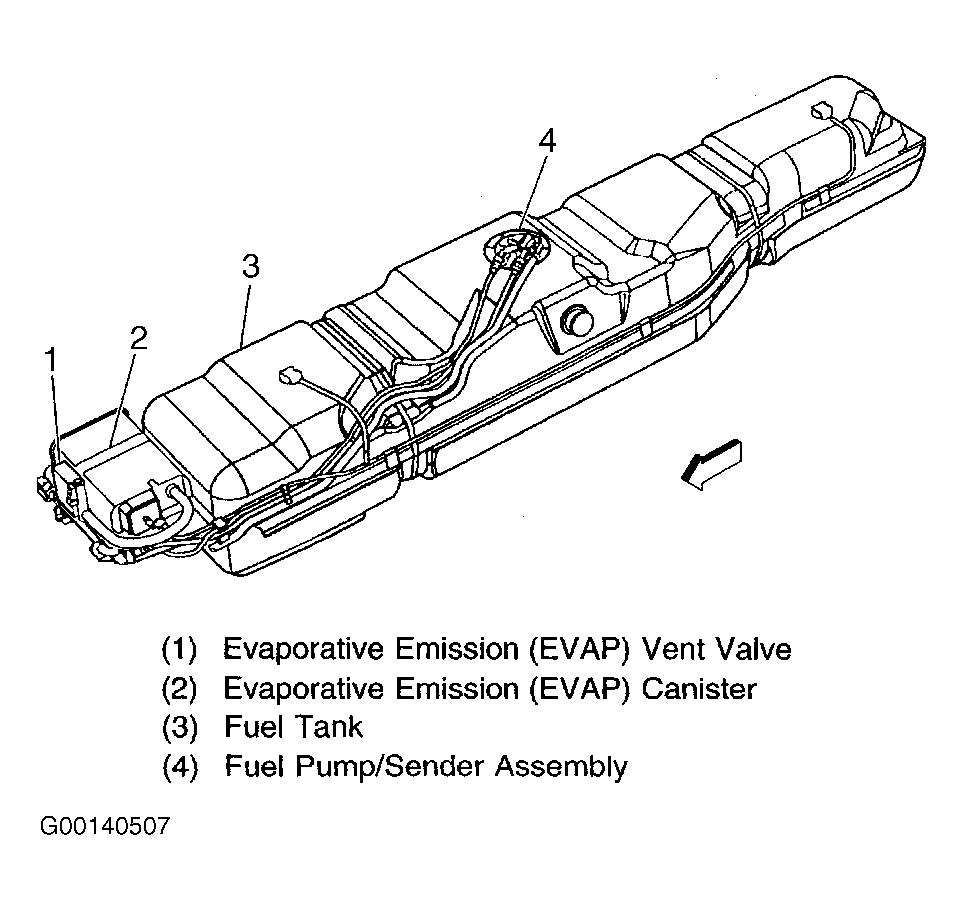

| EVAP Canister Vent Solenoid | Left Frame Rail, Near Fuel Tank |
| Fuel Injectors | On Intake Manifold |
| Fuel Pump Relay | In Underhood Fuse/Relay Block |
| Fuel Tank Pressure Sensor | In Fuel Tank |

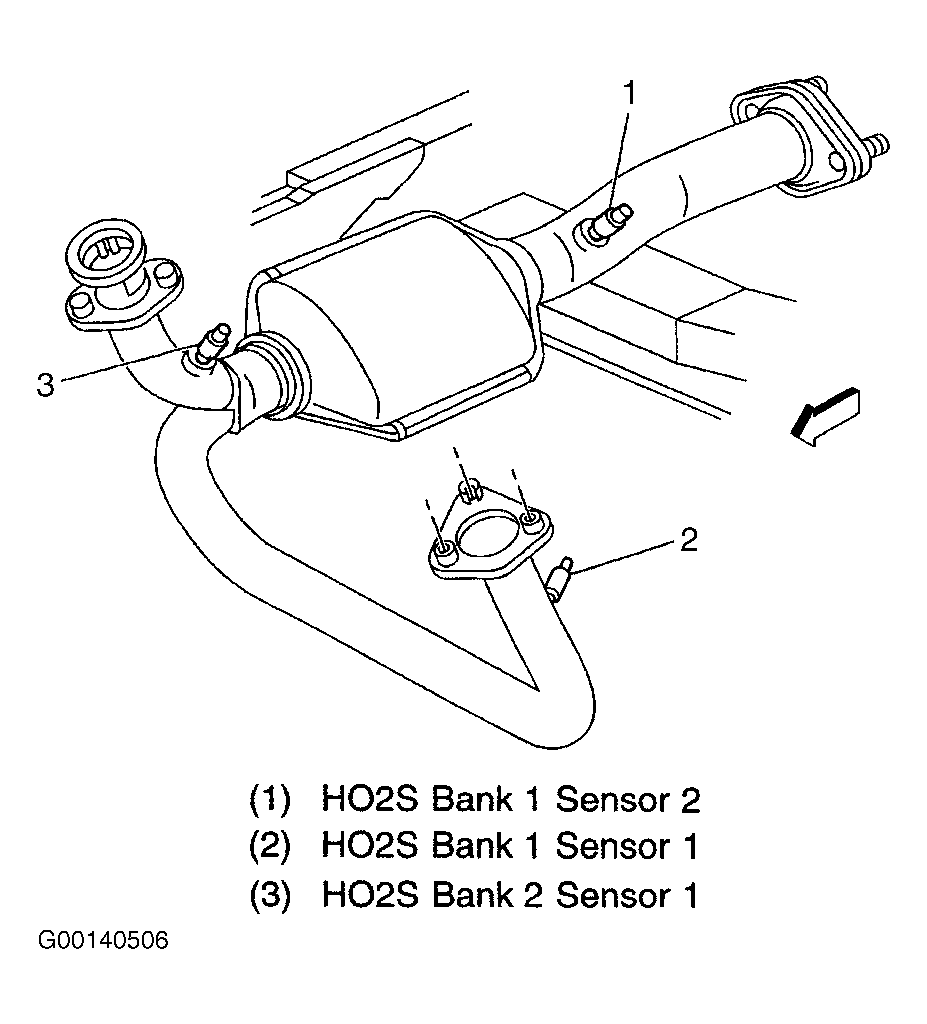

| Heated Oxygen Sensor - Bank 1, Sensor 1 | In Exhaust Pipe, In Front Of Catalytic Converter |
| Heated Oxygen Sensor - Bank 1, Sensor 2 | In Exhaust Pipe, Rear Of Catalytic Converter |
| Heated Oxygen Sensor - Bank 2, Sensor 1 | In Exhaust Pipe, In Front Of Catalytic Converter |
| Idle Air Control Valve | Top Left Side Of Engine |
| Ignition Coil | Top Right Of Engine |
| Ignition Control Module | Top Right Side Of Engine |
| Intake Air Temperature Sensor | Part Of Air Intake Duct |
| Knock Sensor | Top Rear Of Engine |
| Manifold Absolute Pressure Sensor | Top Right Side Of Engine |

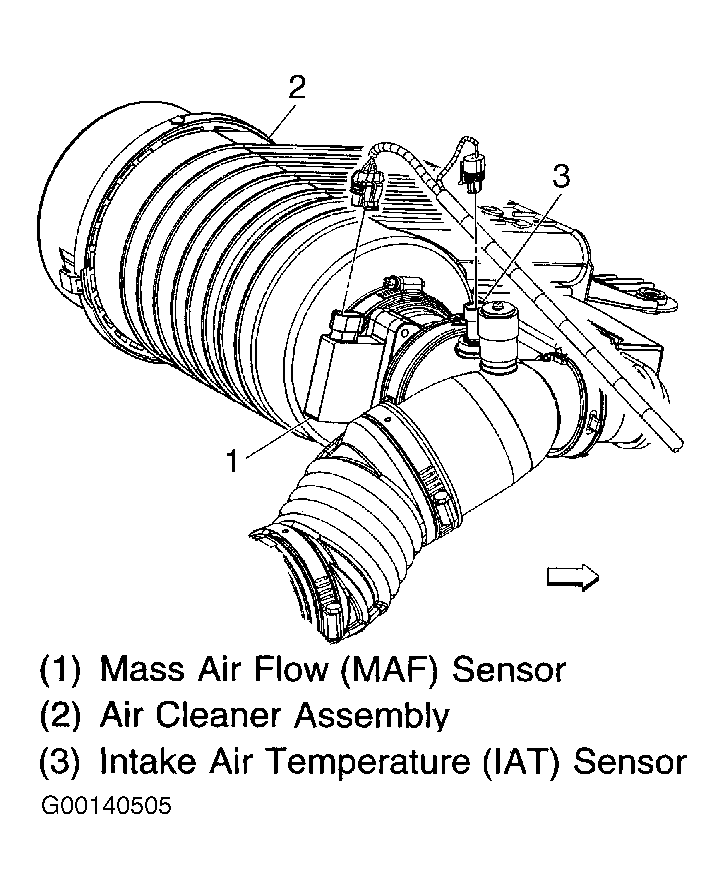

| Mass Airflow Sensor | Part Of Air Intake Duct |
| Throttle Position Sensor | Top Left Of Engine |
| Underhood Fuse/Relay Block | Left Rear Of Engine Compartment, On Wheelwell |
| Vehicle Control Module | Near Brake Master Cylinder, At Left Front Wheelwell |
| Vehicle Speed Sensor | Left Side Of Transmission |
| VSS Module | Behind Left Side Of Instrument Panel, Near Steering Column |
