Fuel Pump Electrical Circuit Diagnosis: Notes

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

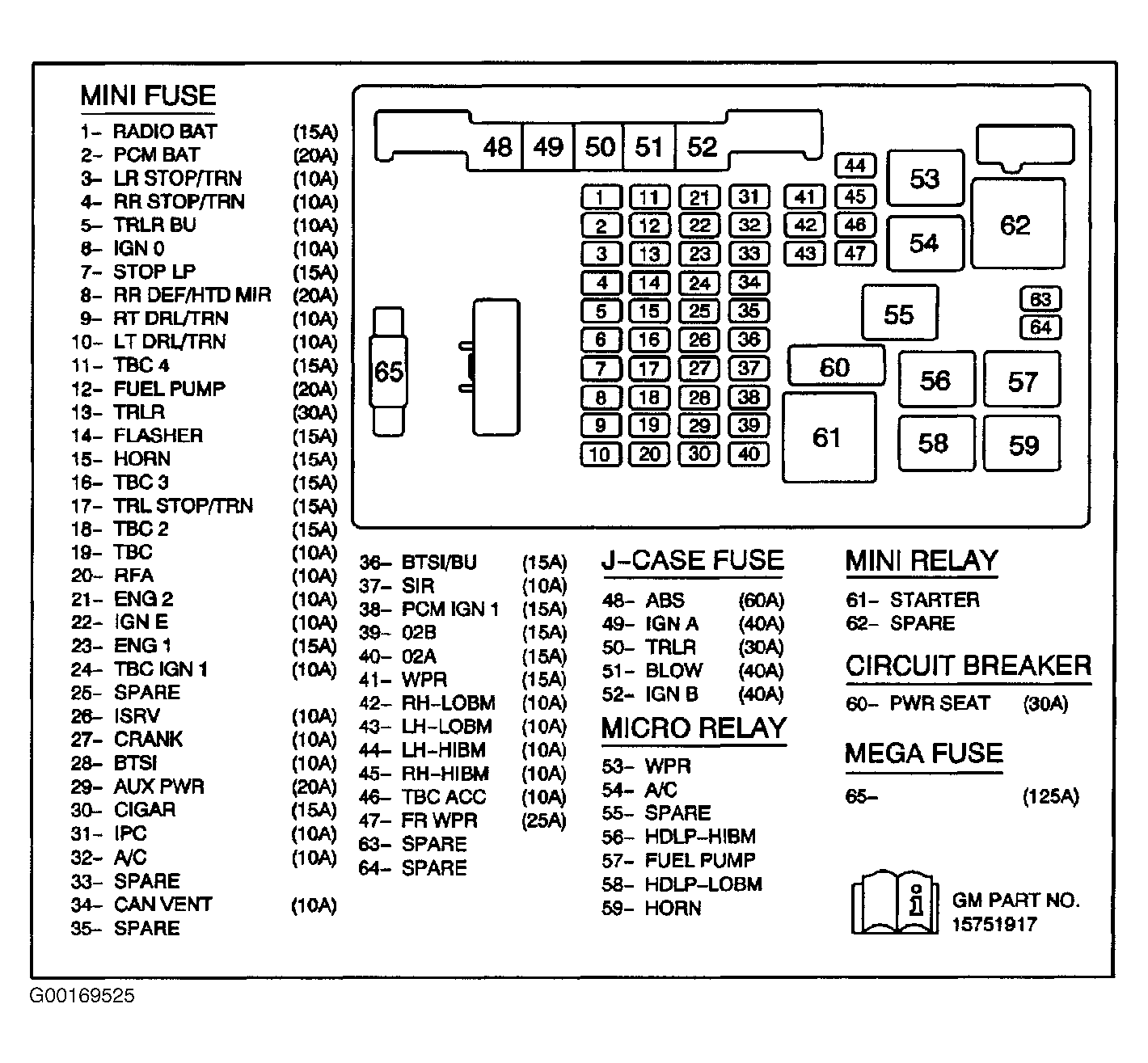

Fig 1: Identifying Underhood Fuse/Relay Block
G00169525Courtesy of GENERAL MOTORS CORP.

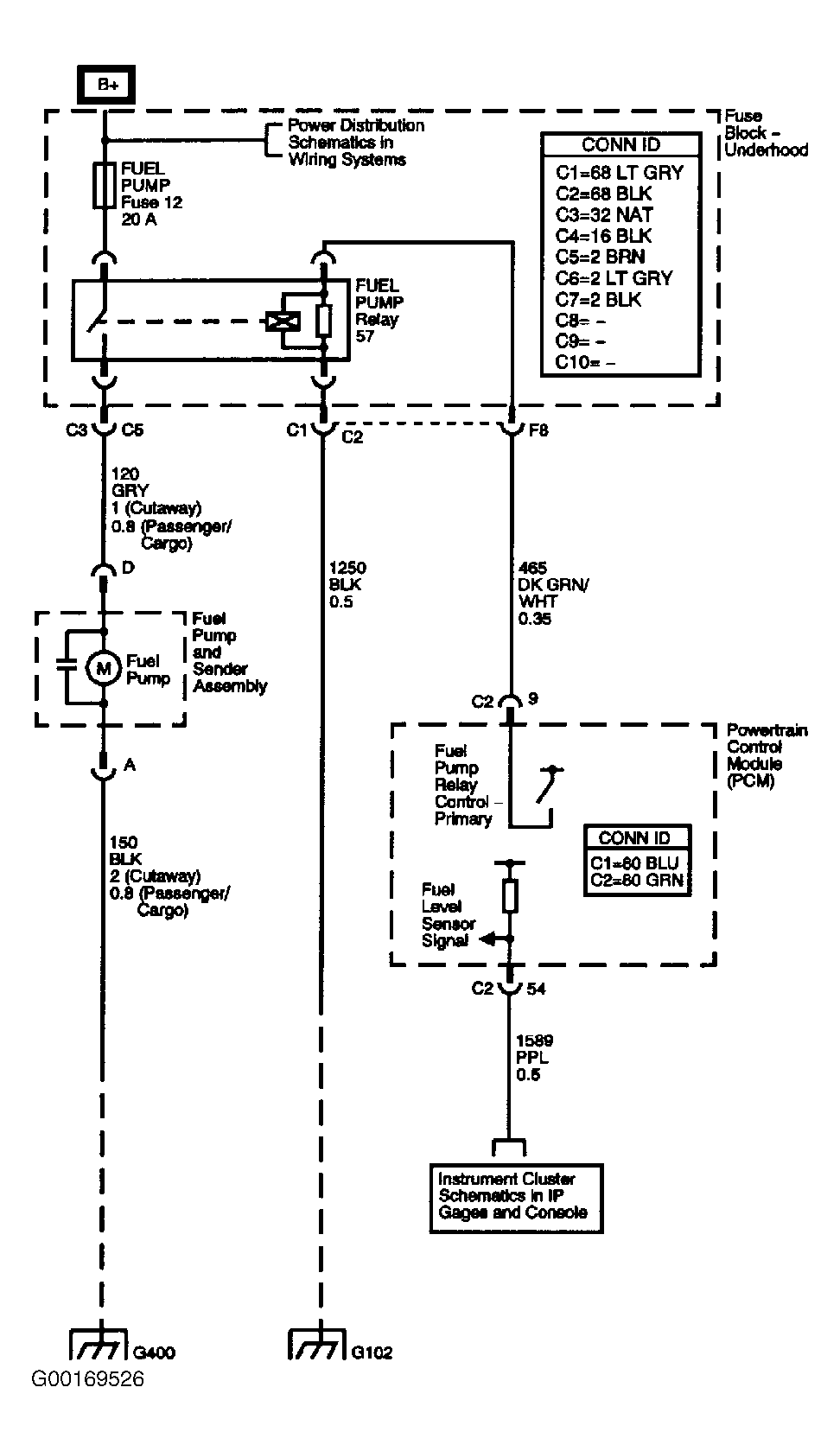

Fig 2: Fuel Pump Electrical Schematic
G00169526Courtesy of GENERAL MOTORS CORP.
