Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator support.

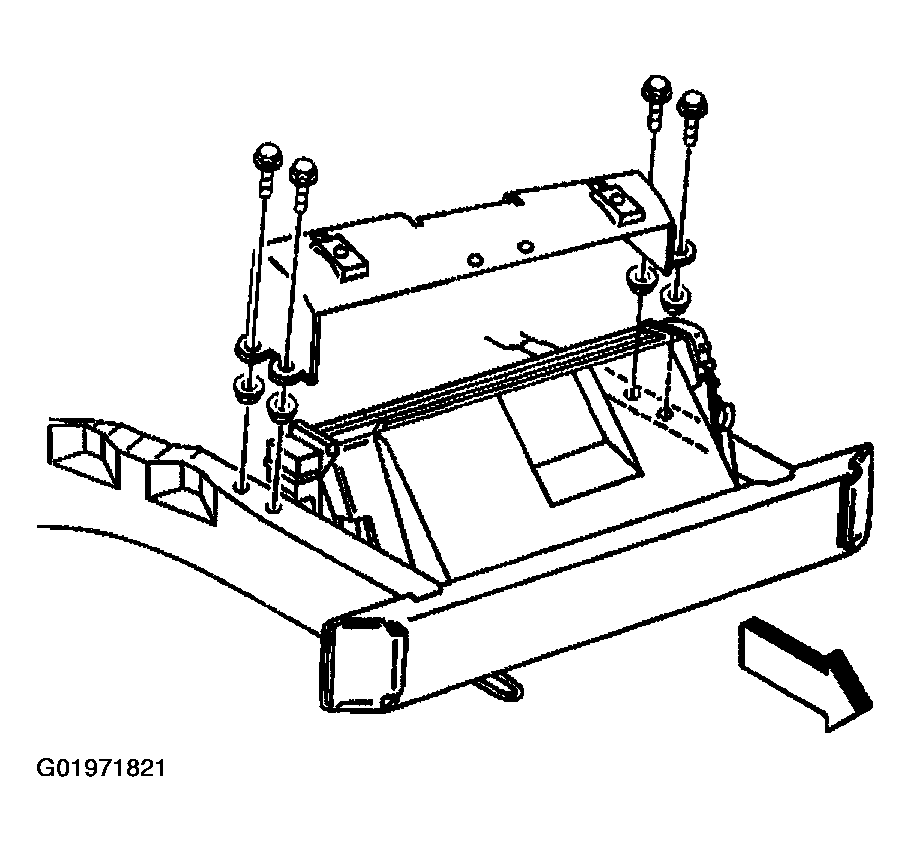

    Fig 1: Radiator Support
    G01971821Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the radiator support bolts.

    Tighten

    Tighten the bolts to 8 N.m (71 lb in).

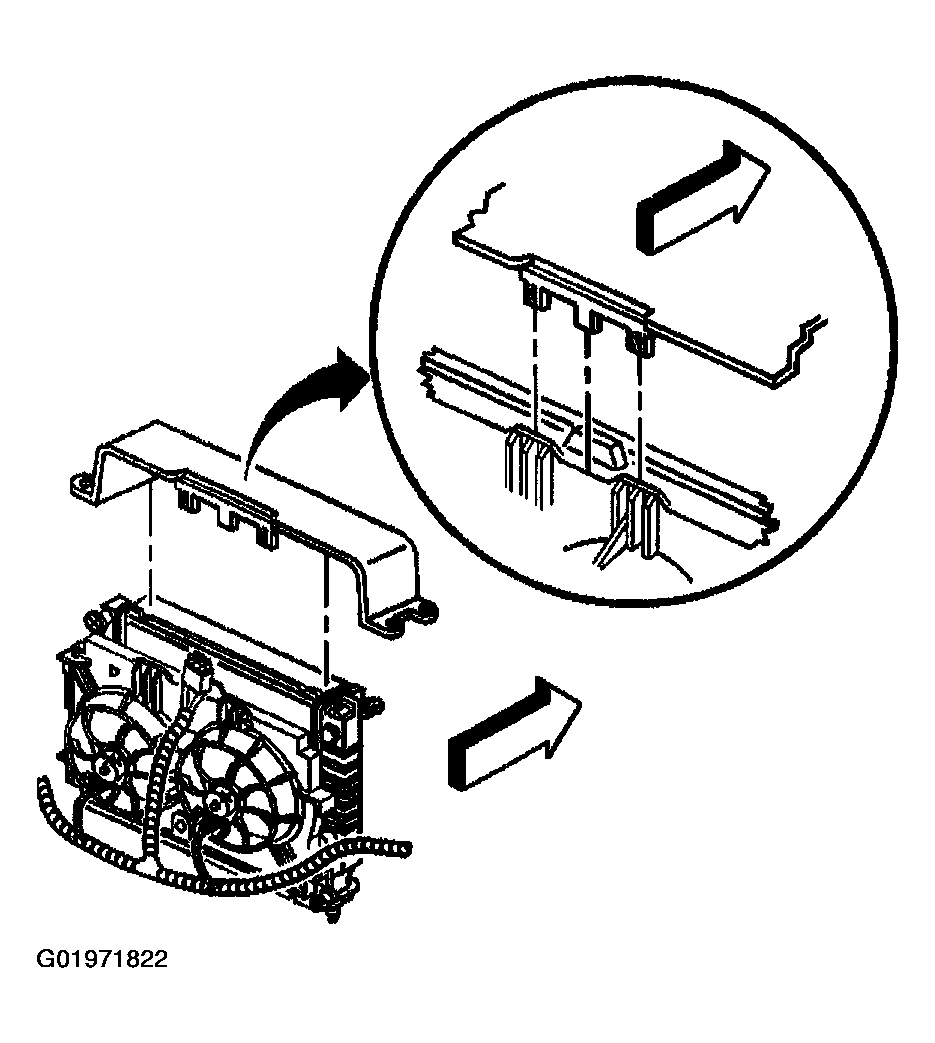

    Fig 2: Radiator Support Bolts
    G01971822Courtesy of GENERAL MOTORS CORP.

    Important:  Seat the air cleaner retaining grommets fully. If necessary moisten the grommets with water prior to installation.

  3. Install the air cleaner intake duct.

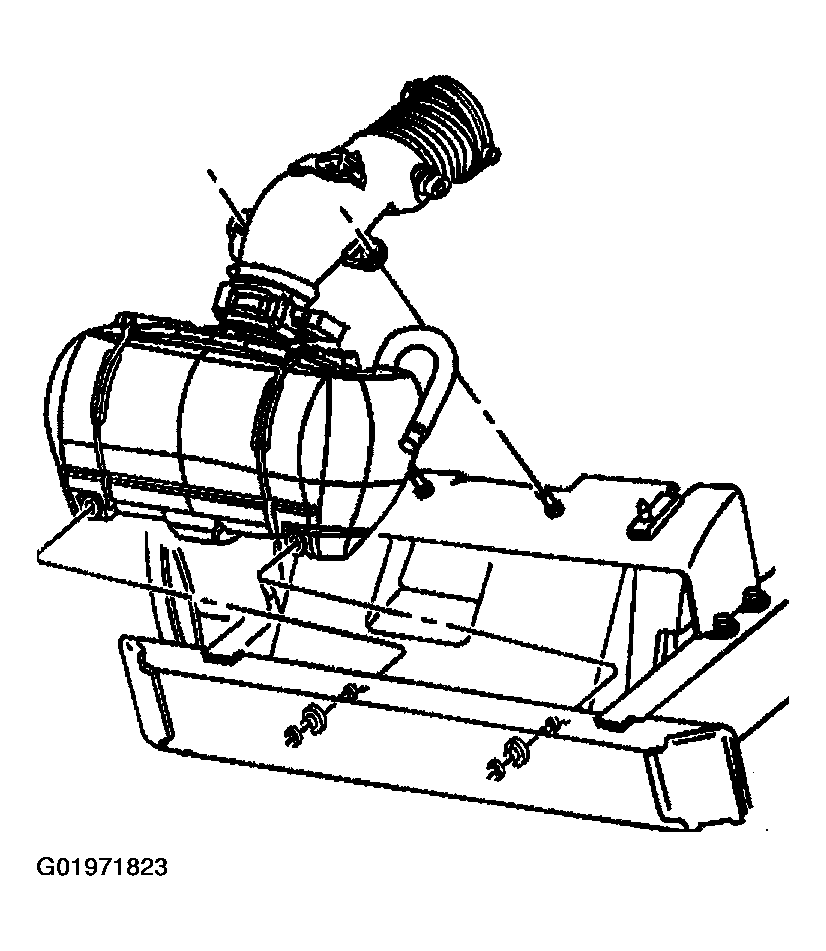

    Fig 3: Air Cleaner Intake Duct
    G01971823Courtesy of GENERAL MOTORS CORP.
  4. Install the engine wiring harness to the clip on the radiator support.
  5. Connect the mass air flow sensor electrical connector.

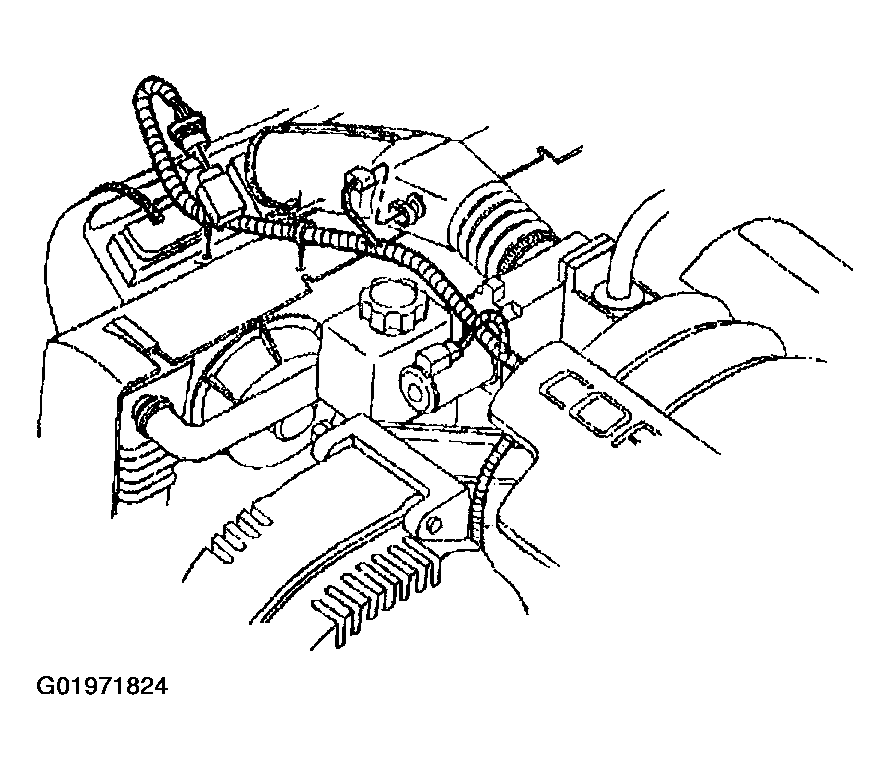

    Fig 4: Connecting Mass Air Flow Sensor Electrical Connector
    G01971824Courtesy of GENERAL MOTORS CORP.
