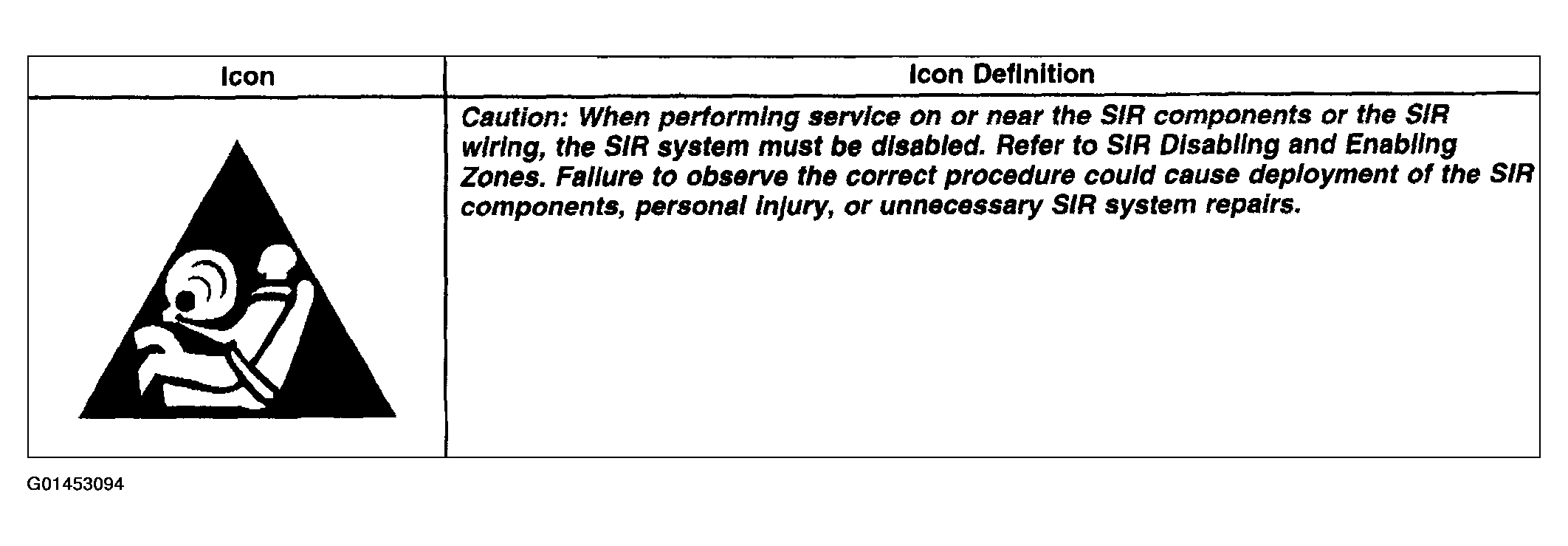

Fig 1: Data Link Communications Schematic Icons
Courtesy of GENERAL MOTORS CORP.

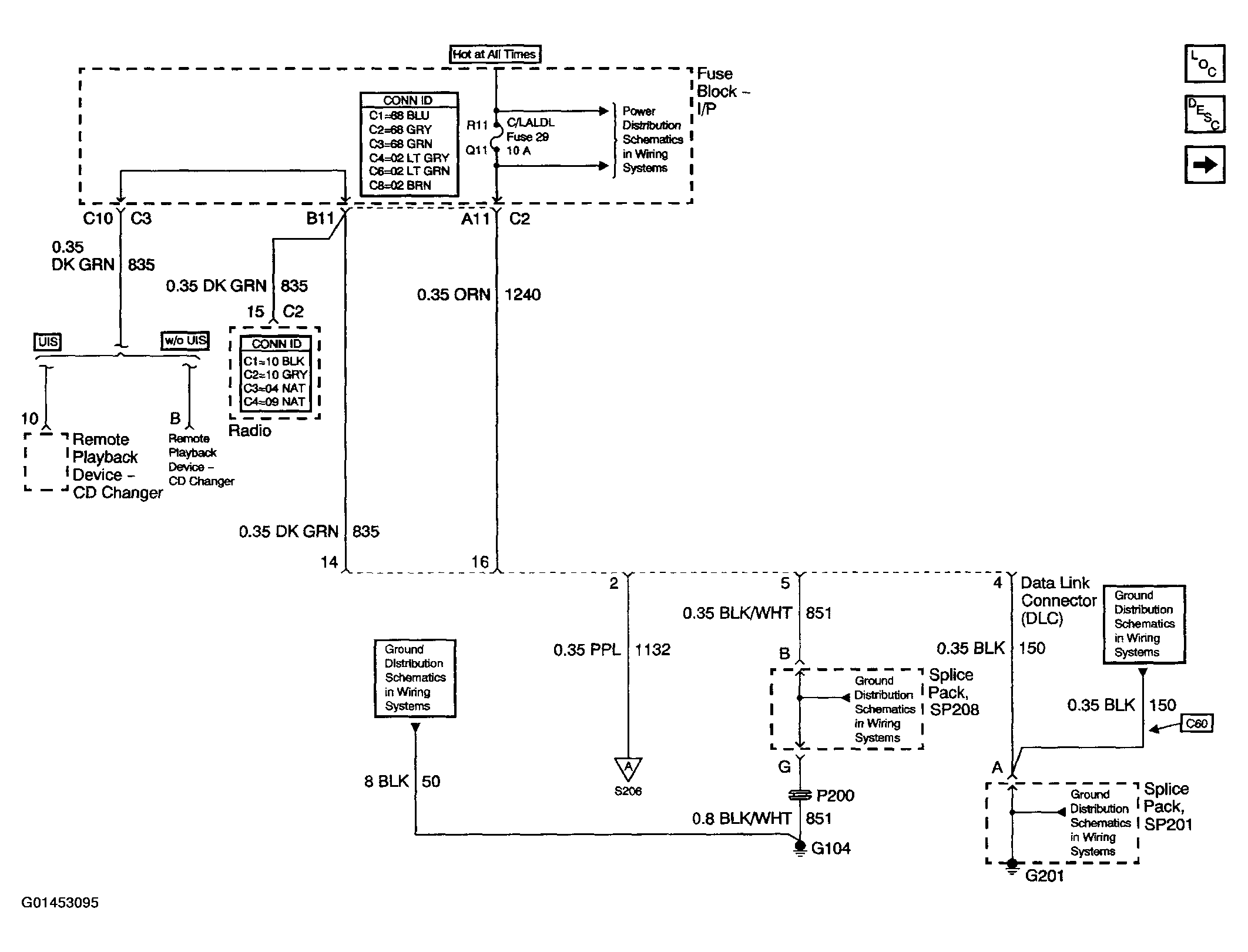

Fig 2: Data Link Connector (DLC) Schematics (Power & Ground)
Courtesy of GENERAL MOTORS CORP.

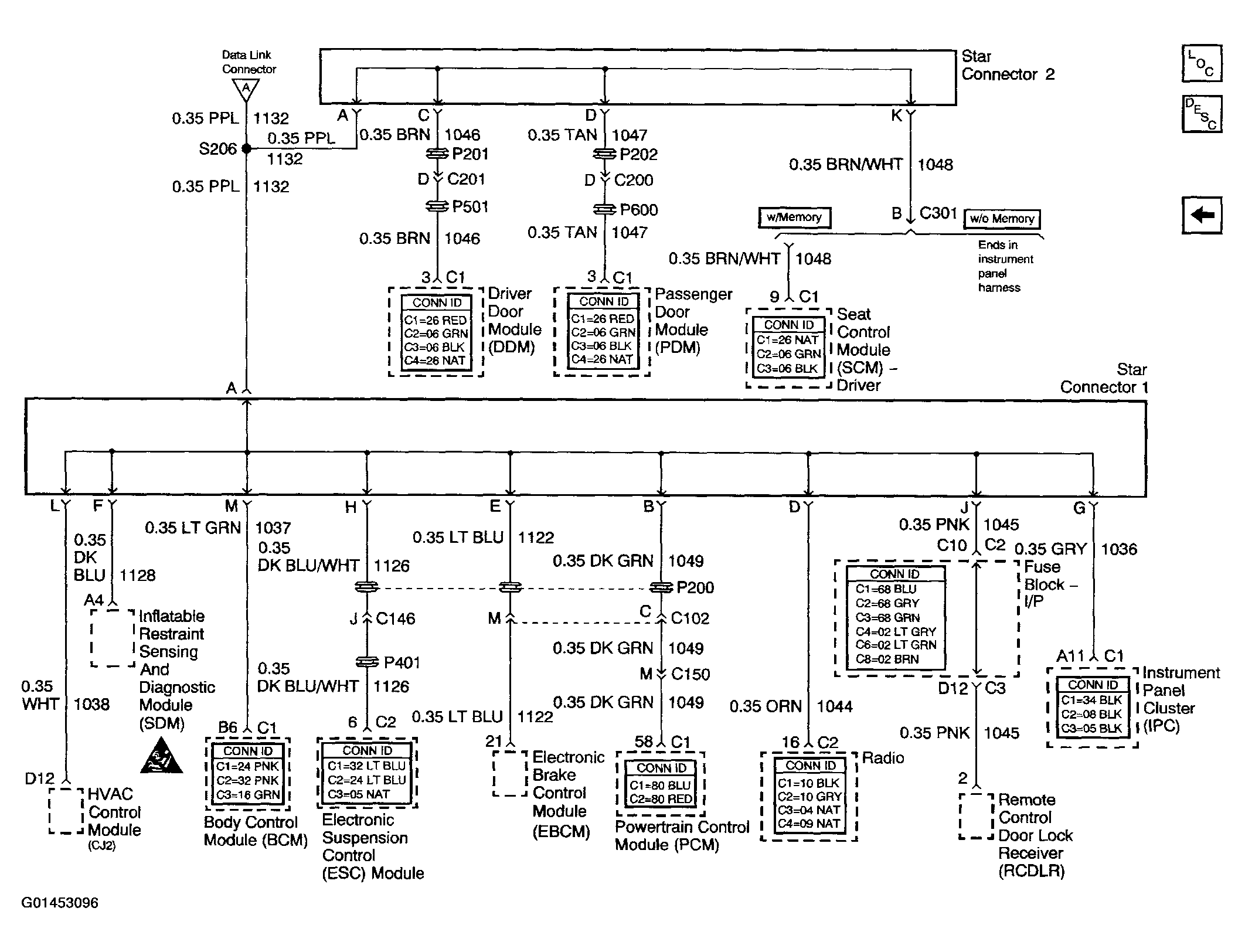

Fig 3: Data Link Connector (DLC) Schematics (Star Connectors)
