Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the stop lamp switch.
Adjust the stop lamp switch. Refer to STOP LAMP SWITCH ADJUSTMENT .

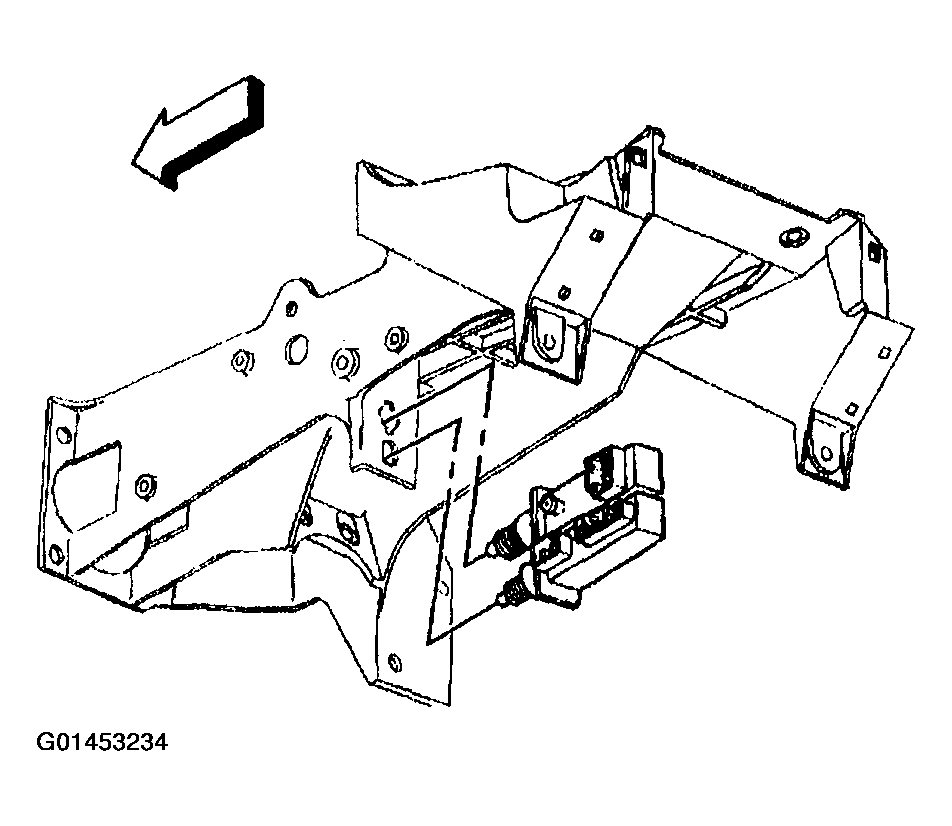

Fig 1: Stop Lamp Switch
Courtesy of GENERAL MOTORS CORP.
Connect the stop lamp switch connectors.
Install the I/P lower trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER in Instrument Panel, Gages, and Console.

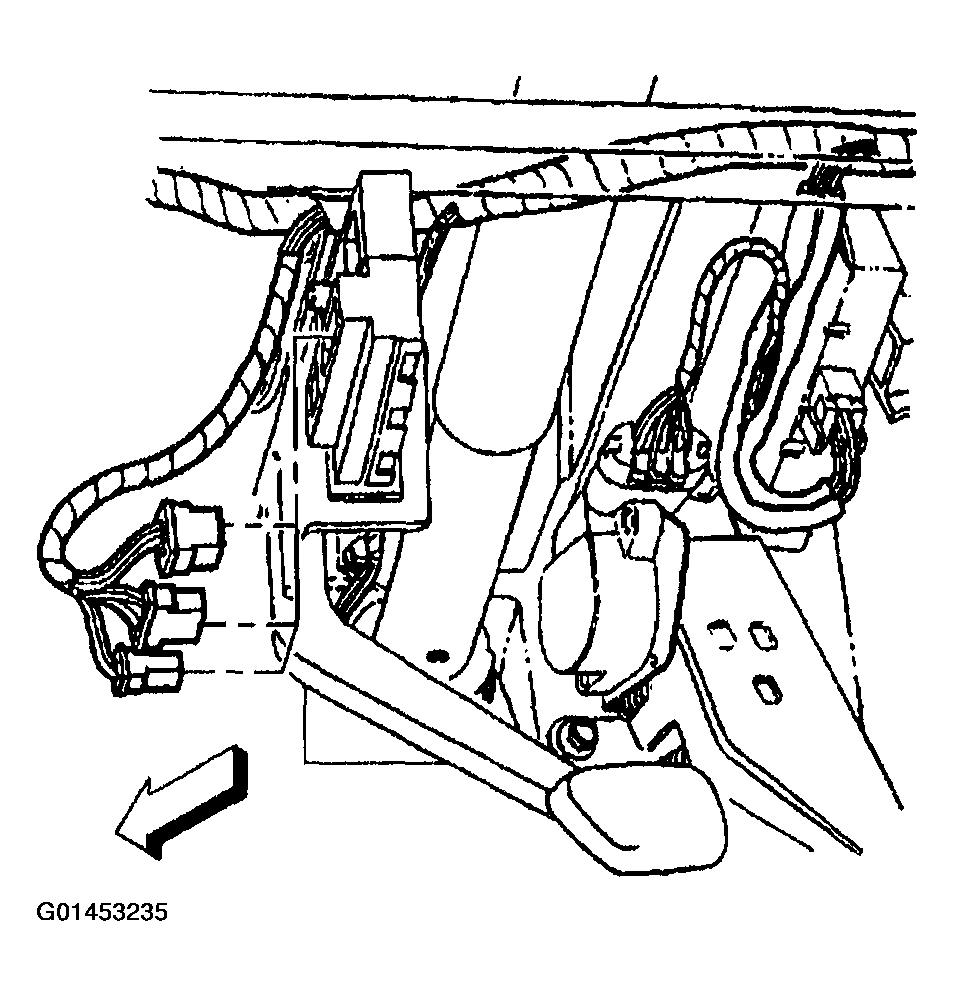

Fig 2: Connecting Stop Lamp Switch Connectors
Courtesy of GENERAL MOTORS CORP.
