Entertainment Connector End Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

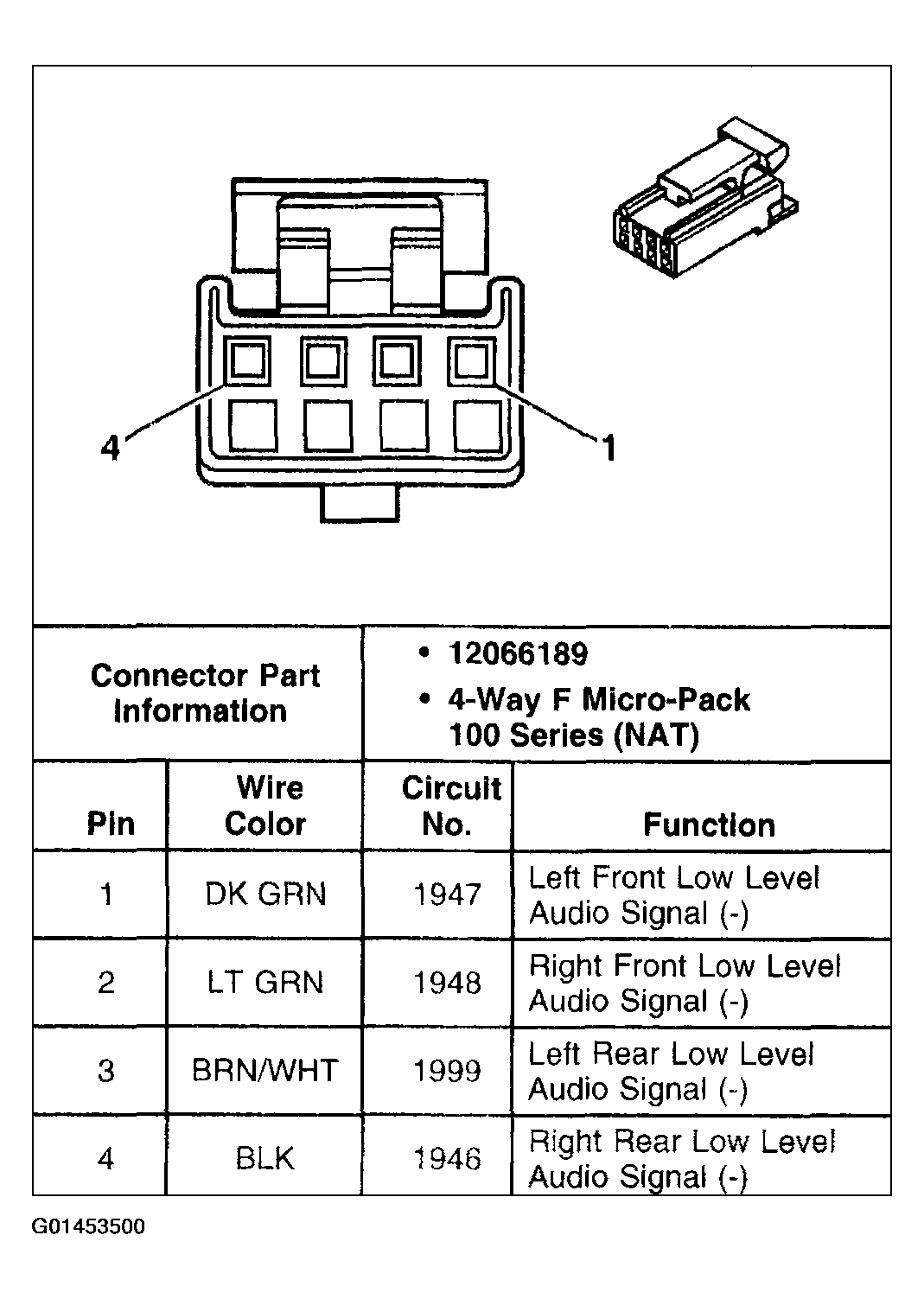

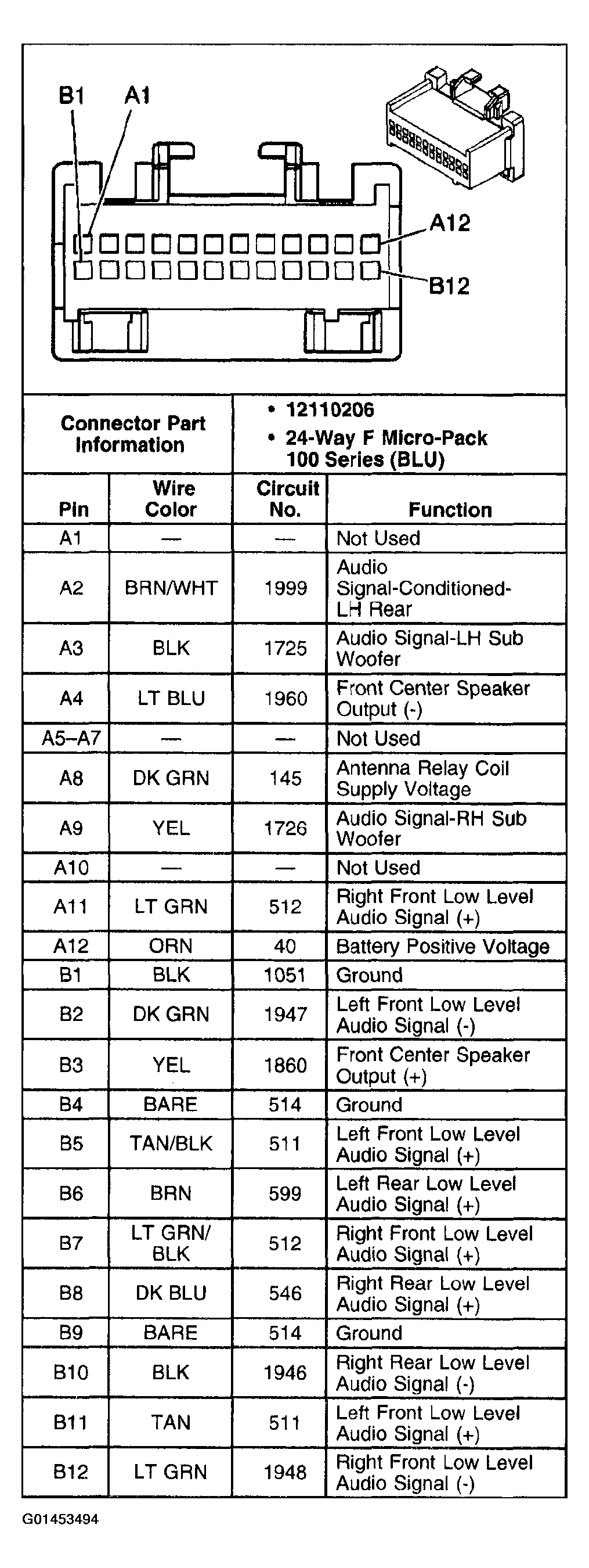

Fig 1: Bose® Signal Processor - Coupe

Courtesy of GENERAL MOTORS CORP.

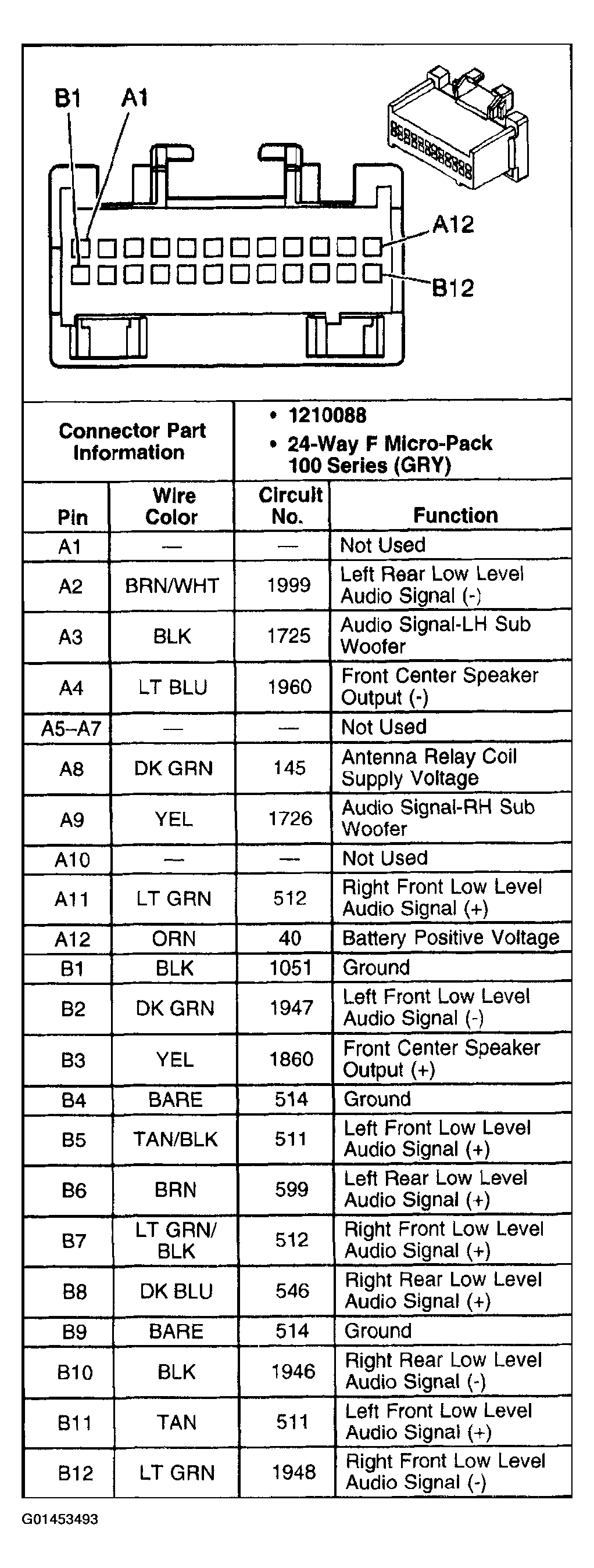

Fig 2: Bose® Signal Processor - Hardtop/Convertible

Courtesy of GENERAL MOTORS CORP.

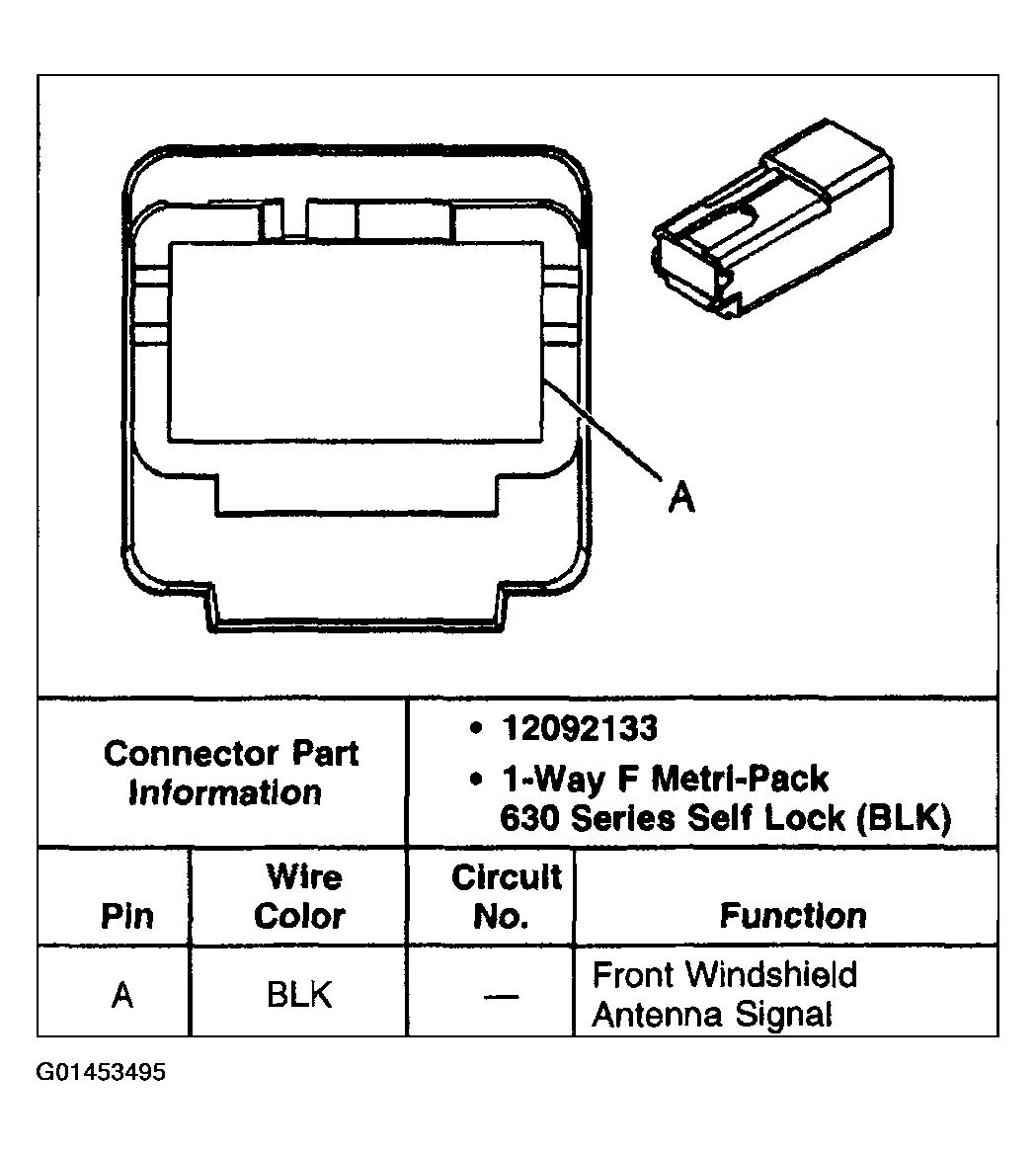

Fig 3: Front Window Antenna Connector

Courtesy of GENERAL MOTORS CORP.

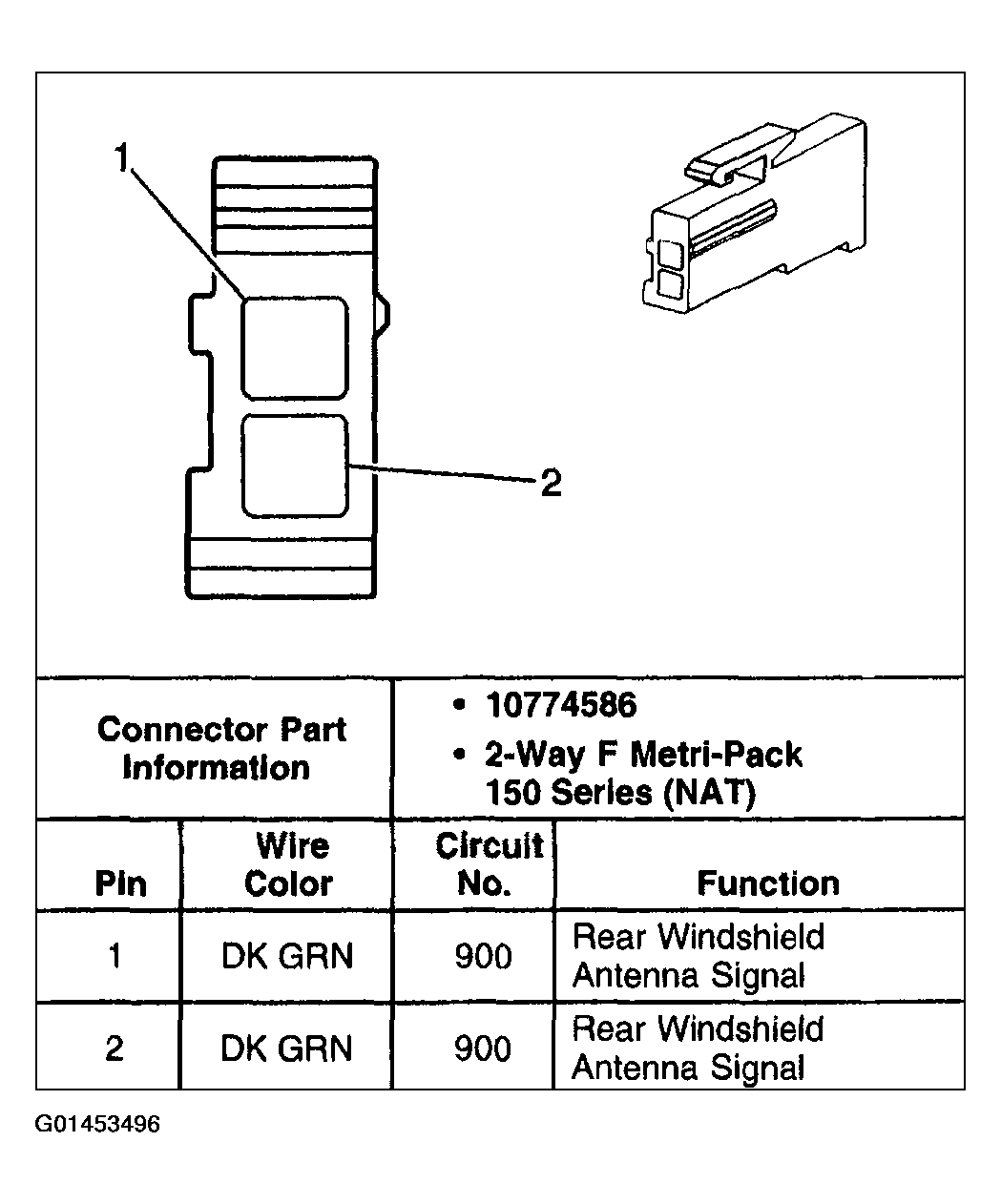

Fig 4: Radio Antenna Module C1 - Coupe

Courtesy of GENERAL MOTORS CORP.

Fig 5: Radio Antenna Module C2 - Coupe

Courtesy of GENERAL MOTORS CORP.

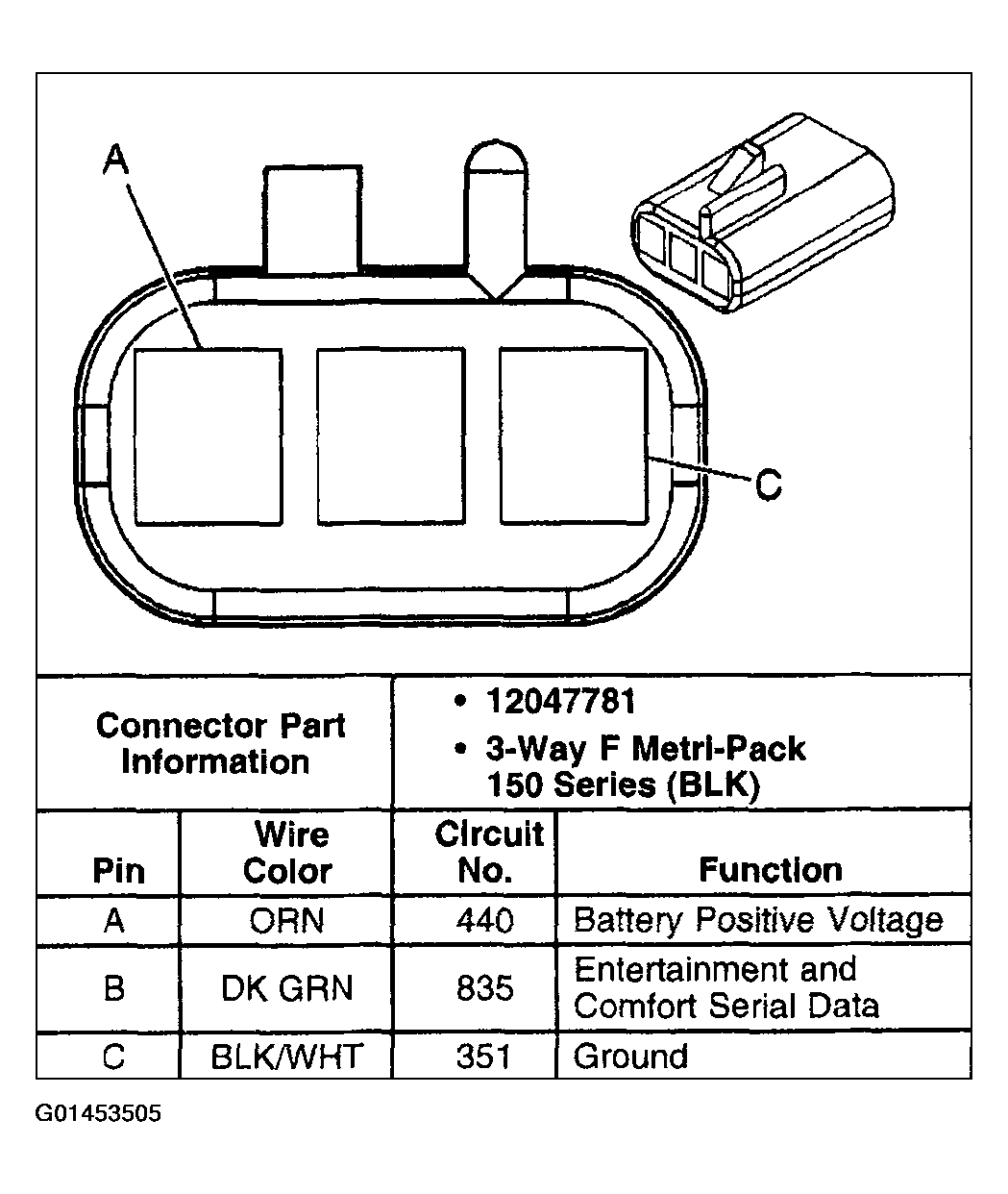

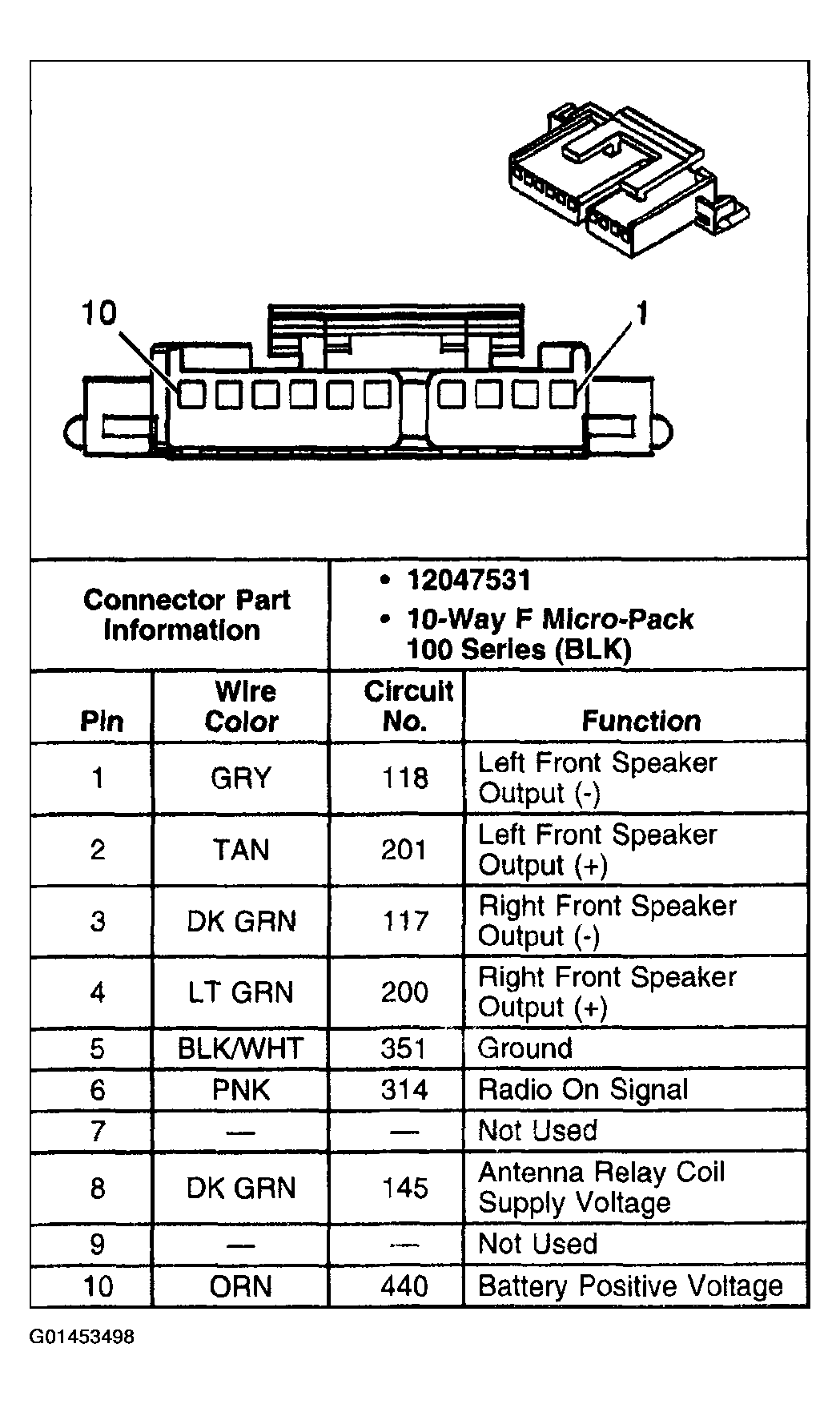

Fig 6: Radio C1

Courtesy of GENERAL MOTORS CORP.

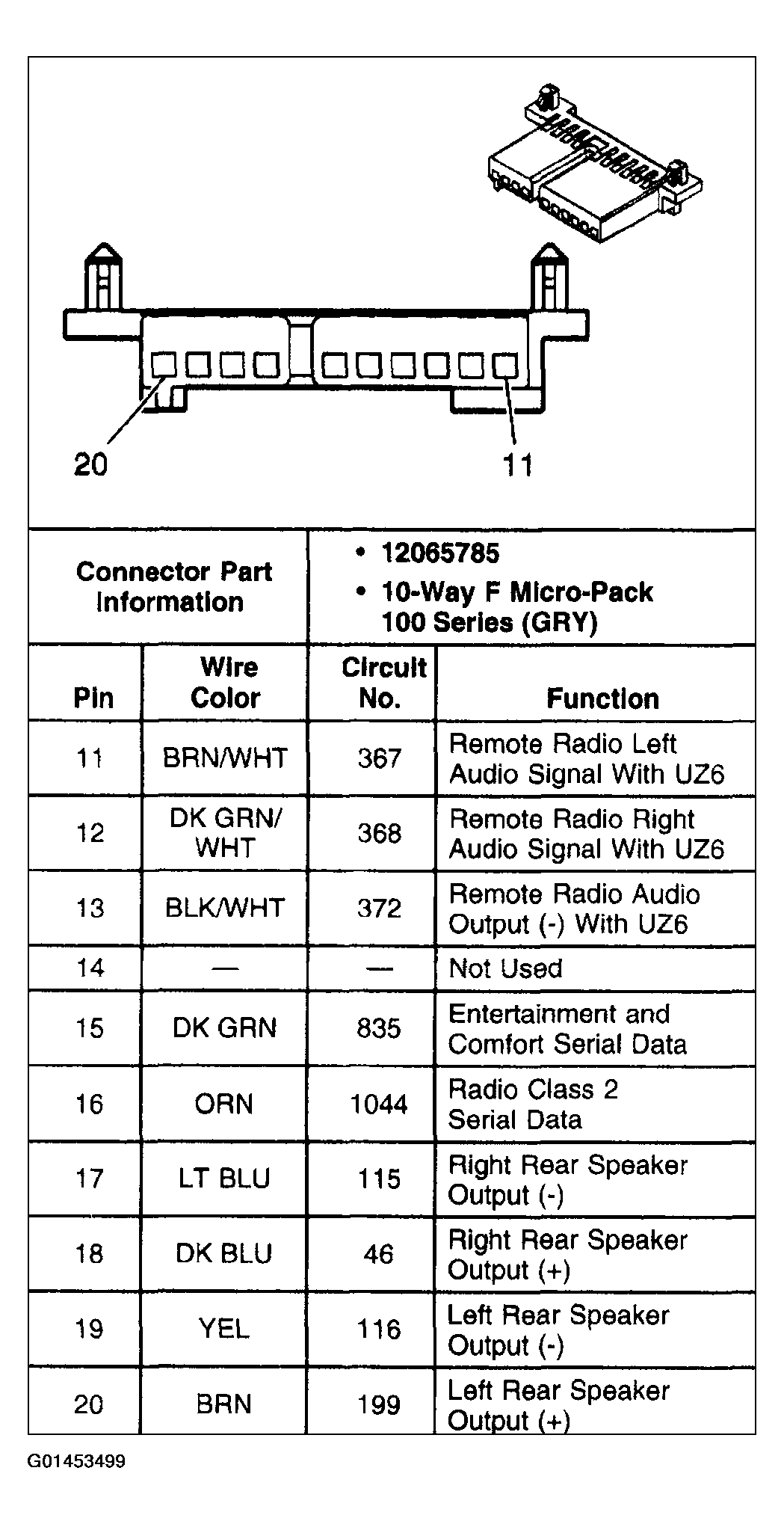

Fig 7: Radio C2

Courtesy of GENERAL MOTORS CORP.

Fig 8: Radio C3

Courtesy of GENERAL MOTORS CORP.

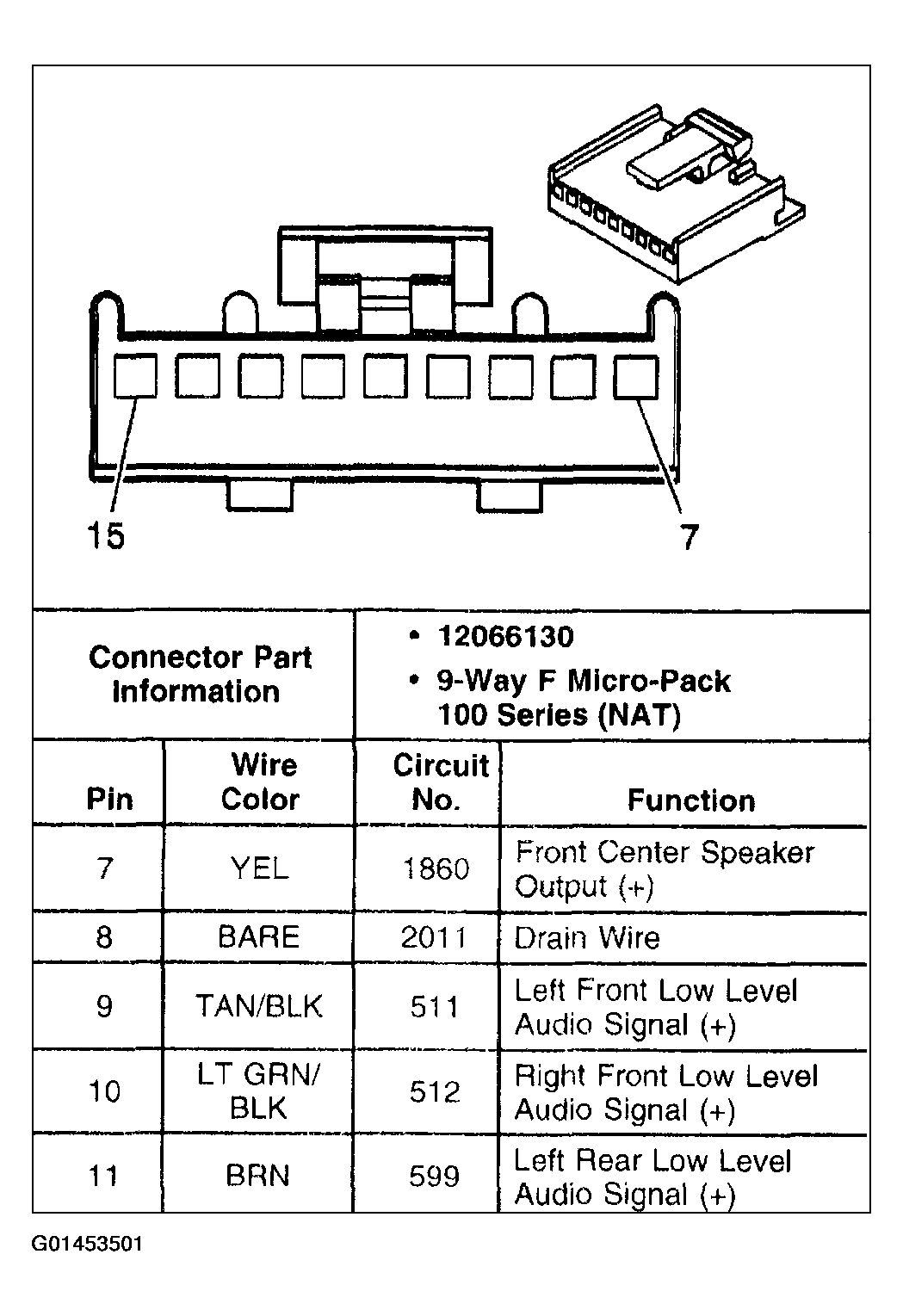

Fig 9: Radio C4 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

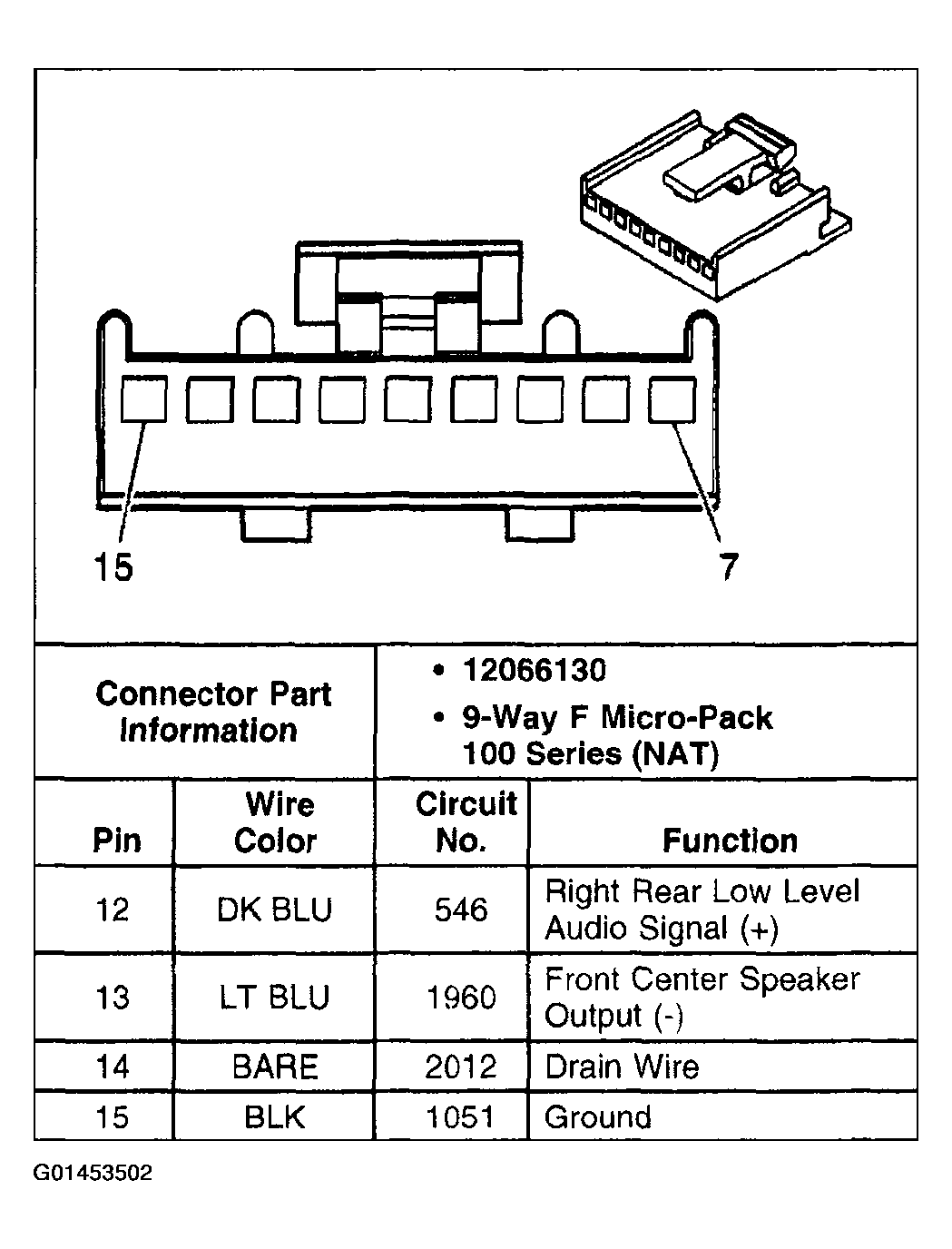

Fig 10: Radio C4 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

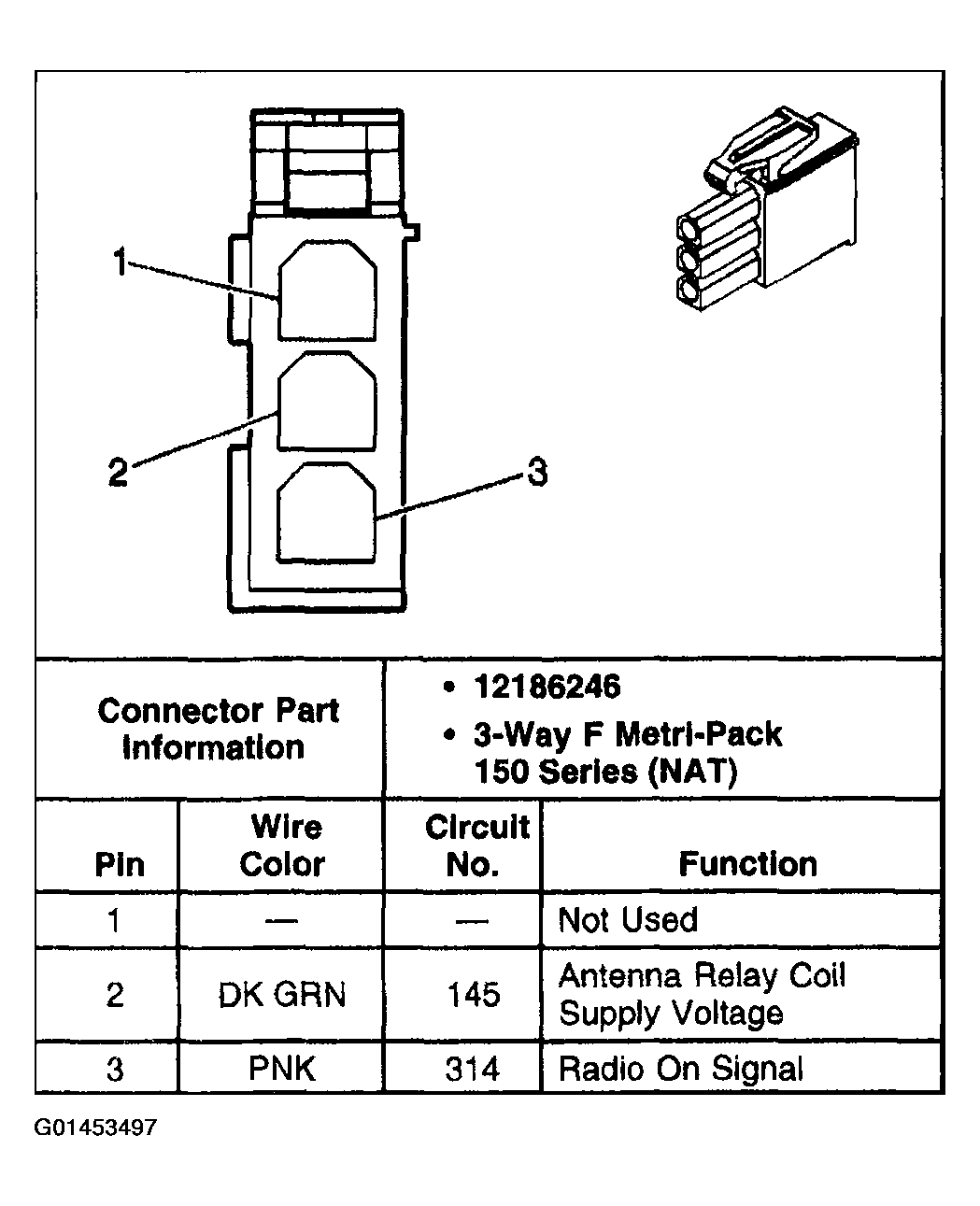

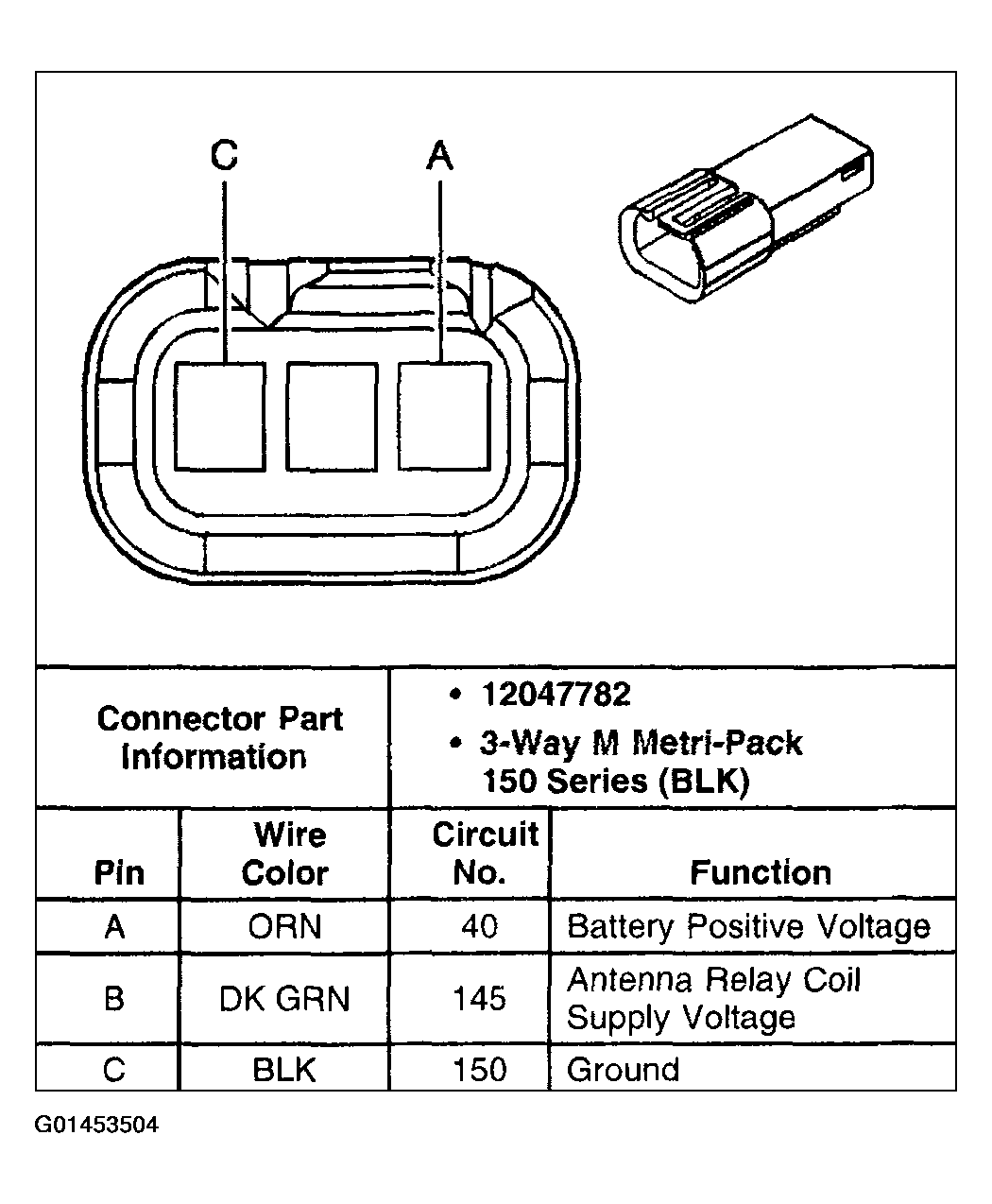

Fig 11: Radio Power Antenna - Convertible

Courtesy of GENERAL MOTORS CORP.

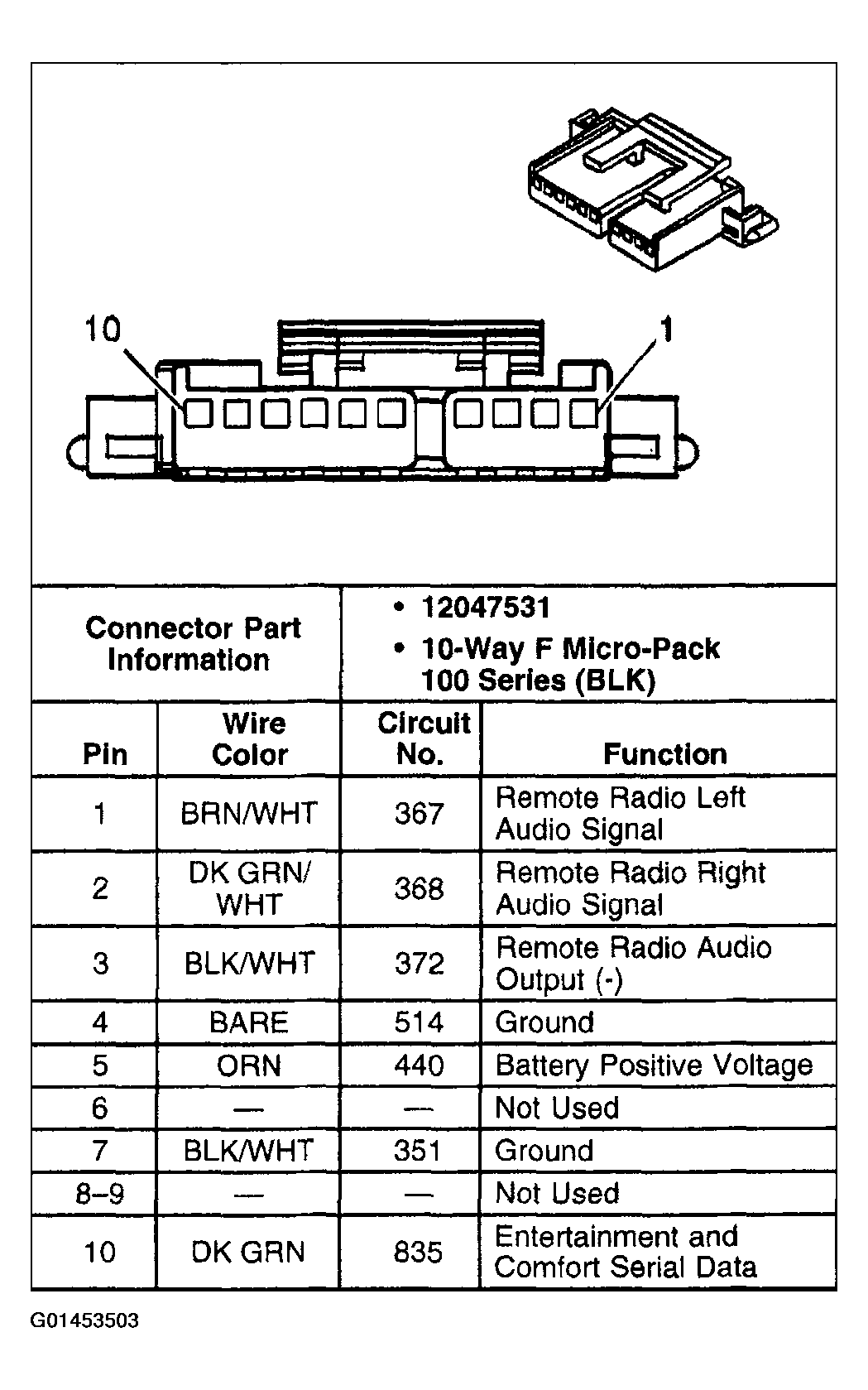

Fig 12: Remote Playback Device - CD Changer

Courtesy of GENERAL MOTORS CORP.

Fig 13: Remote Playback Device - CD Changer - Dealer Installed

Courtesy of GENERAL MOTORS CORP.

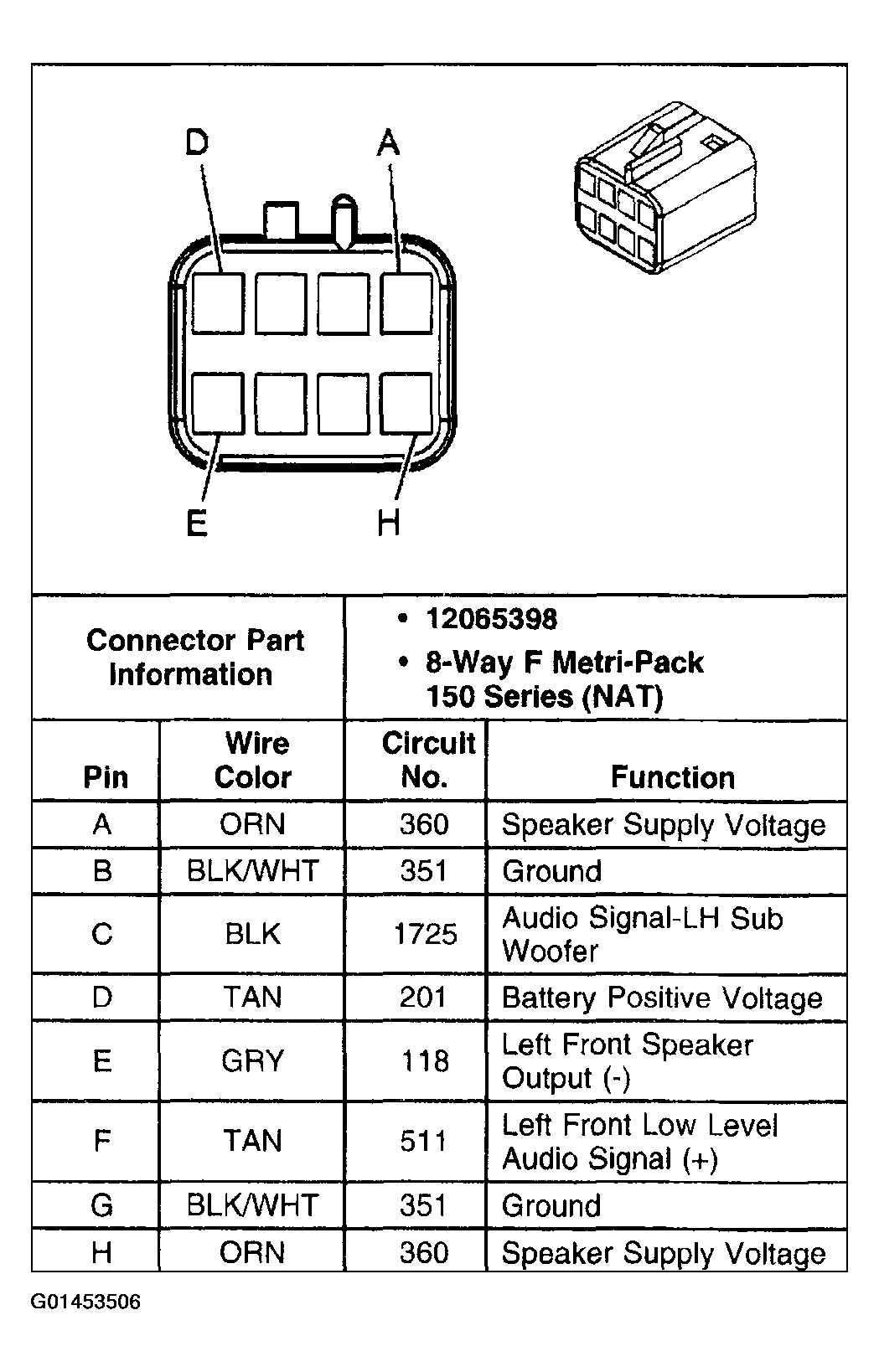

Fig 14: Speaker - LF Door

Courtesy of GENERAL MOTORS CORP.

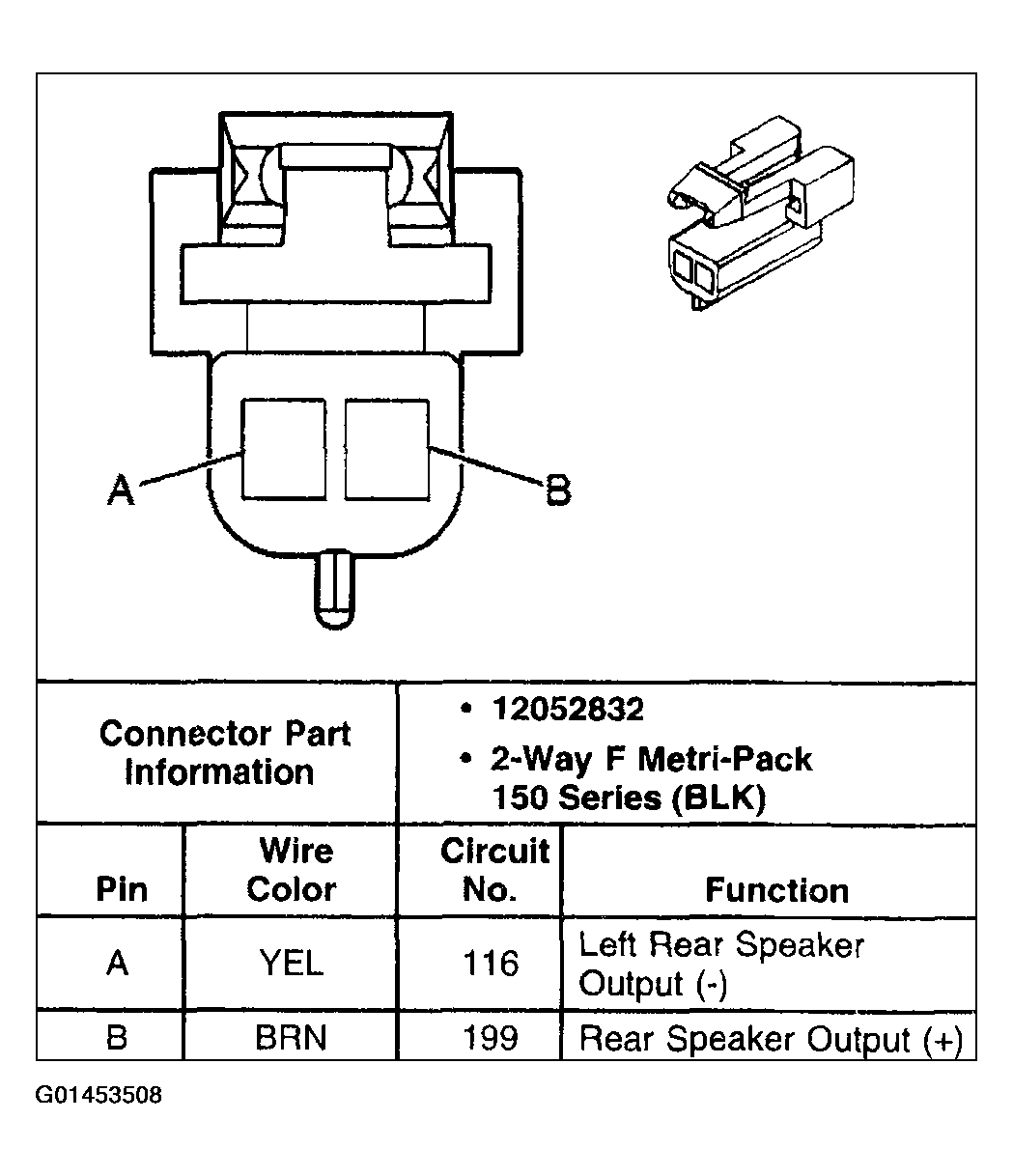

Fig 15: Speaker - LR

Courtesy of GENERAL MOTORS CORP.

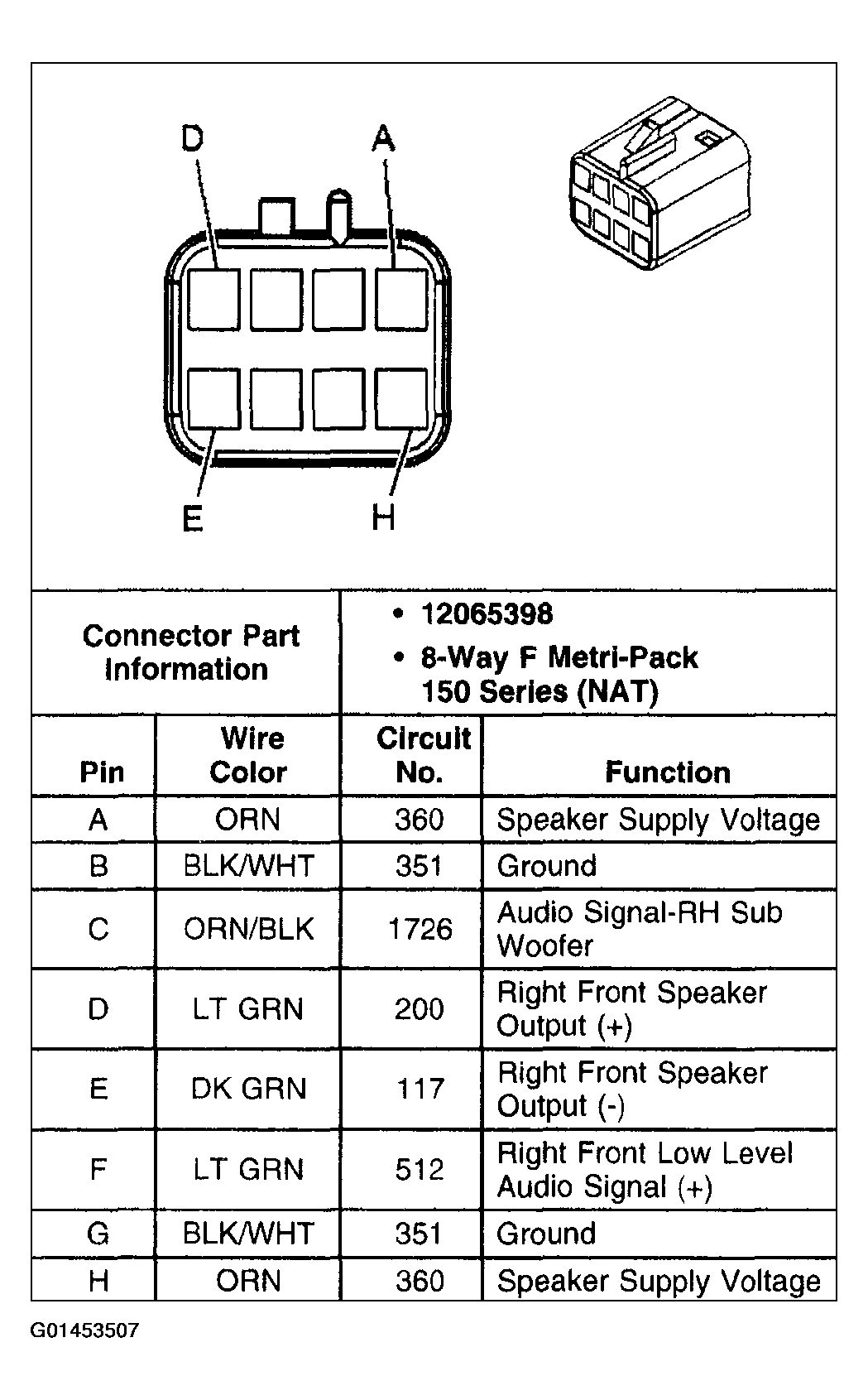

Fig 16: Speaker - RF Door

Courtesy of GENERAL MOTORS CORP.

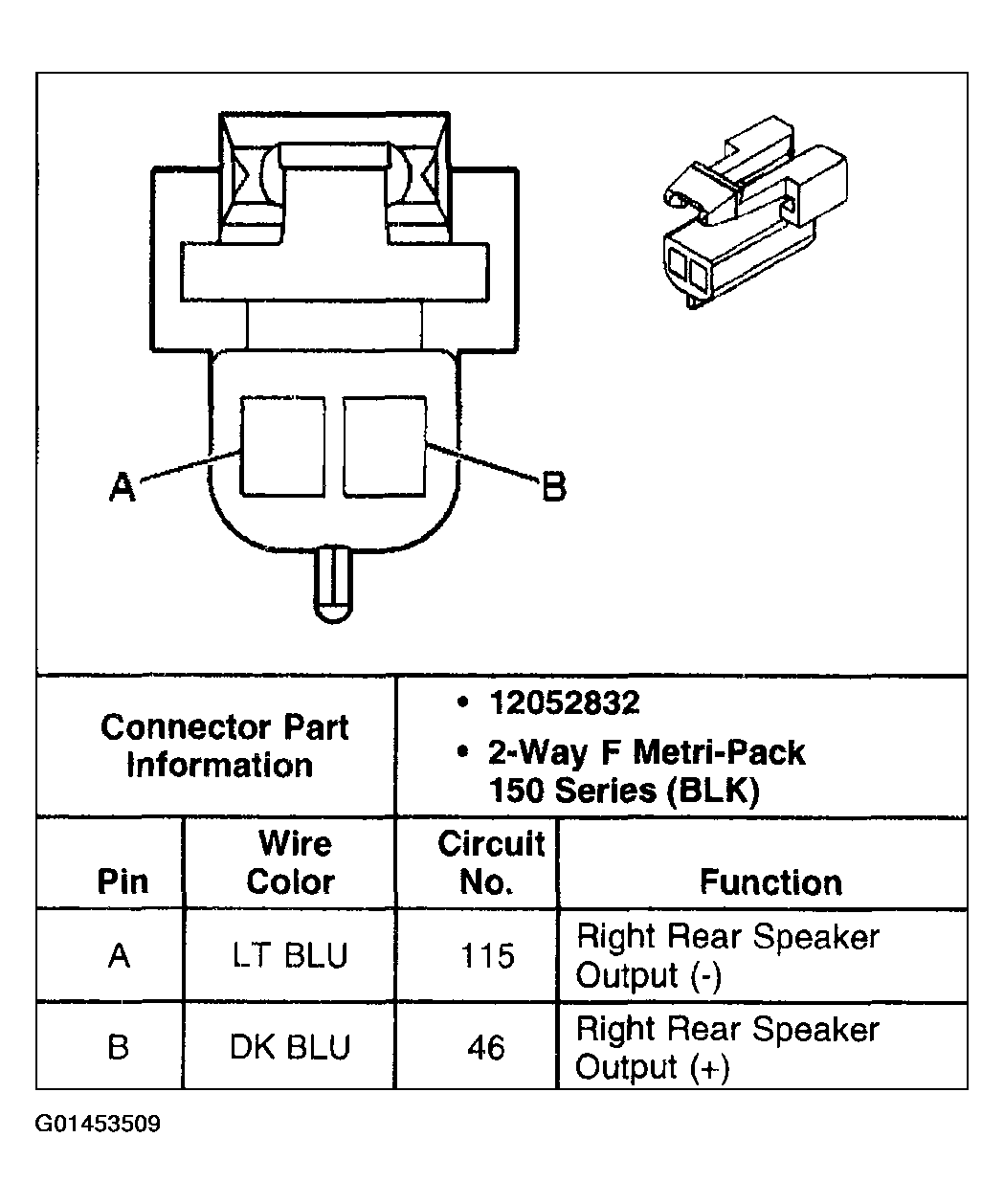

Fig 17: Speaker - RR

Courtesy of GENERAL MOTORS CORP.
