Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

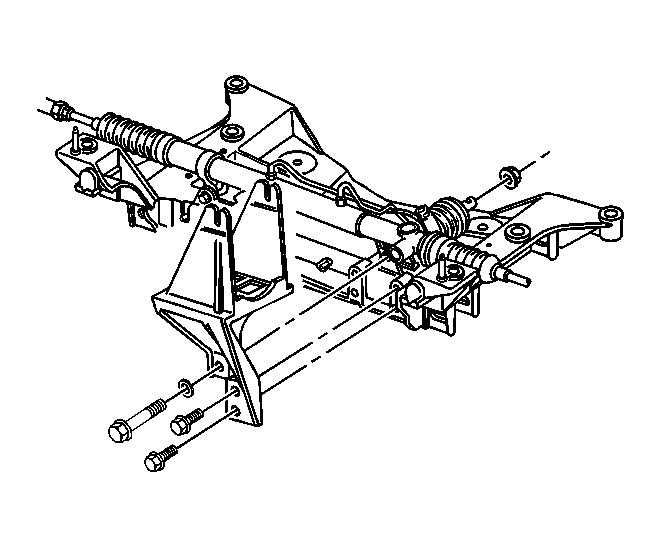

    Fig 1: Steering Gear Nut & BPMV Bracket
    GM692288Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the EBCM/BPMV bracket to the crossmember.
  2. Install the two bracket bolts to the EBCM/BPMV bracket.

    Tighten:  Tighten the bolts to 27 N.m (20 lb ft).

  3. Install the steering gear bolt and nut.

    Tighten:  Tighten the nut to 100 N.m (74 lb ft).

  4. Lower the vehicle.
    5. Fig 2: EBCM Harness Connector & Bracket
    GM707000Courtesy of GENERAL MOTORS CORP.
  5. Install the EBCM/BPMV assembly into the bracket.
  6. Install the insulator nuts (1) to the EBCM/BPMV assembly.

    Tighten:  Tighten the nuts to 12 N.m (106 lb in).
