Installation Procedure
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the BPMV seal surface with alcohol using a clean rag.
- Install the seal to the BPMV, if it is not cut or damaged.
- Install the EBCM to the BPMV.
- Tighten the mounting bolts in the following sequence:
Tighten:
- First pass to 3 N.m (27 lb in).
- Second pass to 6 N.m (53 lb in).
- Install the EBCM/BPMV insulator mounting bolt.
Tighten: Tighten the bolt to 14 N.m (10 lb ft).
- Install the EBCM/BPMV into the bracket on the vehicle.
- Install the two insulator nuts (1).
Tighten: Tighten the to 12 N.m (106 lb in).
- Connect the brake fluid pressure sensor electrical connector (2).

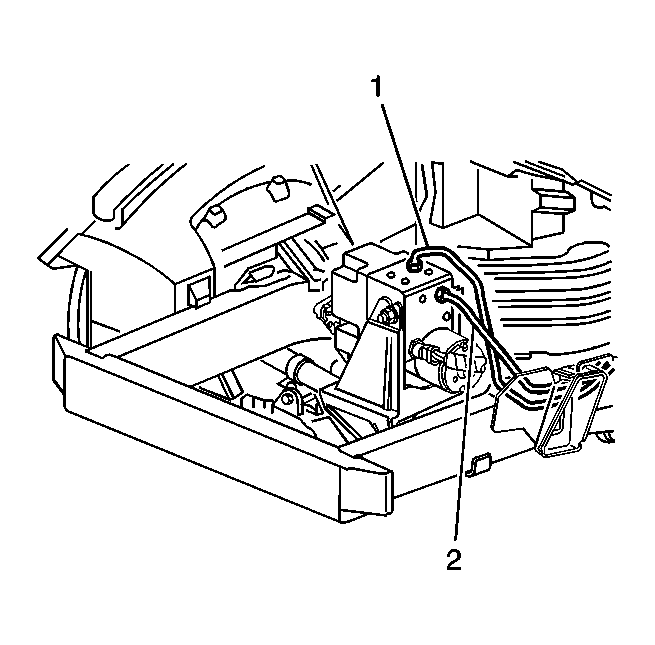

- Install the brake pipes from the rear brake calipers (1, 2) to the BPMV in the same location as removed.
Tighten: Tighten the brake pipe fittings to 16 N.m (12 lb ft).

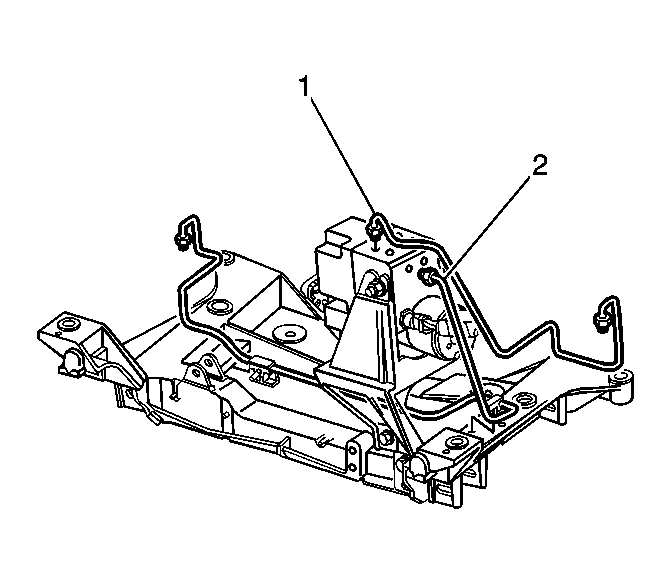

- Install the brake pipes from the front brake calipers (1, 2) to the BPMV in the same location as removed.
Tighten: Tighten the brake pipe fittings to 16 N.m (12 lb ft).

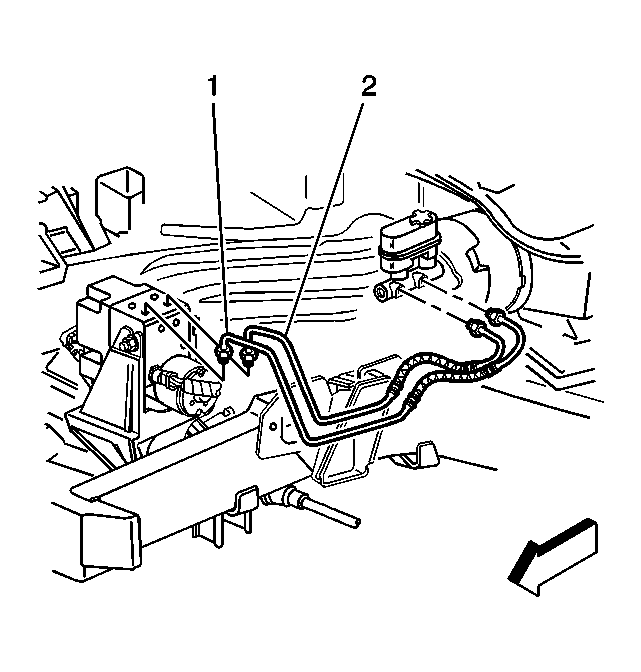

- Install the brake pipes from the master cylinder (1, 2) to the BPMV in the same location as removed.
Tighten: Tighten the brake pipe fittings to 16 N.m (12 lb ft).
- Connect the BPMV pump motor ground.
- Connect the EBCM harness connector.IMPORTANT: Both sides of the EBCM harness connector must be engaged with lever before closing.
- Turn the ignition switch to the ON position; do NOT start the engine.
- Fill and bleed the hydraulic brake system. Refer to Master Cylinder Reservoir Filling and Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) in Hydraulic Brakes.
- Perform the Automated Bleed Procedure. Refer to ABS Automated Bleed Procedure .
- Perform the Diagnostic System Check - ABS .
IMPORTANT:
When installing a new BPMV, do NOT remove the shipping plugs from the outlets until after installation into the vehicle.
NOTE:
Refer to Fastener Notice in Cautions and Notices.
