Cigar Lighter
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

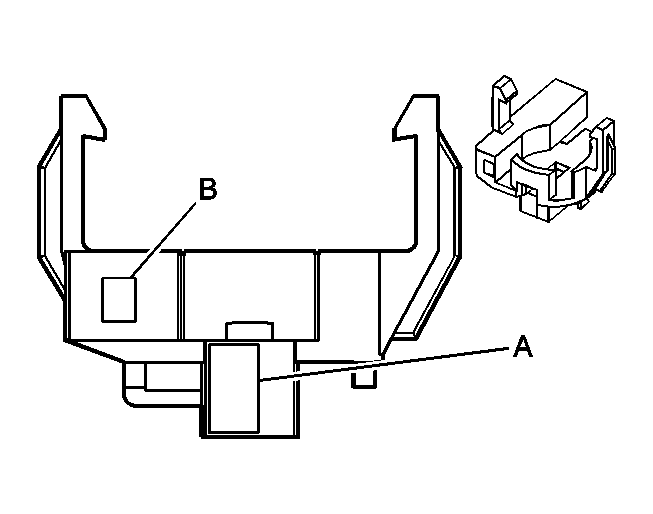

Cigar Lighter Terminal Identification
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12047699
- 2-Way Miscellaneous Family Series (GRY)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
ORN |
840 |
Battery Positive Voltage |
| B |
BLK |
150 |
Ground |
