Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

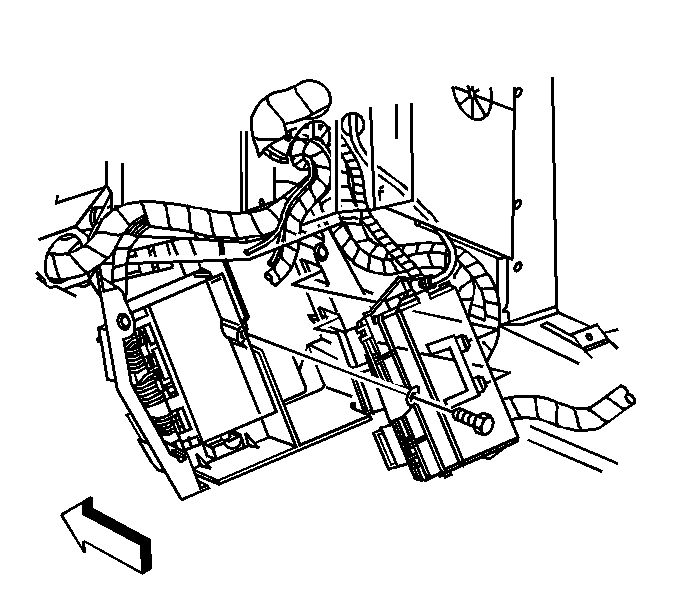

    Fig 1: Electrical Wiring Junction Block, I/P Wiring Harness Connectors & 3 64-Way Block Connectors
    GM820743Courtesy of GENERAL MOTORS CORP.
  1. Position the electrical wiring junction block and connect 3 I/P wiring harness connectors and 3 64-way block connectors.
  2. Install the electrical wiring junction block to the multi-use bracket with the retaining bolt.
  3. Install the battery cable lead.
  4. Install the floor kick-up pad on the passenger side. Refer to Kick-Up Panel Replacement - Front Floor in Interior Trim.
  5. Install the right door sill plate. Refer to Door Sill Plate Replacement in Interior Trim.
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
