Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

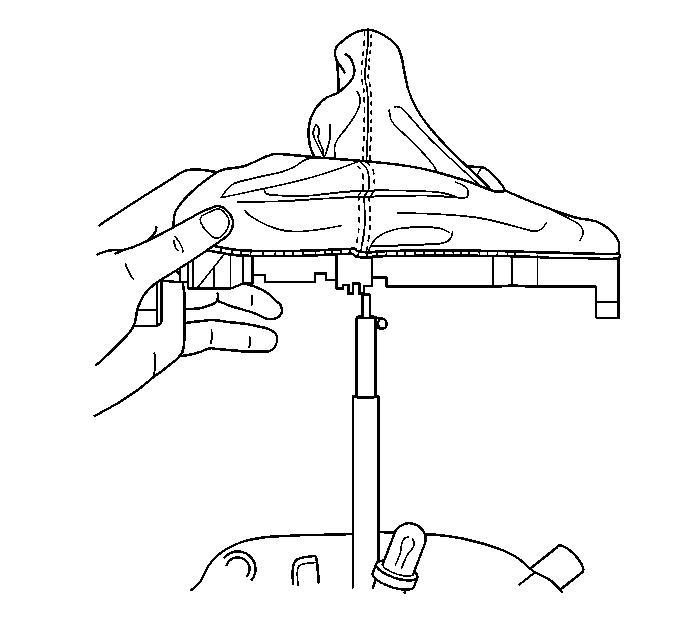

Fig 1: Bulb To Lamp Socket

Courtesy of GENERAL MOTORS CORP.

Install the bulb to the socket.
Install the socket to the shift boot assembly.
Install the shift boot to the floor shift control. Refer to Floor Shift Control Boot Replacement in Automatic Transmission - 4L60-E.

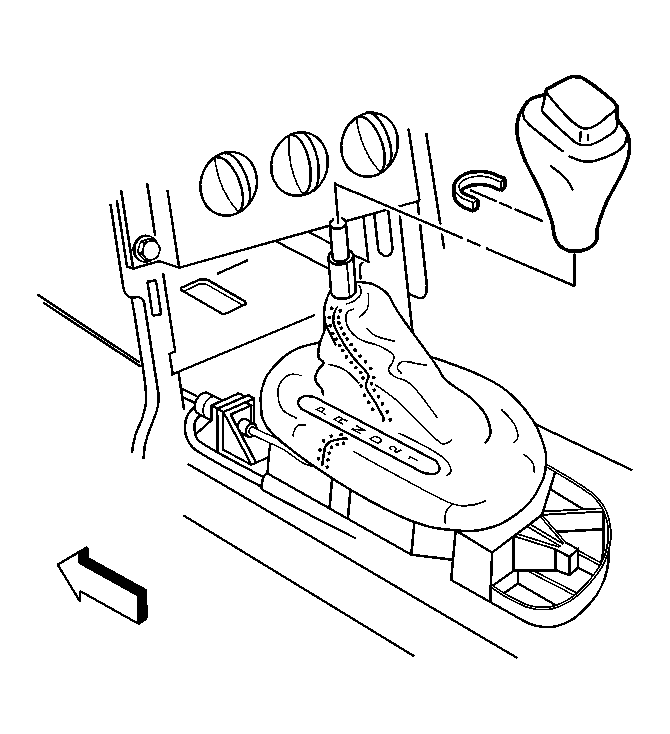

Fig 2: Floor Shift Control To Console

Courtesy of GENERAL MOTORS CORP.

Install the floor shift control to the console. Refer to Floor Shift Control Replacement in Automatic Transmission - 4L60-E.
