SIR Connector End Views

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Inflatable Restraint Terminal Identification I/P Module

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12110505 2-Way F Metri-Pack 150 Series (YEL)
Pin	Wire Color	Circuit No.	Function
A	WHT/BLK	1403	I/P Module - High Control
B	DK GRN/WHT	1404	I/P Module - Low Control

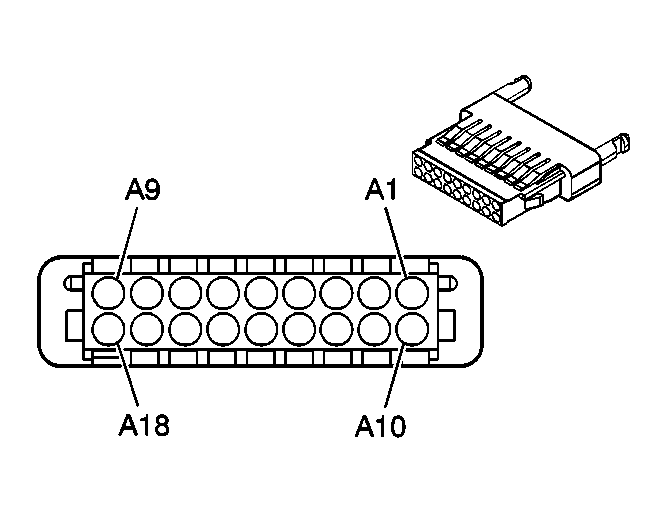

Inflatable Restraint Sensing And Diagnostic Module Terminal Identification (SDM)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15357037 18-Way F Micro-Pack 100 Series Sealed (NAT)
Pin	Wire Color	Circuit No.	Function
A1	YEL	1139	Ignition 1 Voltage
A2	-	-	Not Used
A3	WHT/BLK	1403	I/P Module - High Control
A4	DK BLU	1128	SDM Class 2 Serial Data
A5	-	-	Not Used
A6	WHT	347	Steering Wheel Module - High Control
A7	DK GRN	348	Steering Wheel Module - Low Control
A8	DK GRN/WHT	1404	I/P Module - Low Control
A9	PNK	353	I/P Module Suppression Indicator Control
A10	TAN/BLK	371	I/P Module Disable Switch - Signal
A11-A14	-	-	Not Used
A15	BLK/WHT	238	Seat Belt Switch - Left
A16-A17	-	-	Not Used
A18	BLK/WHT	851	Ground

Inflatable Restraint I/P Module Disable Switch LED Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12047662 2-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	LT BLU	1803	I/P Module Suppression Indicator - Supply
B	PNK	353	I/P Module Suppression Indicator Control

Inflatable Restraint I/P Module Disable Switch Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15305286 6-Way F Metri-Pack 150 Series (YEL)
Pin	Wire Color	Circuit No.	Function
A	TAN/BLK	371	I/P Module Disable Switch - Signal
B	YEL	1139	Ignition 1 Voltage
C	BRN	9	Park Lamp Supply Voltage
D	-	-	Not Used
E	LT BLU	1803	I/P Module Suppression Indicator - Supply
F	BLK/WHT	851	Ground
