Cooling System Connector End Views
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

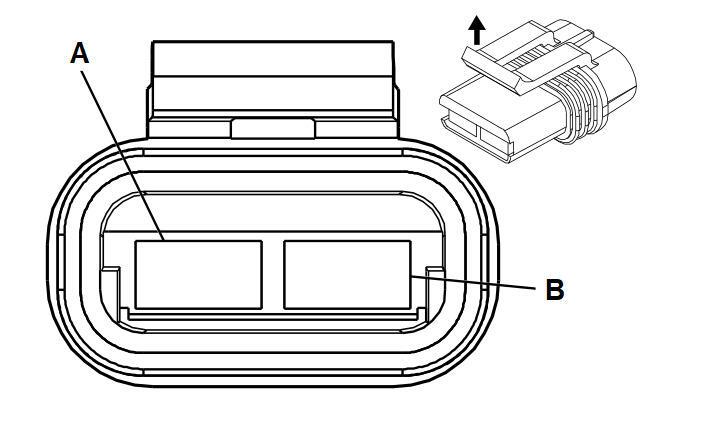

Cooling Fan Terminal Identification - Left
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GRY | 532 | Cooling Fan Motor Low Reference |
| B | LT BLU | 409 | Cooling Fan Motor Supply Voltage |
Cooling Fan Terminal Identification - Right
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BLK | 250 | Ground |
| B | WHT | 504 | Cooling Fan Motor Supply Voltage |
