Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the rear fog lamp assembly by inserting the bulb and twisting the bulb clockwise.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the rear fog lamp lens (1) retaining screws (2).

    Tighten

    Tighten the screws (2) to 2 N.m (18 lb in).

  3. Inspect the operation of the rear fog lamp.

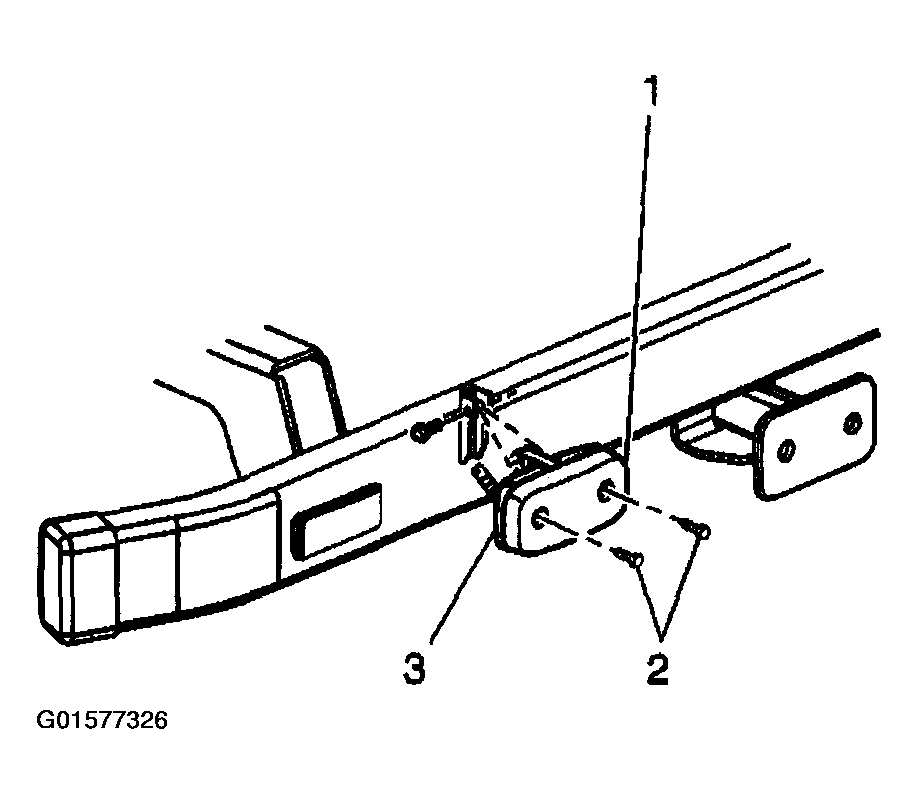

    Fig 1: Installing Rear Fog Lamp Lens & Screws
    G01577326Courtesy of GENERAL MOTORS CORP.
