Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel bezel. Refer to BEZEL REPLACEMENT-INSTRUMENT PANEL (I/P) CLUSTER .
  2. Pull out the accessary switch housing.
  3. Disconnect the electrical connectors.
  4. Remove the fog lamp switch from the accessary switch housing.

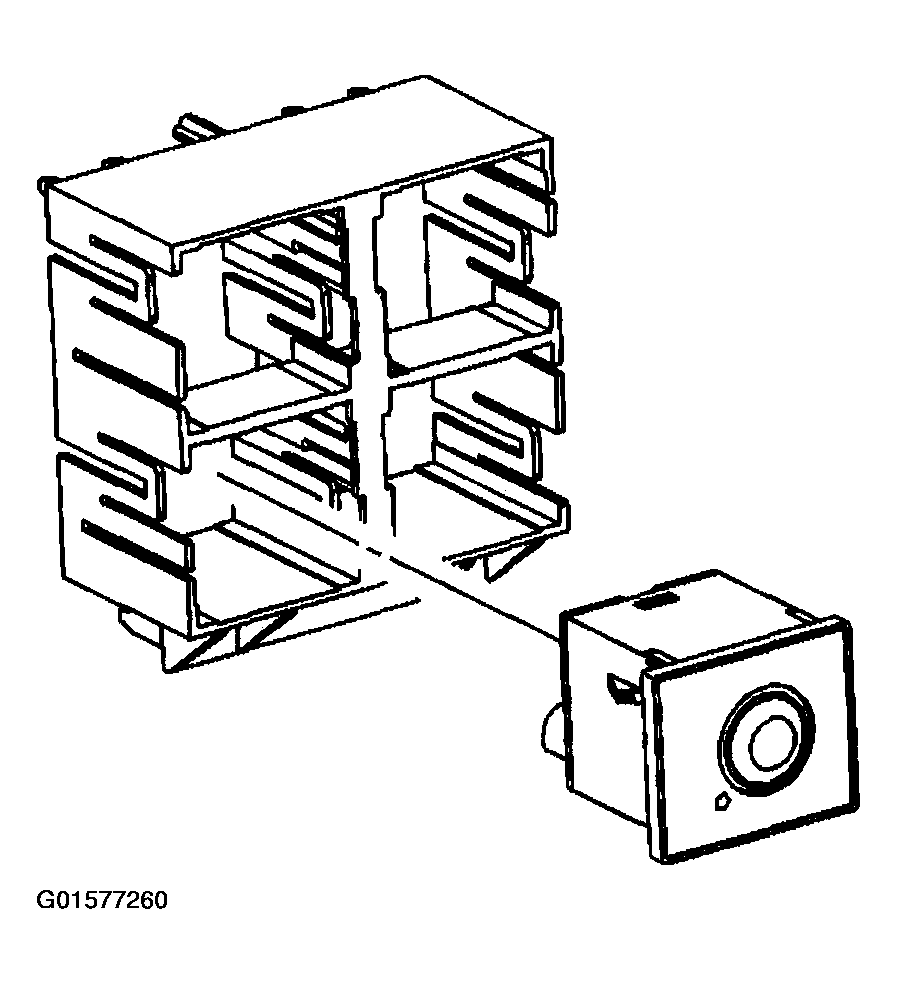

    Fig 1: Removing Rear Fog Lamp Switch
    G01577260Courtesy of GENERAL MOTORS CORP.
