Radio/Audio System Description and Operation: Notes

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The Entertainment System on this vehicle is configured with a radio, antenna, and speakers.

The following list shows the radios available for this vehicle:

Radio (UM7)-AM/FM with Cassette
Radio (UB0)-AM/FM with CD
Radio (UB1)-AM/FM, Cassette and CD
Radio (UC6)-AM/FM, Integral Multi Disc CD Changer

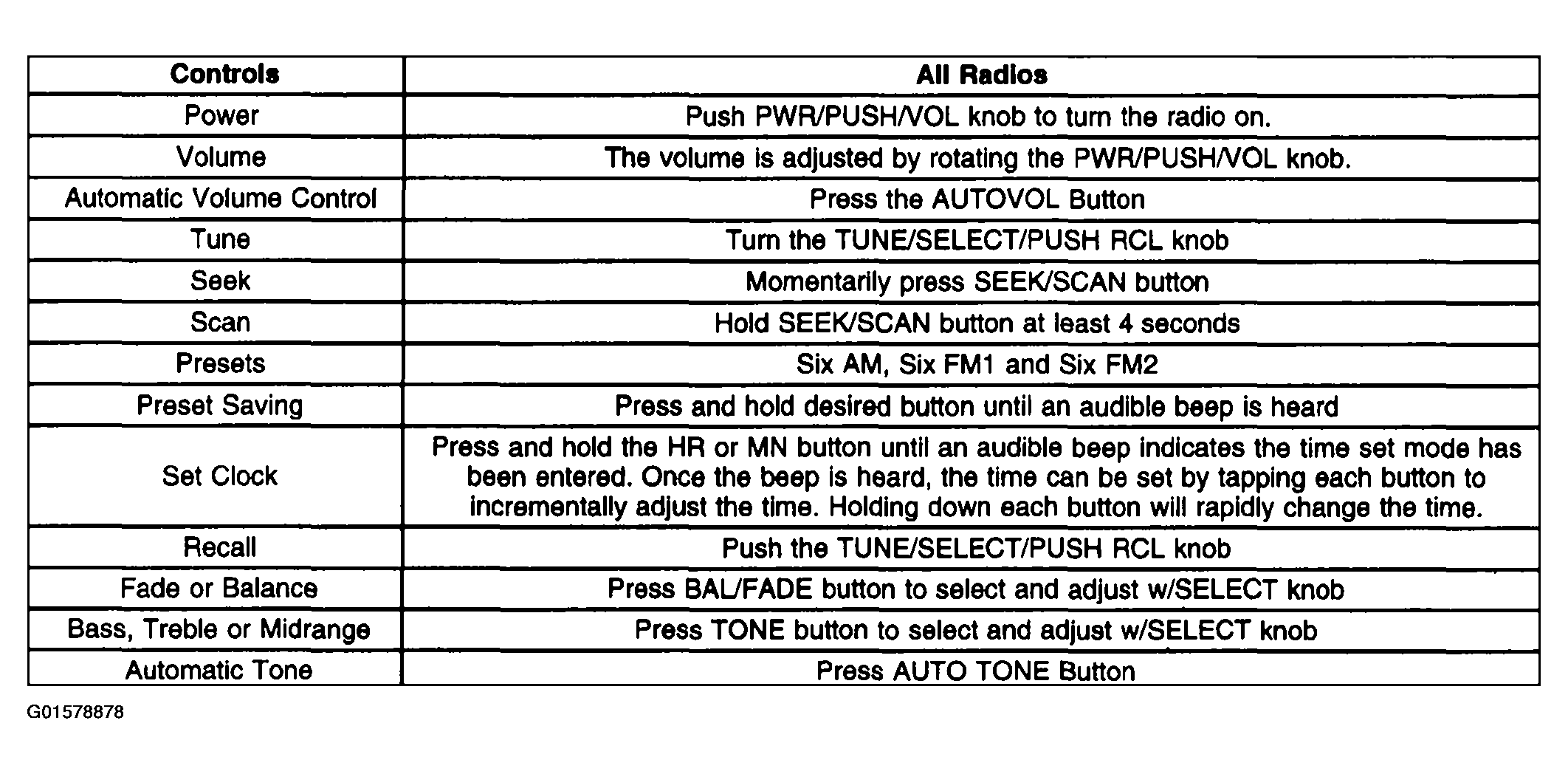

Fig 1: Radio Features

Courtesy of GENERAL MOTORS CORP.

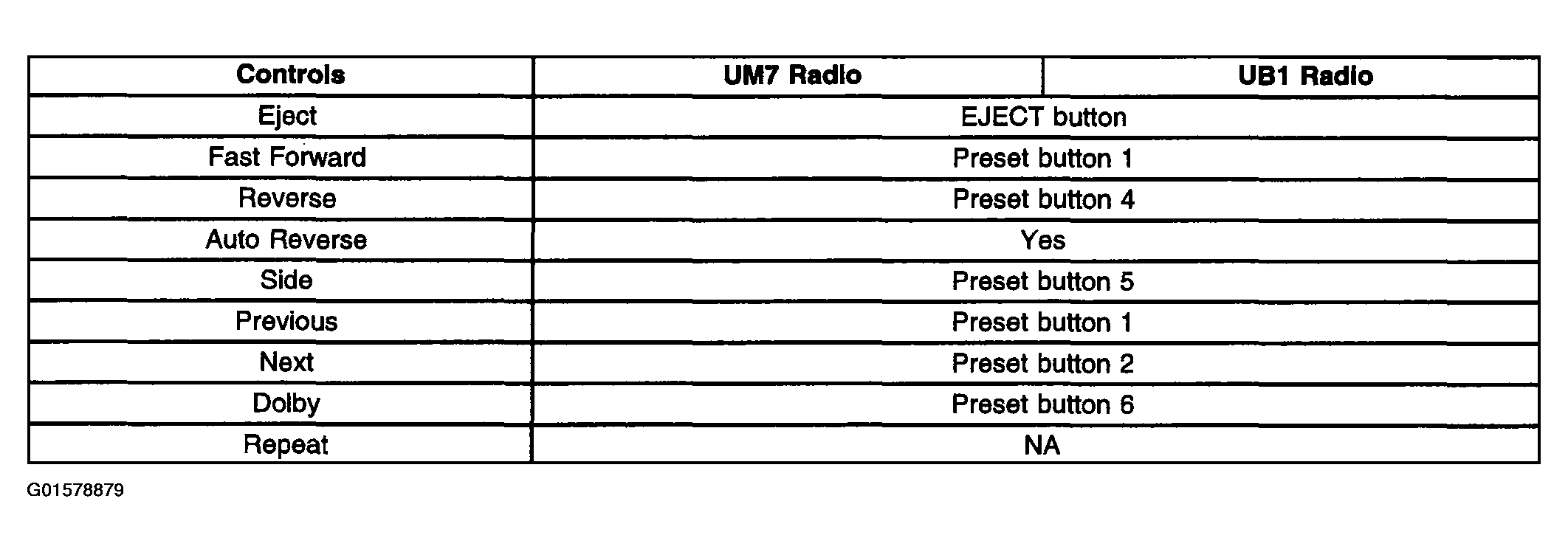

Fig 2: Cassette Features

Courtesy of GENERAL MOTORS CORP.

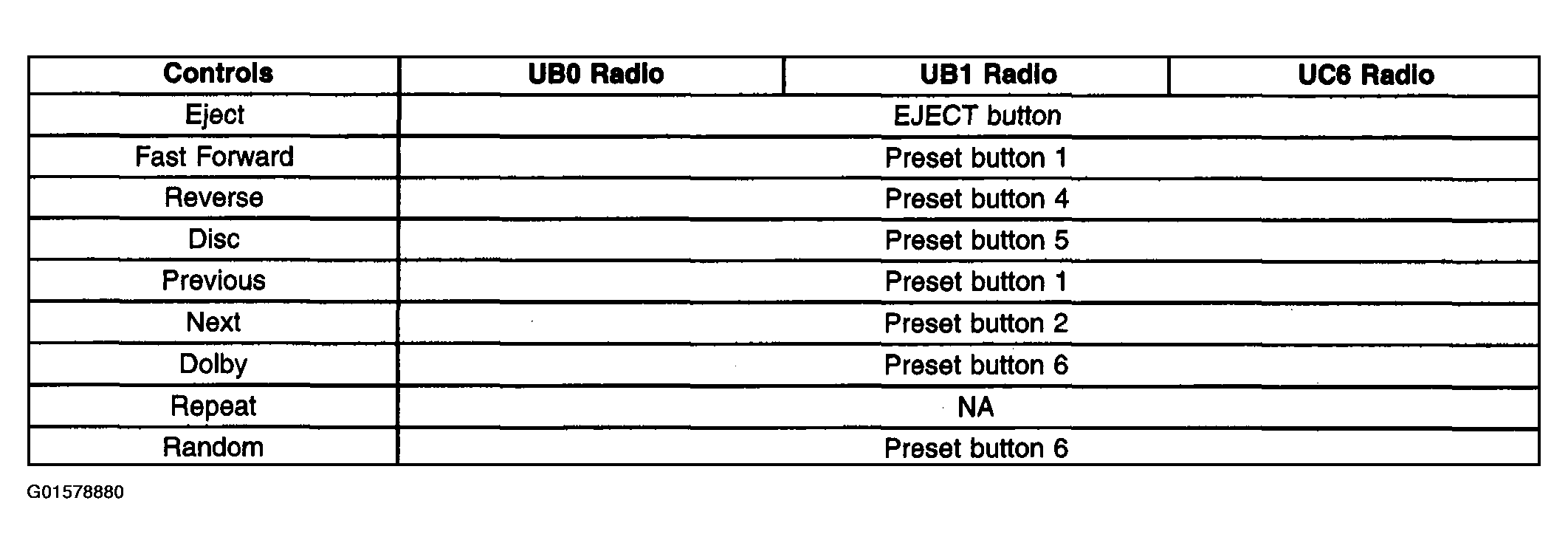

Fig 3: Compact Disc Features

Courtesy of GENERAL MOTORS CORP.

Each item in the list below represents topics covered in detail below.

AM/FM Reception
Voice Recorder (Travel Note)
Audio Amplifier
Theft Deterrent
Integral Multi Disc CD Changer (IMDX)
Remote Playback Device
Radio Data System (RDS)
Tape/CD Player Error Messages
Rear Seat Audio (RSA)
XM Satellite Radio
