Engine Electrical Connectors
WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

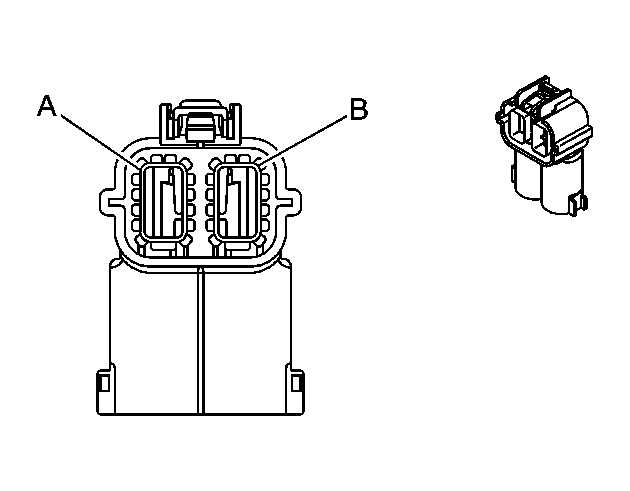

Auxiliary Battery Relay (TP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BN | 241 | Ignition 3 Voltage |
| B | BK | 550 | Ground |
Battery Cut Off Switch (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 1-BCO | Ground |
| 2 | WH | 2-BCO | BCO Status |
| 3 | WH | 3-BCO | BCO Control - A |
| 4 | WH | 4-BCO | BCO Control - B |
| 5 | WH | 5-BCO | Battery Positive Voltage |
Clutch Pedal Position (CPP) Switch
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PU | 420 | Cruise Control Release Signal |
| B | BN/WH | 379 | CPP Switch Signal |
| C | PK | 639 | Ignition 1 Voltage (GAS) |
| PK | 639 | Ground (Diesel M/T) | |
| D | D-GN | 1433 | Clutch Start Switch Signal |
| E | BN | 441 | Ignition 3 Voltage |
| F | GY | 48 | CPP Switch Signal |
Current Sensor (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 1-CS | Current Sensor Signal - A |
| 2 | WH | 2-CS | Current Sensor Signal - B |
| 3 | WH | 3-CS | Compensating Coil Voltage |
| 4 | WH | 4-CS | Low Reference |

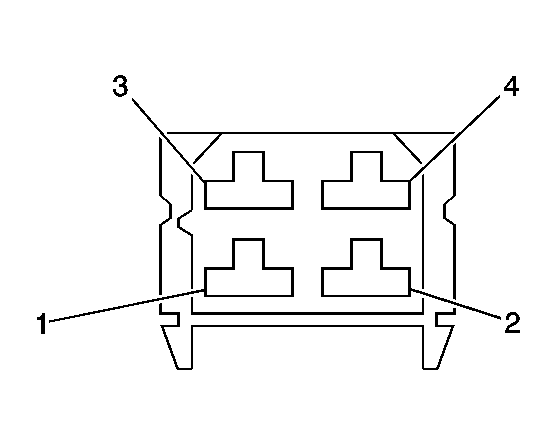

Energy Storage Box (ESB) Fan (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 1-FAN | Fan Speed Signal |
| 2 | WH | 2-FAN | Low Reference |
| 3 | - | - | Not Used |
| 4 | WH | 4-FAN | 5-Volt Reference |

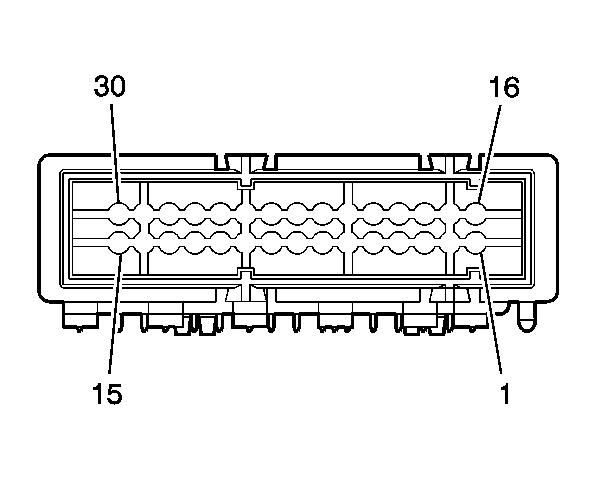

Energy Storage Control Module (ESCM) - C1 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 1-NTC-1 | Temperature Sensor Signal - 1 |
| 2 | WH | 1-NTC-2 | Temperature Sensor Signal - 2 |
| 3-7 | - | - | Not Used |
| 8 | WH | 2-BCO | BCO Control - A |
| 9 | WH | 4-BCO | BCO Control - B |
| 10 | WH | 2-BCO | BCO Status |
| 11 | WH | 1-BCO | Ground |
| 12 | WH | 2-CS | Current Sensor Signal - B |
| 13 | WH | 3-CS | Compensating Coil Voltage |
| 14 | WH | 5-BCO | Battery Positive Voltage |
| 15 | WH | 2-FAN | Low Reference |
| 16 | - | - | Not Used |
| 17 | WH | 2-NTC-2 | Low Reference |
| 18 | WH | 2-NTC-1 | Low Reference |
| 19 | WH | 2-NTC-3 | Low Reference |
| 20 | WH | 1-NTC-3 | Temperature Sensor Signal - 3 |
| 21 | WH | 1-R2 | Voltage Sensor Signal - 2 |
| 22 | - | - | Not Used |
| 23 | WH | 1-R1 | Voltage Sensor Signal - 1 |
| 24 | WH | 1-R4 | Voltage Sensor Signal - 4 |
| 25 | WH | 1-R3 | Voltage Sensor Signal - 3 |
| 26 | - | - | Not Used |
| 27 | WH | 1-CS | Current Sensor Signal - A |
| 28 | WH | 4-CS | Low Reference |
| 29 | WH | 4-FAN | 5-Volt Reference |
| 30 | WH | 1-FAN | Fan Speed Signal |
Energy Storage Control Module (ESCM) - C2 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1-14 | - | - | Not Used |
| 15 | WH | 1-CAR | High Speed GMLAN Serial Data (+) |
| 16-17 | - | - | Not Used |
| 18 | WH | 7-CAR | Ignition 1 Voltage |
| 19-23 | - | - | Not Used |
| 24 | WH | GND-CAR | Ground |
| 25-38 | - | - | Not Used |
| 39 | WH | 2-CAR | High Speed GMLAN Serial Data (-) |
| 40-41 | - | - | Not Used |
| 42 | WH | 8-CAR | Ignition 0 Voltage |
| 43-47 | - | - | Not Used |
| 48 | WH | 3-CAR | Battery Positive Voltage |

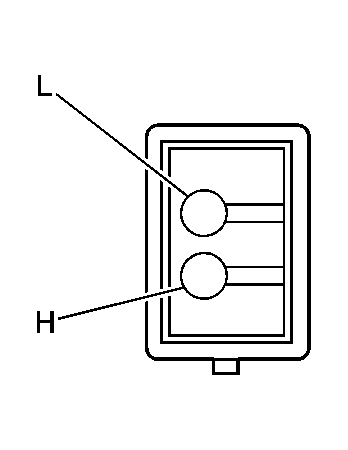

Energy Storage Control Module (ESCM) - C3 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| L-H | - | - | Not Used |
Generator - Gas (10 Series Except HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | BN | 25 | Charge Indicator Control |
| 2 | GY | 23 | Generator Field Duty Cycle Signal |
Generator - Gas (6.0L w/MT1)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | D-BU | 5668 | Engine On Signal (JC4) |
| - | - | Not Used | |
| B | BN | 25 | Charge Indicator Control |
| C | GY | 23 | Generator Field Duty Cycle Signal |
| D | - | - | Not Used |
Generator (20/30 Series)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | - | - | Unavailable |
| B | BN | 25 | Charge Indicator Control |
| C | GY | 23 | Generator Field Duty Cycle Signal |
| D | - | - | Unavailable |
Generator - Left (K65/8X5)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | - | - | Unavailable |
| B | BN | 2524 | Generator 2 Turn On Signal |
| C-D | - | - | Unavailable |
Generator - Right - Diesel
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | - | - | Unavailable |
| B | BN | 25 | Charge Indicator Control |
| C | GY | 23 | Generator Field Duty Cycle Signal |
| D | - | - | Unavailable |
Generator Battery Control Module - (10 Series Except HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | RD/WH | 4740 | Battery Positive Voltage |
| B | - | - | Not Used |
| C | RD/WH | 4740 | Battery Positive Voltage |
| D | BN | 25 | Charge Indicator Control |
| E | - | - | Not Used |
| F | BK/WH | 451 | Ground |
| G | D-BU | 5668 | Engine On Signal (JC4) |
| H | BK/WH | 451 | Ground |
| J | - | - | Not Used |
| K | OG/BK | 6752 | Class 2 Serial Data |

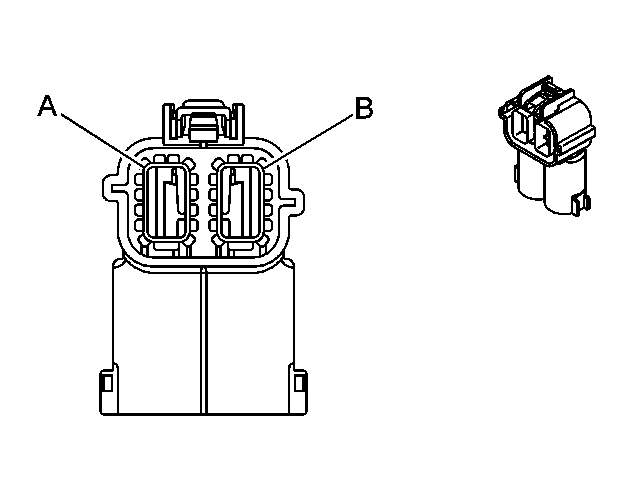

Hood Ajar Switch (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK/BK | 109 | Hood Ajar Switch Signal |
| B | OG/BK | 1057 | Low Reference |
Hybrid Control Module (HCM) (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | OG | 1940 | Battery Positive Voltage |
| 2 | PK | 1020 | Ignition 0 Voltage |
| 3-7 | - | - | Not Used |
| 8 | PK/BK | 109 | Hood Ajar Switch Signal |
| 9 | PU | 5681 | APO Switch Signal |
| 10-11 | - | - | Not Used |
| 12 | PK | 1939 | Ignition 1 Voltage |
| 13-27 | - | - | Not Used |
| 28 | PU/WH | 5687 | Class 2 Serial Data |
| 29 | BK/WH | 451 | Ground |
| 30-33 | - | - | Not Used |
| 34 | OG/BK | 1057 | Low Reference |
| 35-39 | - | - | Not Used |
| 40 | TN/WH | 2500 | High Speed GMLAN Serial Data (+) |
| 41 | TN | 2501 | High Speed GMLAN Serial Data (-) |
| 42 | - | - | Not Used |
| 43 | BK/WH | 451 | Ground |
| 44 | - | - | Not Used |
| 45 | YE | 5680 | APO Switch Indicator Control |
| 46-47 | - | - | Not Used |
| 48 | PK/WH | 5537 | Transmission Pump Relay Control |
| 49 | PU/WH | 5539 | Power Maintain Relay Coil Control |
| 50 | - | - | Not Used |
| 51 | WH | 5542 | Auxiliary Heater Pump Relay Control |
| 52 | BN/WH | 5682 | Low Reference |
| 53 | - | - | Not Used |
| 54 | TN/WH | 2500 | High Speed GMLAN Serial Data (+) |
| 55 | TN | 2501 | High Speed GMLAN Serial Data (-) |
| 56 | - | - | Not Used |
Starter/Generator Control Module SGCM - C1 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A-B | - | - | Not Used |
Starter/Generator Control Module SGCM - C2 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 50 | Ground |
| B | RD | 102 | Battery Positive Voltage |
Starter/Generator Control Module SGCM - C3 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | RD | 5084 | High Voltage Battery (+) |
| B | BK | 5691 | High Voltage Battery (-) |
Starter/Generator Control Module SGCM - C4 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | TN/WH | 2500 | High Speed GMLAN Serial Data (+) |
| 2 | TN/WH | 2500 | High Speed GMLAN Serial Data (+) |
| 3-6 | - | - | Not Used |
| 7 | YE/BK | 625 | Starter Enable Relay Control |
| 8 | PK | 1020 | Ignition 0 Voltage |
| 9 | L-BU/BK | 647 | Medium Resolution Engine Speed Signal |
| 10-11 | - | - | Not Used |
| 12 | WH | 2368 | Cooling Fan Clutch Supply Voltage |
| 13 | TN | 2501 | High Speed GMLAN Serial Data (-) |
| 14 | TN | 2501 | High Speed GMLAN Serial Data (-) |
| 15-20 | - | - | Not Used |
| 21 | WH | 121 | Engine Speed Signal |
| 22-23 | - | - | Not Used |
| 24 | PK | 2014 | Coolant Pump Relay Control |

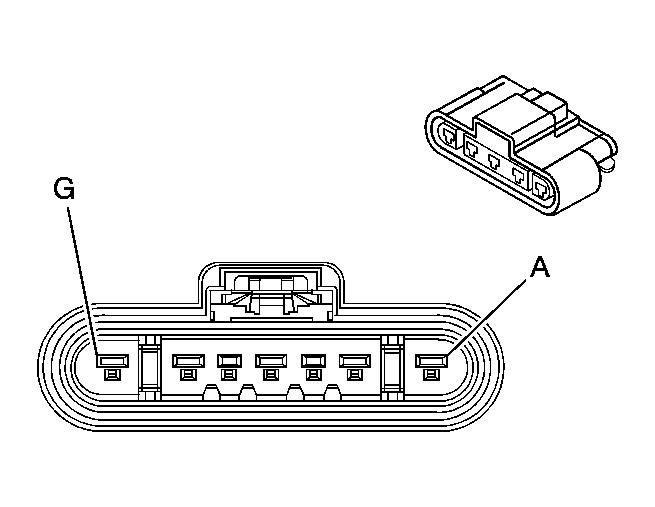

Starter/Generator Control Module SGCM - C5 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | - | - | Not Used |
| B | WH | 5685 | APO Neutral |
| C | OG | 5595 | High Voltage Interlock Loop Signal - 2 |
| D | BK | 50 | Ground |
| E | PU | 5087 | High Voltage Interlock Loop Signal - 1 |
| F | D-GN | 5686 | Ground |
| G | BK | 5683 | APO Phase A |

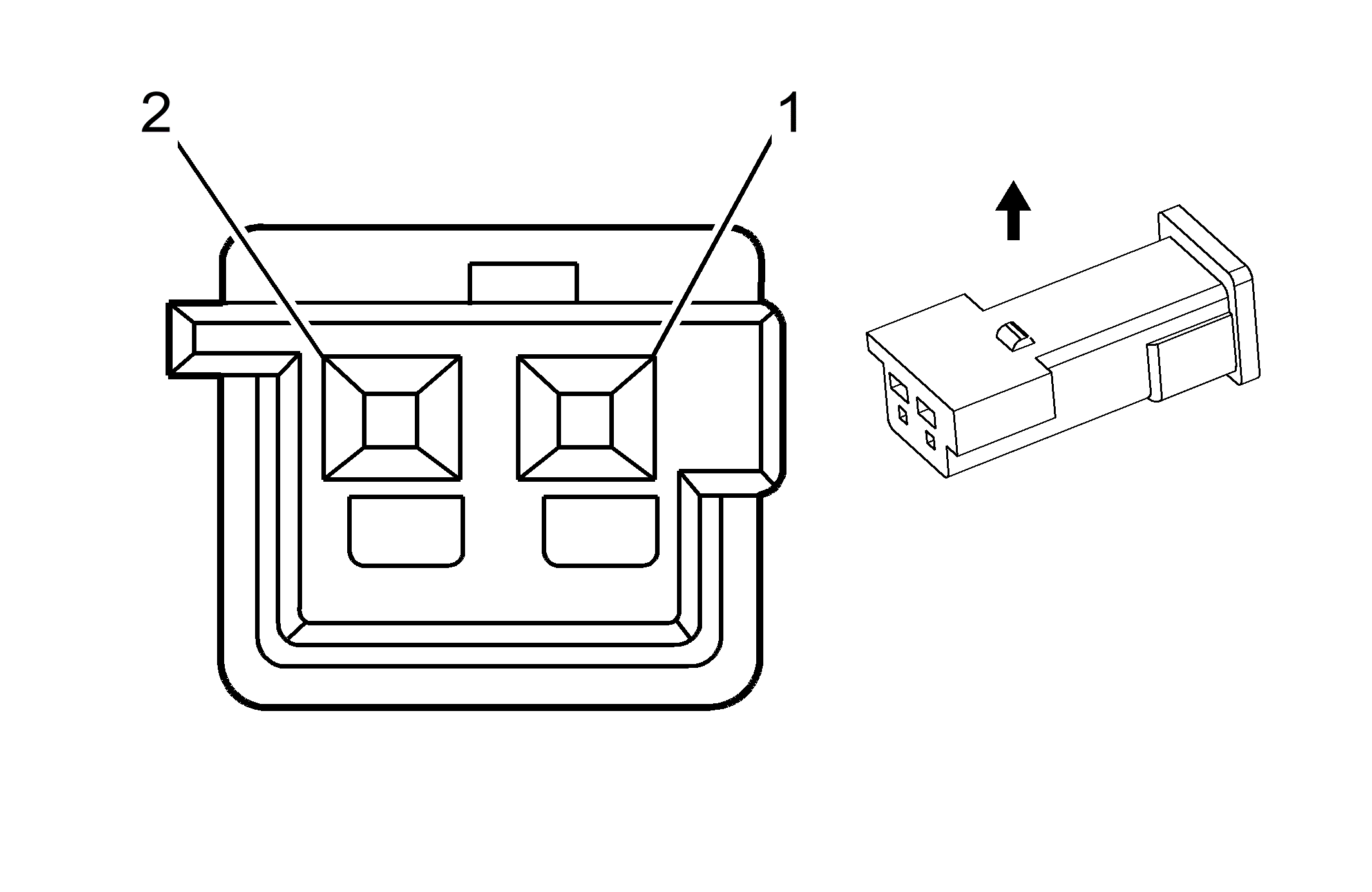

Temperature Sensor - Battery 1 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 1-NTC-1 | Temperature Sensor Signal - 1 |
| 2 | WH | 2-NTC-1 | Low Reference |
Temperature Sensor - Battery 2 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 1-NTC-2 | Temperature Sensor Signal - 2 |
| 2 | WH | 2-NTC-2 | Low Reference |
Temperature Sensor - Battery 3 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 1-NTC-3 | Temperature Sensor Signal - 3 |
| 2 | WH | 2-NTC-3 | Low Reference |

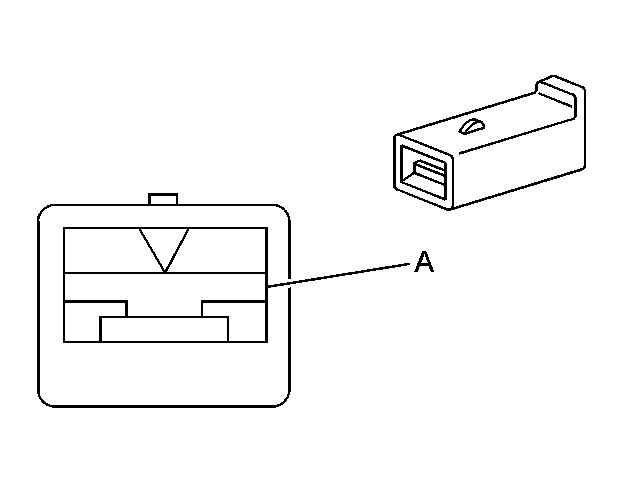

Voltage Sensor - 1 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | WH | 1-R1 | Voltage Sensor Signal - 1 |
Voltage Sensor - 2 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | WH | 1-R2 | Voltage Sensor Signal - 2 |
Voltage Sensor - 3 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | WH | 1-R3 | Voltage Sensor Signal - 3 |
Voltage Sensor - 4 (HP2)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | WH | 1-R4 | Voltage Sensor Signal - 4 |
