Installation Procedure

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the temperature sensor (2) to the ESB battery.

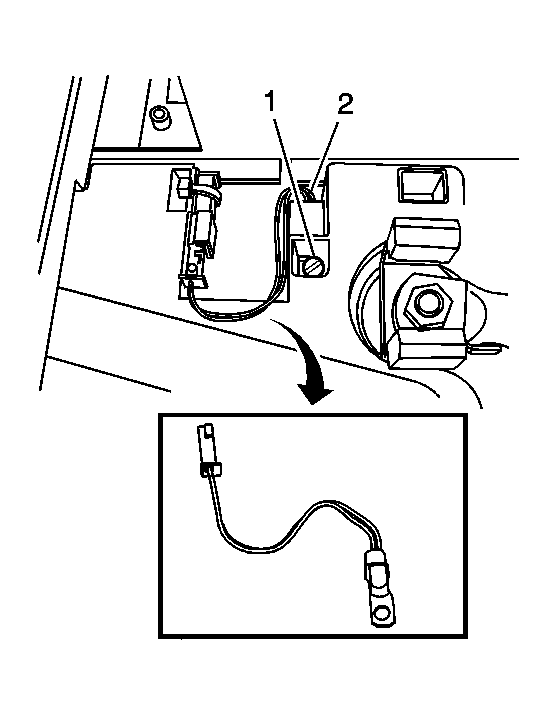

    Fig 1: View Of Temperature Sensor & Screw (5.3L Engine w/RPO HP2)
    GM893299Courtesy of GENERAL MOTORS CORP.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the temperature sensor screw (1).

    Tighten:  Tighten the screw to 0.5 N.m (4.4 lb in).

  3. Connect the temperature sensor electrical connector.
  4. Install a NEW tie strap.
  5. Install the ESB intermediate cover. Refer to Energy Storage Box (ESB) Intermediate Cover Replacement (5.3L Engine w/RPO HP2) .
