Removal Procedure

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the energy storage box (ESB). Refer to Energy Storage Box (ESB) Service Disconnect/Connect (5.3L Engine w/RPO HP2) .
  2. Remove the ESB intermediate cover. Refer to Energy Storage Box (ESB) Intermediate Cover Replacement (5.3L Engine w/RPO HP2) .
  3. Remove the control module nuts.

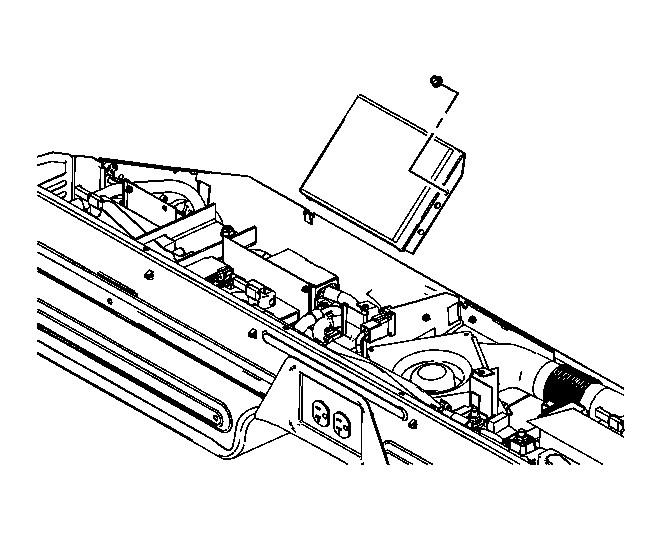

    Fig 1: View Of Energy Storage Control Module (5.3L Engine w/RPO HP2)
    GM1403618Courtesy of GENERAL MOTORS CORP.
  4. Lift the control module up off of the studs.
  5. Disconnect the control module electrical connectors.
  6. Remove the control module.
