Installation Procedure

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the HCM to the PCM cover.

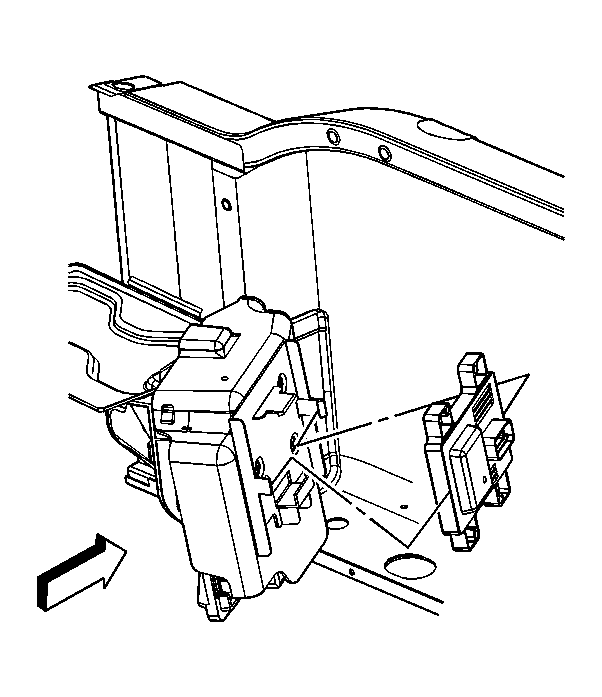

    Fig 1: Installing HCM To PCM Cover
    GM1480466Courtesy of GENERAL MOTORS CORP.
  2. Connect the HCM electrical connector.
    1. Install the electrical connector.
    2. Slide the gray lever rearward completely until it locks.
  3. Connect the ESB. Refer to Energy Storage Box (ESB) Service Disconnect/Connect (5.3L Engine w/RPO HP2) .
  4. Program the HCM. Refer to Service Programming System (SPS) in Vehicle Control Systems.
