Power Outlet Component Views

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

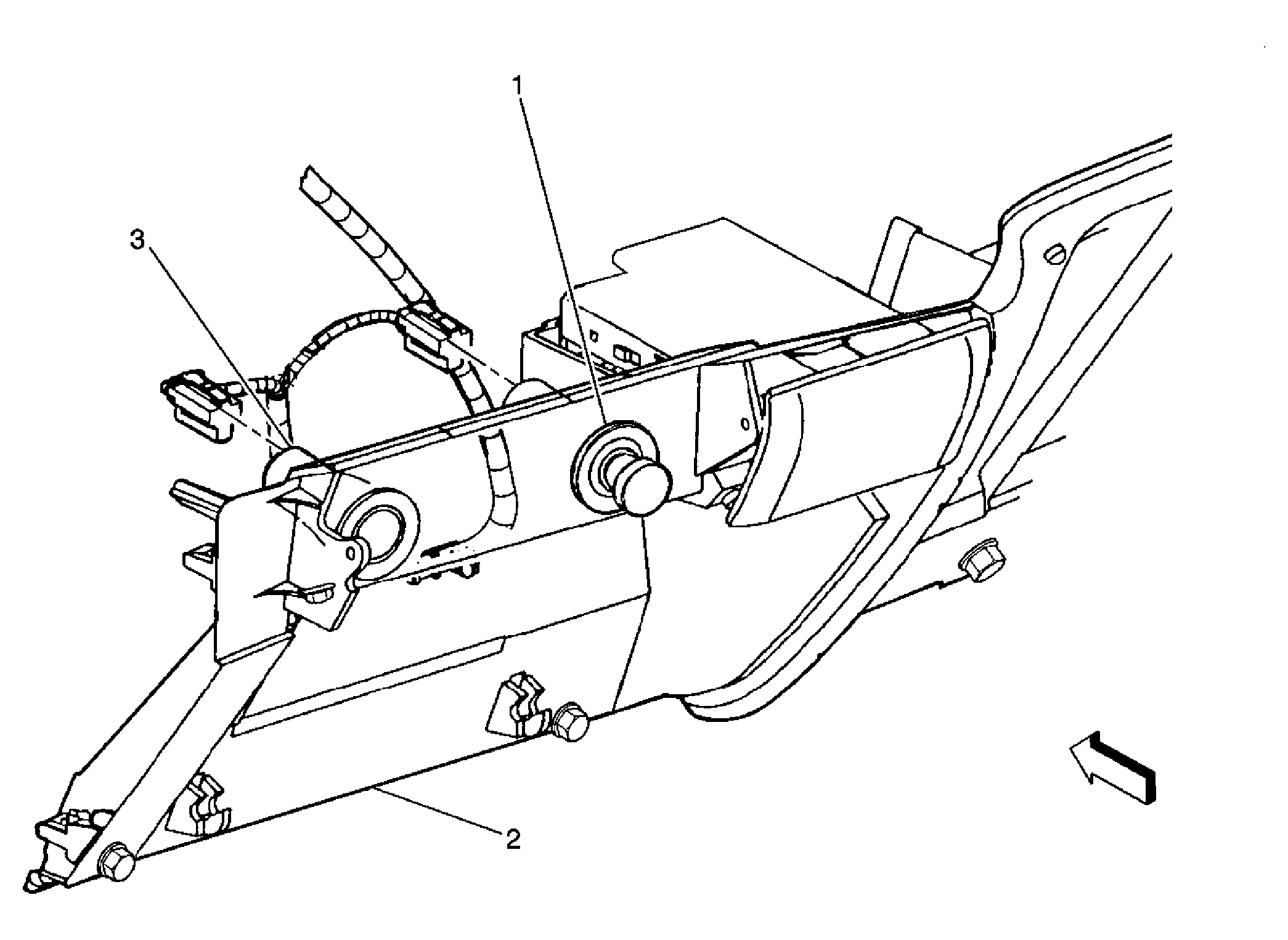

Fig 1: Cigar Lighter and Auxiliary Power Outlet - Front (Except UQ7 and Y91)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Cigar Lighter
2	Instrument Panel
3	Auxiliary Power Outlet - Front

Fig 2: Identifying Console Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Auxiliary Power Outlet - Front Connector
2	S333
3	S307
4	S303
5	Rear Seat Audio (RSA) Controller Connector
6	Auxiliary Power Outlet - Console Connector
7	Audio Amplifier Connector C2 (UQ7)
8	Audio Amplifier Connector C1 (UQ7)
9	Cigar Lighter
10	C306
11	Noise Compensation Microphone (UQ7 w/Y91)
12	Speaker - Subwoofer Connector
13	Speaker - Subwoofer (UQ7)

Fig 3: Multifunction Accessory Switch (HP2)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Auxiliary Power Outlet Switch (HP2)

Fig 4: Component Views - Below Rear Seat (HP2)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	Auxiliary Power Outlet 120-Volt AC - Interior (HP2)
2	Energy Storage Box (ESB)

Fig 5: Component Views - Right Rear Corner of Bed (HP2)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	Auxiliary Power Outlet 120-Volt AC - Exterior (HP2)
