Power Outlet Connector End Views

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

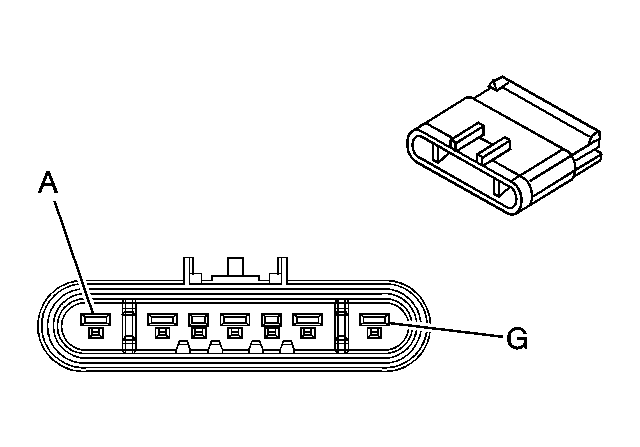

Auxiliary Power Outlet 120-Volt AC - Exterior (HP2)

GM1391787Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15416865
  • 7-Way F GT 280/150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B WH 5685 APO Neutral
C OG 5595 High Voltage Interlock Loop Signal - 2
D BK 50 Ground
E YE 5690 High Voltage Interlock Loop Signal - 3
F D-GN 5686 Ground
G BK 5683 APO Phase A
Auxiliary Power Outlet 120-Volt AC - Interior (HP2)

GM1391787Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15416865
  • 7-Way F GT 280/150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B WH 5685 APO Neutral
C OG 5595 High Voltage Interlock Loop Signal - 2
D - - Not Used
E PU 5087 High Voltage Interlock Loop Signal - 1
F D-GN 5686 Ground
G BK 5683 APO Phase A
Auxiliary Power Outlet - Bin (Y91)

GM320518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176446
  • 3-Way F Metri-Pack 280 Series Flexlock (BK)
Pin Wire Color Circuit No. Function
A OG 1040 Battery Positive Voltage
B - - Not Used
C BK 1050 Ground
Auxiliary Power Outlet - Console (UQ7)

GM320518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176446
  • 3-Way F Metri-Pack 280 Series Flexlock (BK)
Pin Wire Color Circuit No. Function
A OG 1040 Battery Positive Voltage
B - - Not Used
C BK 1050 Ground
Auxiliary Power Outlet - Front (Except Z75)

GM320518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176446
  • 3-Way F Metri-Pack 280 Series Flexlock (BK)
Pin Wire Color Circuit No. Function
A OG 1040 Battery Positive Voltage
B - - Not Used
C BK 1050 Ground
Auxiliary Power Outlet Switch (HP2)

GM304345Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12177195
  • 6-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BN/WH 5682 Low Reference
B BK 1050 Ground
C YE 5680 APO Switch Indicator Control
D PK 1639 Ignition 1 Voltage
E BN/WH 230 Instrument Panel Lamps Dimming Control
F PU 5681 APO Switch Signal
Cigar Lighter (Y91 or UQ3/UQ5)

GM365964Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176445
  • 3-Way F Metri-Pack 280 Series Flexlock (NA)
Pin Wire Color Circuit No. Function
A OG 640 Battery Positive Voltage
B - - Not Used
C BK 1050 Ground
Cigar Lighter (YE9 w/UQ7)

GM362748Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12176836
  • 3-Way F Metri-Pack 280 Series (GY)
Pin Wire Color Circuit No. Function
A OG 640 Battery Positive Voltage
B - - Not Used
C BK 1050 Ground
