Power Take-Off (PTO) Connector End Views
WARNING: This page is about a different car, the 2006 GMC Sierra and 2006 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Power Take Off (PTO) Relay
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 30 | OG | 3440 | Battery Positive Voltage |
| 85 | L-GN | 488 | Power Take Off Switch - Output - Enable |
| 86 | PU | 2562 | PTO Engage |
| 87 | WH | 2561 | PTO Signal |

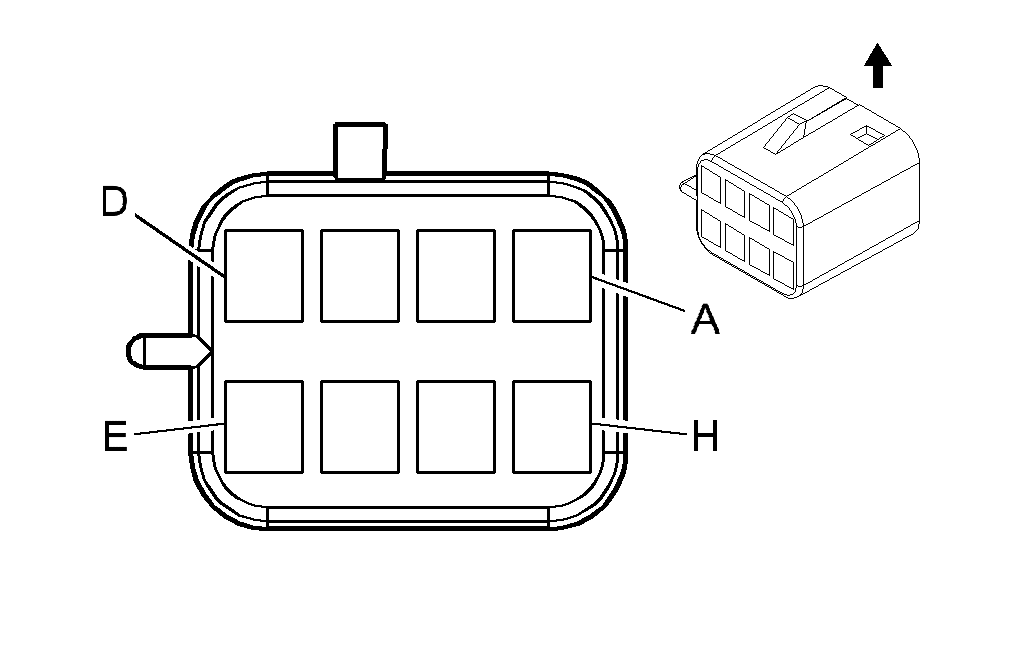

Power Take Off (PTO) Switch
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BN | 41 | Ignition 3 Voltage |
| B | L-GN | 488 | Power Take Off Switch - Output - Enable |
| C | GY | 8 | Instrument Panel Lamp Supply Voltage - 1 |
| D | GY | 397 | Cruise Control On Switch Signal |
| E | YE | 2522 | PTO Status Signal |
| F | BK | 1850 | Ground |
| G | D-BU | 84 | Cruise Control Set/Coast Switch Signal |
| H | PU/WH | 1382 | LED Dimming Signal |
